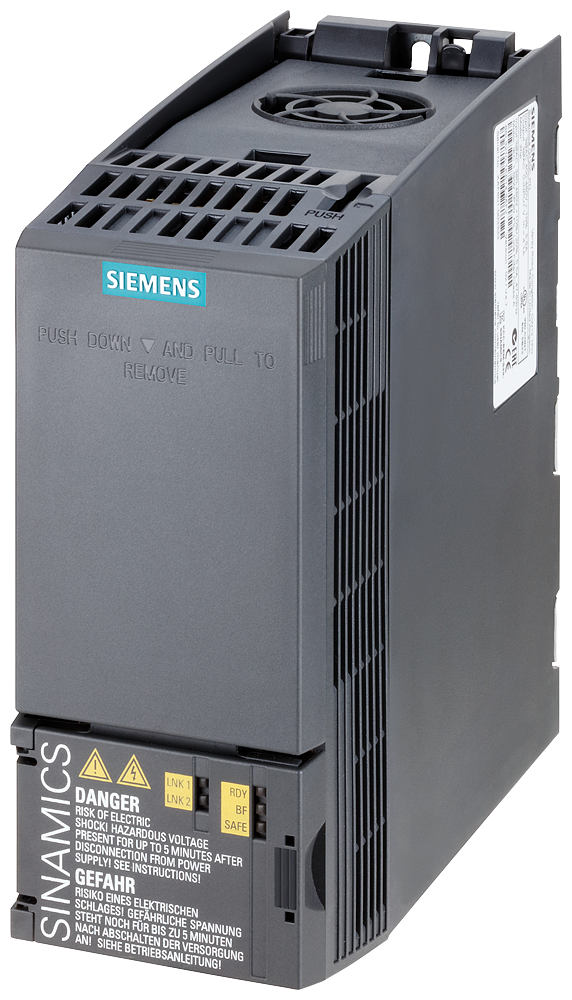

Siemens Sinamics G120C Rated Power 0,55kW WITH 150% Overload FOR 3 SEC 3AC380-480V FSAA 173X73X178(HXWXD) External 24V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3210-1KE11-8AF2 SINAMICS G120C RATED POWER 0,55KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V FSAA 173X73X178(HXWXD) EXTERNAL 24V.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE11-8AF2
- EAN / GTIN
- 4042948668641
- Sales unit
- pcs
- Voltage
- 24 V
- Power
- 0.55 kW
- Dimensions
- 173×73×178
- Width
- 73 mm
- Height
- 173 mm
- Depth
- 160 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 0.37 kW
- Max. output at quadratic load at rated output voltage
- 0.55 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- Yes
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 1.8 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
