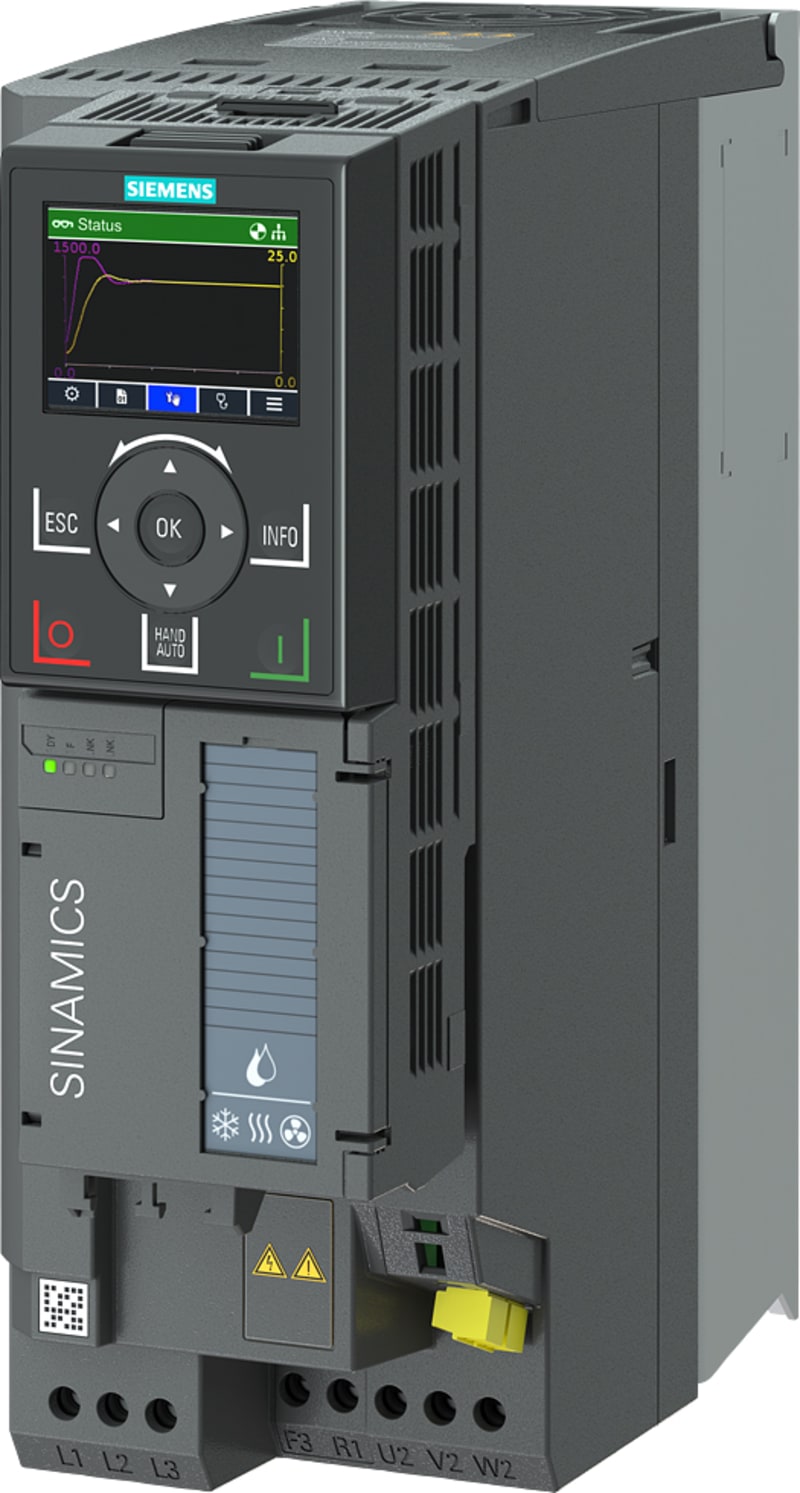

Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC18-0UP0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3220-3YC18-0UP0 Variable-frequency drive for pump- and fan drive.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3220-3YC18-0UP0
- EAN / GTIN
- 4042948703908
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 100 mm
- Height
- 275 mm
- Depth
- 209 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces serial TTY
- 5
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- No
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 2.2 kW
- Max. output at quadratic load at rated output voltage
- 3 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Nominal output current I2N
- 14.1 A
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948703908
- SAP 1200459229
- Code 82520238
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7972-0AA02-0XA0
Siemens
Siemens 3SU1900-0AN10-0AA0 SIRIUS ACT Label Holder 22 mm, 12.5 x 27 mm
Siemens
Siemens SIRIUS AS-Interface module 3RK1308-0BB00-0CP0
Siemens
Siemens Residual current circuit breaker with overcurrent, 2P, 6A, Type A 30MA, C-Curve, 2MW, Icn=10KA, conductor cross-section 35 mm², torque 2Nm
5SU1324-7FP06
Siemens
Siemens Reversing Starter, 3 - 12 A, 90 mm Wide, Spring Clamp Connection (3RA6250-2DB34)
Siemens
Siemens SIMATIC S7 automation module 6ES7193-6LA10-0AA0
Siemens
Siemens 3RU2136-4GB0 SIRIUS Thermal Overload Relay, Size S2
Siemens
Siemens SIMATIC S7-1200 G2 CPU 1214FC, DC/DC/DC, 14DI/10DQ
6ES7214-1AF50-0XB0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6SL3220-3YC18-0UP0?
- 6SL3220-3YC18-0UP0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6SL3220-3YC18-0UP0.
- What is the HS code for 6SL3220-3YC18-0UP0?
- The customs tariff (HS) code for 6SL3220-3YC18-0UP0 is 8504.40.
- Who manufactures 6SL3220-3YC18-0UP0?
- 6SL3220-3YC18-0UP0 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 6SL3220-3YC18-0UP0?
- Yes — the 6SL3220-3YC18-0UP0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6SL3220-3YC18-0UP0?
- The minimum order quantity is 1.
- Is 6SL3220-3YC18-0UP0 available?
- Yes — 6SL3220-3YC18-0UP0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
