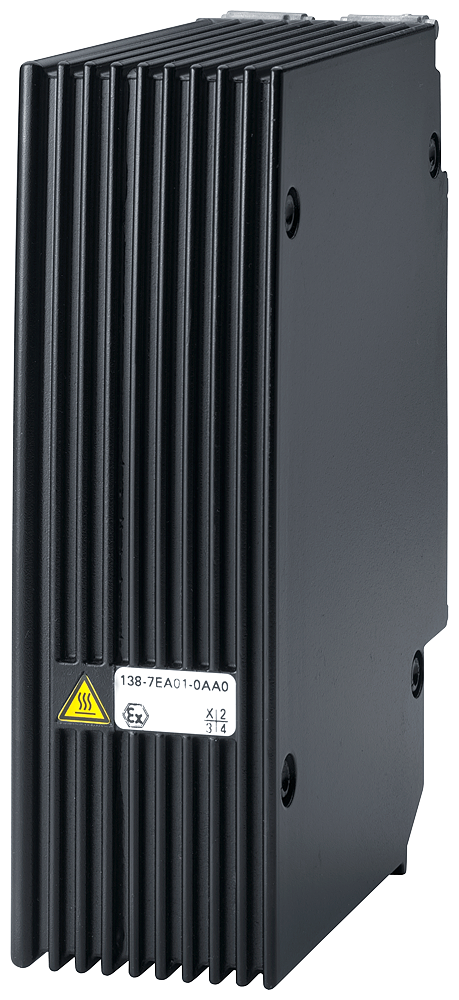

Siemens SIMATIC, power supply module 24 V DC for ET200ISP, Ex db eb [ib] IIC T4 Gb, Ex db eb [ib] I Mb

Siemens 6ES7138-7EA01-0AA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform.

Manufacturer part number (MPN)

6ES7138-7EA01-0AA0

EAN / GTIN

4019169142915

Sales unit

pcs

Product type designation

PS 24 V DC

Redundancy — Redundancy capability

Yes

Type of supply voltage

DC

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

30 V

Reverse polarity protection

Yes

External protection for power supply lines (recommendation)

protection with 6 A miniature circuit breaker and tripping characteristic C (per ET 200iSP station)

Mains buffering — bridging time for backplane bus, min.

0.25 ms

Mains buffering — buffering time for powerbus, min.

0.25 ms

Mains buffering — buffering time for IM 152 CPU, min.

15 ms

From supply voltage L+, max.

4 A

Type of output voltage

DC

Current output, max.

5 A

Horizontal installation — up to 70 °C, max.

5 A

Vertical installation — up to 50 °C, max.

5 A

Power loss, typ.

20 W; for more information on power loss, see "Limitation of connectable electronic modules" section

Status indicator

Yes

Alarms

No

Diagnoses — Diagnostic information readable

Yes; via IM 152

Diagnostics indication LED — Group error SF (red)

No

Primary/secondary

Yes

Between supply voltage and electronics

Yes

Tested with — between supply voltage and output voltage

600 V DC

IP degree of protection

IP30

CE mark

CE 0344

UKCA mark

DEKRA 21UKEX0027 Importer UK: Siemens plc Manchester M20 2UR

CULus

LISTED E334384

FM approval

CLASSIFIED 3025852

BIS

Yes

Suitable for safety functions

Yes

INMETRO certificate

UL-BR 12.0051

Reference designation according to IEC 81346-2 (2009)

K

Use in hazardous areas — ATEX marking

II 2 G Ex db eb [ib] IIC T4 Gb I M2 Ex db eb [ib] I Mb

Use in hazardous areas — ATEX certificate

KEMA 04 ATEX 2263

Use in hazardous areas — IECEx

IECEx KEM 05.0004

Use in hazardous areas — CCC Ex

2020322310002880

Use in hazardous areas — EAC Ex

1Ex d e [ib] IIC T4 Gb PII Ex d e [ib Mb] I Mc

Use in hazardous areas — FM marking

Class I, Zone 1 AEx d e [ib] IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 DIP, Class II, III, GP. E,F,G

Use in hazardous areas — Explosion protection category for gas

ATEX gas explosion protection, Zone 1

Use in hazardous areas — Explosion protection category for dust

ATEX dust explosion protection, Zone 21 always install in corresponding enclosure

Use in hazardous areas — associated equipment (Ex ia)

No

Use in hazardous areas — associated equipment (Ex ib)

Yes

Marine approval — Germanischer Lloyd (GL)

Yes

Marine approval — American Bureau of Shipping (ABS)

Yes

Marine approval — Bureau Veritas (BV)

Yes

Marine approval — It Norske Veritas (DNV)

Yes

Ambient temperature during operation — min.

-20 °C

Ambient temperature during operation — max.

70 °C

Dimensions — Width

60 mm

Dimensions — Height

190 mm

Dimensions — Depth

136.5 mm

Weight, approx.

2 700 g

Width

60 mm

Height

190 mm

Depth

136.5 mm

Type of voltage (input voltage)

DC

Output voltage DC

19.2 V

Max. output current DC

5 A

Max. input current DC

4 A

Country of origin

Germany

HS Code

8504.40
