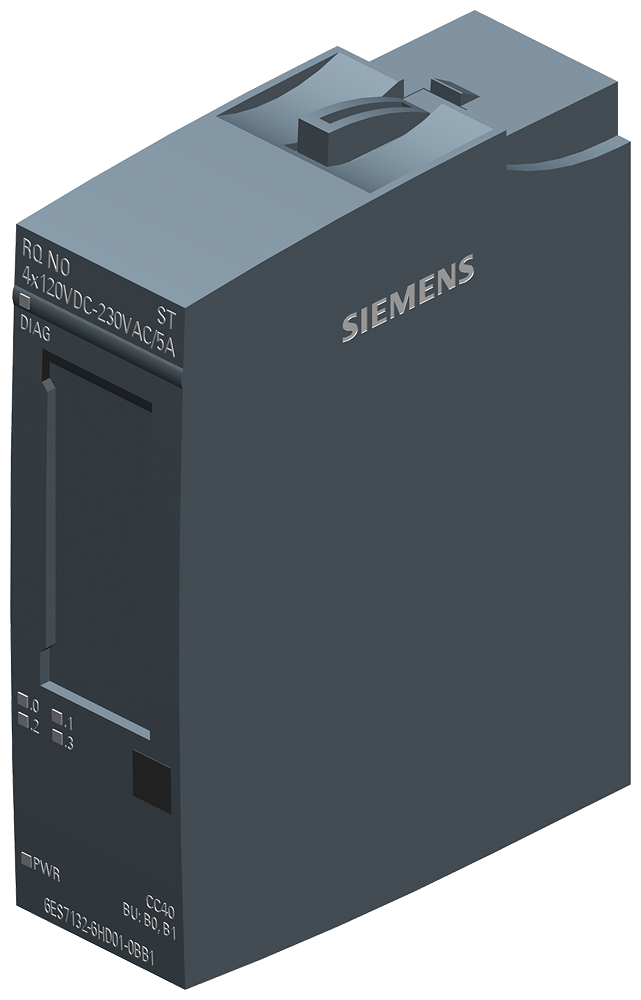

Siemens SIMATIC ET 200SP RQ NO 4X120VDC..230VAC/5A

Siemens 6ES7132-6HD01-2BB1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Relay Module normally open, RQ 4X120VDC.230VAC/5A standard packaging unit: 10 pcs.

Manufacturer part number (MPN)

6ES7132-6HD01-2BB1

EAN / GTIN

4047623408734

Sales unit

pcs

Package quantity

10 pcs

Product type designation

RQ 4x120 VDC ... 230 VAC/5 A NO ST

HW functional status

From FS02

Firmware version

V0.0

Usable BaseUnits

BU type B0, B1

Color code for module-specific color-coded label

CC40

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PCS 7 configurable/integrated from version

V8.1 SP1

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

55 mA; without load

Rated value (AC)

230 V

Power loss, typ.

1.5 W

Address space per module — Inputs

+ 1 byte for QI information

Address space per module — Outputs

1 byte

Selection of BaseUnit for connection variants — 2-wire connection

BU type B1

Selection of BaseUnit for connection variants — 3-wire connection

BU type B0

Type of digital output

Relays

Number of digital outputs

4

Switching frequency — with resistive load, max.

2 Hz

Switching frequency — with inductive load, max.

0.5 Hz

Switching frequency — on lamp load, max.

2 Hz

Total current of the outputs — Current per channel, max.

5 A

Total current of the outputs — Current per module, max.

20 A

Horizontal installation — up to 50 °C, max.

20 A

Horizontal installation — up to 60 °C, max.

16 A

Vertical installation — up to 40 °C, max.

20 A

Vertical installation — up to 50 °C, max.

16 A

Relay outputs — Number of relay outputs

4

Relay outputs — Rated supply voltage of relay coil L+ (DC)

24 V

Relay outputs — Current consumption of relays (coil current of all relays), max.

40 mA

Relay outputs — external protection for relay outputs

Yes, with 6A

Relay outputs — Number of operating cycles, max.

7 000 000; see additional description in the manual

Switching capacity of contacts — with inductive load, max.

2 A; see additional description in the manual

Switching capacity of contacts — with resistive load, max.

5 A; see additional description in the manual

Switching capacity of contacts — Thermal continuous current, max.

5 A; Max. 1 385 VA, 150 W

Switching capacity of contacts — Switching current, min.

100 mA; 5 V DC

Switching capacity of contacts — Rated switching voltage (DC)

24 V DC to 120 V DC

Switching capacity of contacts — Rated switching voltage (AC)

24V AC to 230V AC

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

200 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Between channels and backplane bus/supply voltage

240 V AC

Isolation tested with

2 500 V DC (type test)

Tested with — between channels and backplane bus/supply voltage

2 500 V DC

Tested with — between backplane bus and supply voltage

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

2 000 m; On request: Installation altitudes greater than 2 000 m

Dimensions — Width

20 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

40 g

Supporting protocol for EtherCAT

Yes

Supply voltage AC 50 Hz

230 V

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Type of voltage (input voltage)

DC

Permitted voltage at output

20.4–264 V

Type of output voltage

AC/DC

Supporting protocol for PROFIBUS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

20 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
