Siemens Sinamics G120C PN 3AC 400V 3,0kW with integrated filter kl
Pricing
Request a quote
We reply within 24 hours
Product Description

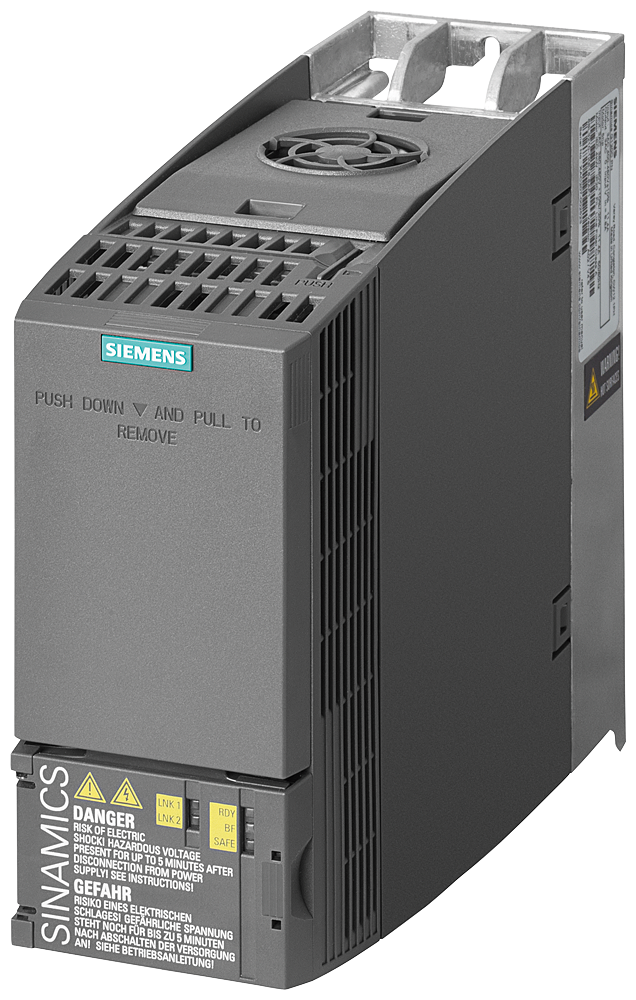

Siemens 6SL3210-1KE17-5AF1 Sinamics G120C PN 3AC 400V 3,0kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE17-5AF1
- EAN / GTIN
- 4042948663820
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 3.0 kW
- Width
- 73 mm
- Height
- 196 mm
- Depth
- 225 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 2.2 kW
- Max. output at quadratic load at rated output voltage
- 3 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 7.5 A
- Supporting protocol for BACnet
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948663820
- SAP 1000350802
- Code 81126989
Product Documentation
More from Siemens
Siemens
Siemens SCALANCE X, SFP992-1LH+
6GK5992-1AP00-8AA0
Siemens
Siemens SIRIUS 3RP25 Time relay -Multi-function 3RP2505-1AB30
Siemens
Siemens S10 contactor, 132KW/400V/AC-3 3RT1065-6NB36
Siemens
Siemens SIMATIC ET 200SP AI 2XU Standard
6ES7134-6FB00-0BA1
Siemens
Siemens LOGO! DM8 24 expansion module, PS/I/O: 24V/24V/trans., 4 DI/4 DO for LOGO! 8
6ED1055-1CB00-0BA2
Siemens
Siemens Neozed Fuse 400V Gl, Size D01, 6A
5SE2306
Siemens
Siemens Residual current circuit breaker with overcurrent, 3P, 13A, Type A 30MA, B-Curve, 6 kA, Un: 400V only, conductor cross-section 35 mm², torque 2Nm
5SU1336-6FP13
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YC34-0UB0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6SL3210-1KE17-5AF1?
- 6SL3210-1KE17-5AF1 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6SL3210-1KE17-5AF1.
- What is the HS code for 6SL3210-1KE17-5AF1?
- The customs tariff (HS) code for 6SL3210-1KE17-5AF1 is 8504.40.
- Who manufactures 6SL3210-1KE17-5AF1?
- 6SL3210-1KE17-5AF1 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 6SL3210-1KE17-5AF1?
- Yes — the 6SL3210-1KE17-5AF1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6SL3210-1KE17-5AF1?
- The minimum order quantity is 1.
- Is 6SL3210-1KE17-5AF1 available?
- Yes — 6SL3210-1KE17-5AF1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
