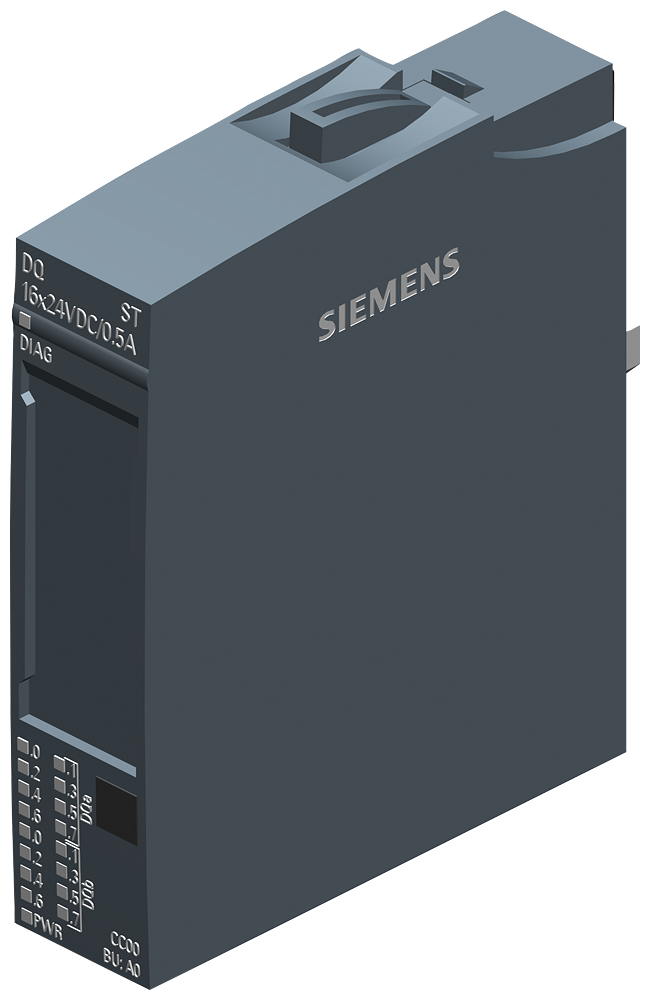

Siemens SIMATIC ET 200SP DQ 16X 24V DC/0,5A ST

Siemens 6ES7132-6BH01-2BA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital output module, DQ 16X24VDC/0.5A Standard, Packaging unit: 10 pcs.

Manufacturer part number (MPN)

6ES7132-6BH01-2BA0

EAN / GTIN

4047623408581

Sales unit

pcs

Package quantity

10 pcs

Product type designation

DQ 16x24VDC/0.5 ST

HW functional status

from FS21

Firmware version

V0.0

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC00

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

STEP 7 TIA V14 with HSP0222 / integrated as of TIA V15

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 with HSP0230 V7.0 / integrated as of V5.6 SP1

Engineering with — PCS 7 configurable/integrated from version

V8.1 SP1

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

30 mA; without load

Power loss, typ.

1 W

Address space per module — Address space per module, max.

2 byte; + 2 bytes for QI information

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0 with AUX terminals or potential distributor module

Selection of BaseUnit for connection variants — 3-wire connection

BU type A0 with AUX terminals or potential distributor module

Type of digital output

Source output (PNP, current-sourcing)

Number of digital outputs

16

Short-circuit protection

Yes; Electronic

Short-circuit protection — Response threshold, typ.

1 A; 0.7 to 1.3 A

Limitation of inductive shutdown voltage to

Typ. L+ (-50 V)

Switching capacity of the outputs — with resistive load, max.

0.5 A

Switching capacity of the outputs — with inductive load, max.

0.5 A

Switching capacity of the outputs — on lamp load, max.

5 W

Load resistance range — lower limit

48 Ω

Load resistance range — upper limit

12 kΩ

Output current — for signal "1" rated value

0.5 A

Output current — for signal "1" permissible range, max.

0.5 A

Output current — for signal "0" residual current, max.

0.1 mA

Output delay with resistive load — "0" to "1", typ.

50 µs

Output delay with resistive load — "1" to "0", typ.

100 µs

Switching frequency — with resistive load, max.

100 Hz

Switching frequency — with inductive load, max.

0.1 Hz; higher frequencies are possible, see Equipment Manual "Maximum permitted switching frequency of inductive loads"

Switching frequency — on lamp load, max.

10 Hz

Total current of the outputs — Current per channel, max.

0.5 A

Total current of the outputs — Current per module, max.

8 A; see Equipment Manual "Derating curve"

Horizontal installation — up to 40 °C, max.

8 A

Horizontal installation — up to 50 °C, max.

6 A

Horizontal installation — up to 60 °C, max.

4 A

Vertical installation — up to 30 °C, max.

8 A

Vertical installation — up to 40 °C, max.

6 A

Vertical installation — up to 50 °C, max.

4 A

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

30 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Type of voltage (input voltage)

DC

Output current

0.5 A

Permitted voltage at output

19.2–28.8 V

Type of output voltage

DC

Supporting protocol for PROFIBUS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

SIL according to IEC 61508

2

Performance level according to EN ISO 13849-1

Level d

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
