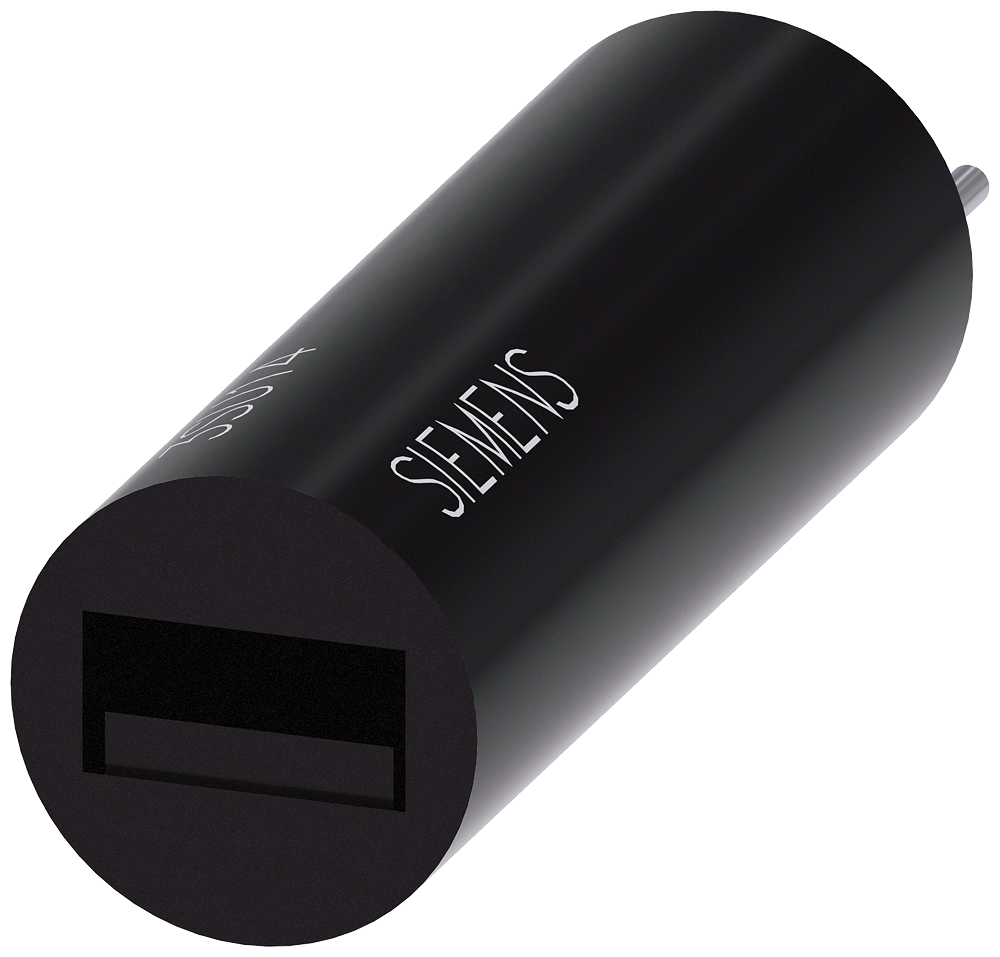

Siemens SIRIUS ACT LED module with integrated LED, 5 V DC, red, solder terminal, for use on printed circuit boards
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1401-3BA20-5AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. Sirius Act: Led which can integreres in Interfacemodul LED Red.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1401-3BA20-5AA0
- EAN / GTIN
- 4011209938694
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- LED module
- Product type designation
- 3SU1
- Product component — diode
- Yes
- Product component — lamp transformer
- No
- Product component — light source
- Yes
- Product component — series resistor
- No
- Insulation voltage rated value
- 30 V
- Degree of pollution
- 3
- Type of voltage of the operating voltage
- DC
- Type of voltage of the operating voltage — for actuation
- DC
- Surge voltage resistance rated value
- 0.8 kV
- Consumed current maximum
- 20 mA
- Protection class IP — of the enclosure
- IP40
- Protection class IP — of the terminal
- IP20
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating period typical
- 100 000 h
- Reference code according to IEC 81346-2
- P
- General technical data — Net Weight
- 3 g
- Operating voltage 1 — at DC rated value
- 5 V
- Relative positive tolerance of the operating voltage
- 20 %
- Relative negative tolerance of the operating voltage
- 20 %
- Inrush current maximum
- 0.1 A
- Type of electrical connection
- Socket connection (THT)
- Type of light source
- LED
- Color of the light source
- red
- Light intensity
- 450 ... 1 120 mcd
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method — of modules and accessories
- Printed circuit board
- Installation/ mounting/ dimensions — height
- 8.1 mm
- Installation/ mounting/ dimensions — width
- 8.1 mm
- Installation/ mounting/ dimensions — depth
- 30.6 mm
- Lamp holder
- None
- Colour light source
- Red
- Lamp type
- LED
- Connection type auxiliary circuit
- Soldering flag connection
- Voltage type for actuating
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4011209938694
- SAP 1200023169
- Code 81426226
