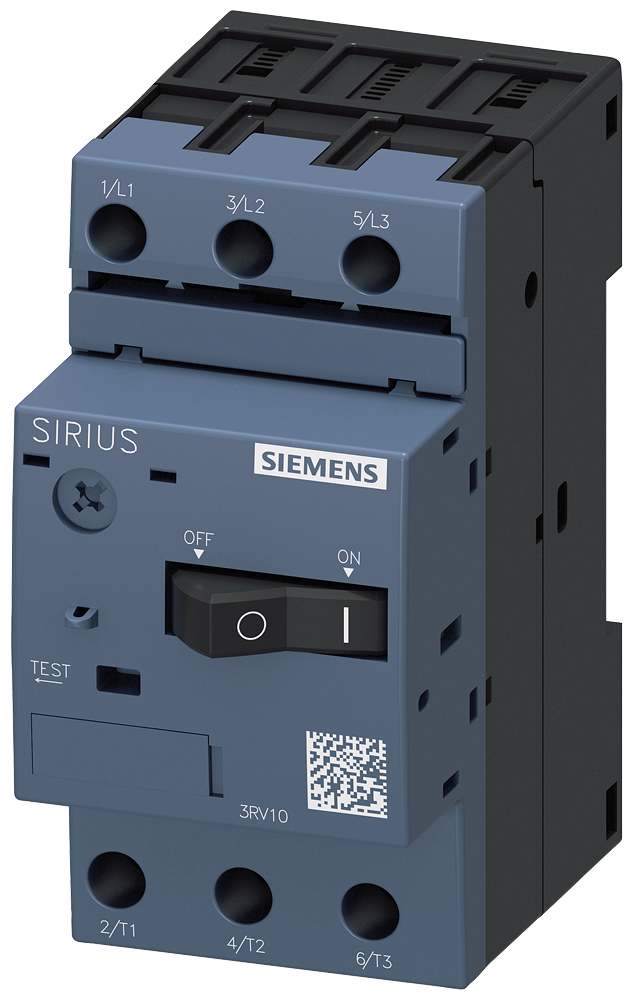

Siemens Motor protection circuit breaker S00, for CLASS10, automatic release 3RV1011-1AA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV1011-1AA10 Motor protection circuit breaker S00, for class10, automatic release. 1, 1-1, 6A, Null release 21A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV1011-1AA10 EAN / GTIN: 4011209263529 HS code: 8536.90 Sales unit: pcs Package quantity: 20 pcs Width: 45 mm Height: 90 mm Depth: 75 mm Rated operation power at AC-3, 400 V: 0.55 kW With integrated auxiliary switch: No Rated permanent current Iu: 1.6 A With integrated under voltage release: No Number of poles: 3 Rated operating voltage: 690 V Overload release current setting: 1.1–1.6 A Power loss: 7.25 W Degree of protection (IP): IP20 With thermal overload protection: Yes Type of electrical connection of main circuit: Screw connection Switch off technique: Magnetic Rated operation power at AC-3, 230 V: 0.25 kW Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA Adjustment range undelayed short-circuit release: 21 A Phase failure sensitive: Yes Device construction: Built-in device fixed built-in technique Country of origin: Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209263529
- SAP 1000050446
- Code 8533669
Product Documentation
More from Siemens
Siemens

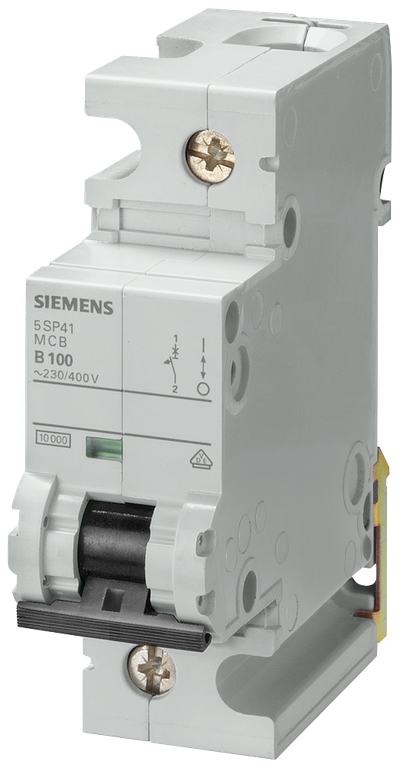

Siemens SENTRON 5SP4191-7 Miniature Circuit Breaker 1-Pole C100A 10KA
Siemens

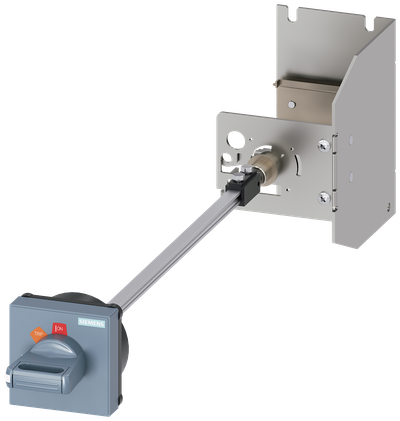

Siemens Door rotary operating mechanism for harsh conditions for circuit breaker Size S00/S0 Handle gray
3RV2926-3B
Siemens

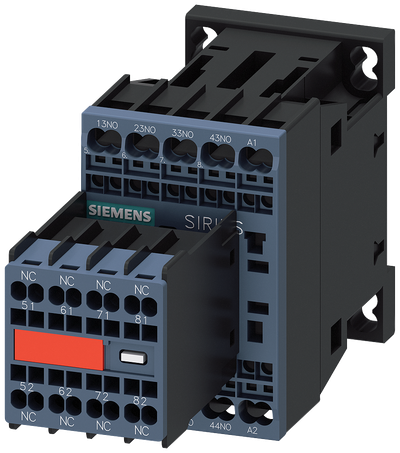

Siemens Contactor Relay, 4NO+4NC, AC 230V, 50/60Hz, Size S00, Spring Terminal Connection
3RH2244-2AP00
Siemens

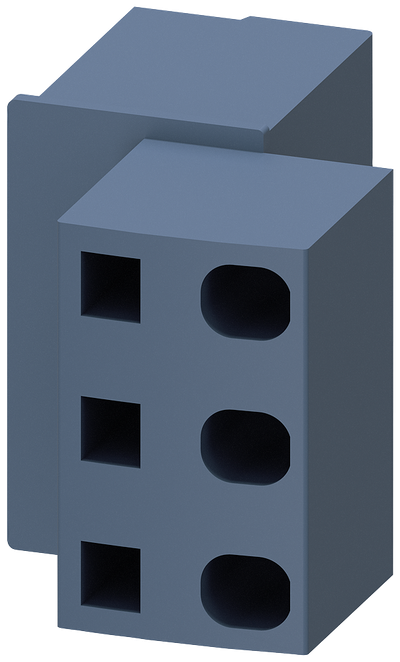

Siemens Terminal Block 6 mm² for Current Output and Also for Connecting 3-Phase Busbars
3RV2917-5D
Siemens

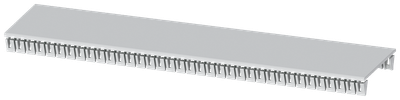

Siemens Alpha Din, Blanking cover 12 module Width
8GK99100KK00
Siemens
Siemens Busbar, 16 mm² 2 Phase+Hs, L= 214mm with End caps
5ST3706
Siemens

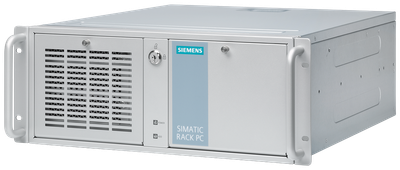

Siemens SIMATIC IPC347G (rack PC, 19", 4 U); Pentium Dual Core G4400 (2C/2T, 3 6AG4012-2AA10-0XX0
Siemens

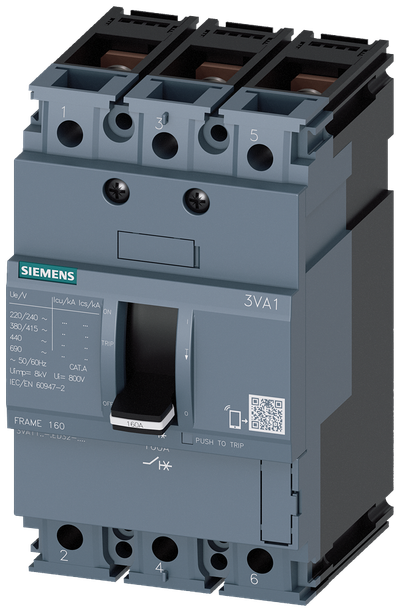

Siemens Circuit Breaker 3VA11 55kA 3-Pole TM210 Fast Thermal & Instant Release 63A
