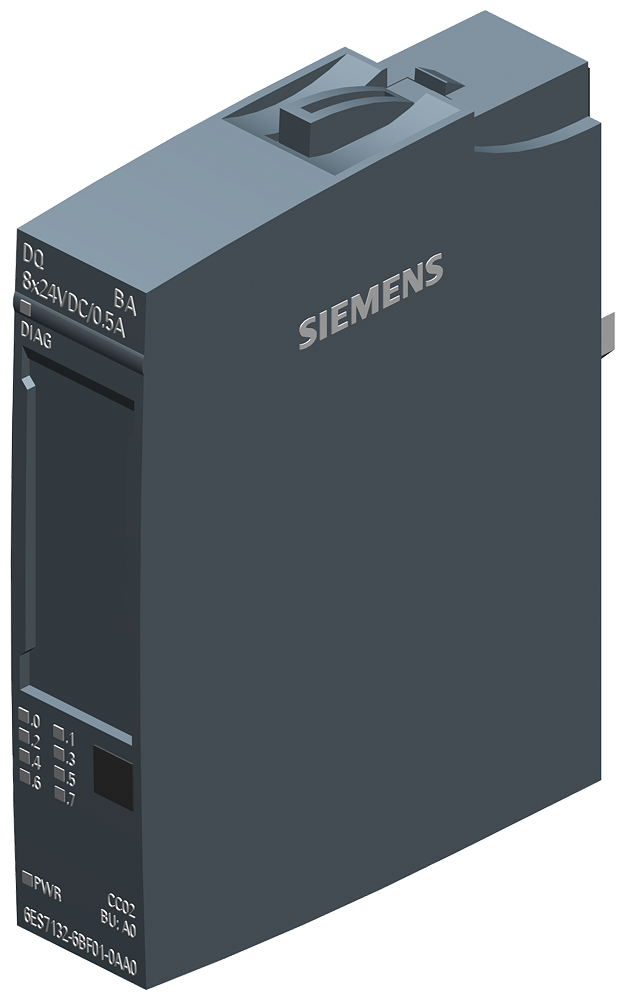

Siemens SIMATIC ET 200SP DQ 8X 24V DC/0,5A Basic

Siemens 6ES7132-6BF01-0AA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital output module, DQ 8X24VDC/0,5A basic, packaging unit: 1 pcs.

Manufacturer part number (MPN)

6ES7132-6BF01-0AA0

EAN / GTIN

4047623408611

Sales unit

pcs

Product type designation

DQ 8x24VDC/0.5A BA

HW functional status

From FS02

Firmware version

V0.0

Firmware version — FW update possible

No

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC02

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

45 mA; without load

Power loss, typ.

1 W

Address space per module — Address space per module, max.

1 byte

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0

Selection of BaseUnit for connection variants — 3-wire connection

BU type A0 with AUX terminals or potential distributor module

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0 + Potential distributor module

Type of digital output

Source output (PNP, current-sourcing)

Number of digital outputs

8

Short-circuit protection

Yes; per channel, electronic

Short-circuit protection — Response threshold, typ.

1 A

Limitation of inductive shutdown voltage to

Typ. L+ (-50 V)

Switching capacity of the outputs — with resistive load, max.

0.5 A

Switching capacity of the outputs — on lamp load, max.

5 W

Load resistance range — lower limit

48 Ω

Load resistance range — upper limit

100 kΩ

Output current — for signal "1" rated value

0.5 A

Output current — for signal "1" permissible range, max.

0.5 A

Output current — for signal "0" residual current, max.

10 µA

Output delay with resistive load — "0" to "1", max.

100 µs; at rated load

Output delay with resistive load — "1" to "0", max.

150 µs; at rated load

Switching frequency — with resistive load, max.

100 Hz

Switching frequency — with inductive load, max.

2 Hz

Switching frequency — on lamp load, max.

10 Hz

Total current of the outputs — Current per channel, max.

0.5 A

Total current of the outputs — Current per module, max.

4 A

Horizontal installation — up to 60 °C, max.

4 A

Vertical installation — up to 50 °C, max.

4 A

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Suitable for safety-related tripping of standard modules

Yes; see FAQ Entry ID: 39198632

Highest safety class achievable in safety mode — SIL acc. to IEC 61508

SIL 2

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS02

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS02

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

30 g

Supporting protocol for EtherCAT

Yes

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Digital outputs configurable

Yes

Type of voltage (input voltage)

DC

Output current

0.5 A

Permitted voltage at output

19.2–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Time delay at signal change

0.1–0.15 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

2

Performance level according to EN ISO 13849-1

Level d

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

HS Code

8538.90
