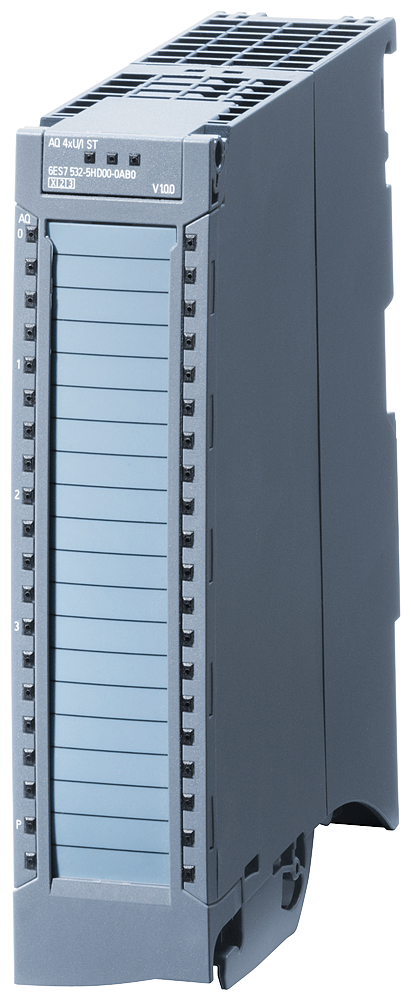

Siemens SIMATIC S7 automation module 6ES7532-5HD00-0AB0

Siemens 6ES7532-5HD00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. Simatic S7 1500 AQ 4 X U/In/ST, 4 channels in group on 4.

Manufacturer part number (MPN)

6ES7532-5HD00-0AB0

EAN / GTIN

4025515080022

Sales unit

pcs

Product family

SM 532 analog output modules

UPC

887621139162

Customs commodity code (HS)

85389091

Packaging dimensions (L x W x H)

19.3 x 16.1 x 5.0 cm

Net weight

0.404 kg

Country of origin

Germany

Product type designation

AQ 4xU/I ST

HW functional status

from FS04

Firmware version

V2.2.0

FW update possible

Yes

I&M data

Yes; I&M0 to I&M3

STEP 7 TIA Portal configurable/integrated from version

V12

PROFINET from GSD version/GSD revision

V2.3

MSO

Yes

Reparameterization possible in RUN

Yes

Calibration possible in RUN

Yes

Supply voltage rated value (DC)

24 V

Supply voltage permissible range, lower limit (DC)

19.2 V

Supply voltage permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

190 mA; with 24 V DC supply

Power consumption from the backplane bus

0.6 W

Power loss, typ.

4 W

Number of analog outputs

4

Voltage output, short-circuit protection

Yes

Voltage output, short-circuit current, max.

24 mA

Current output, no-load voltage, max.

22 V

Cycle time (all channels), min.

3.2 ms

Output ranges, voltage

0 to 10 V; 1 to 5 V; -10 to +10 V

Output ranges, current

0 to 20 mA; -20 to +20 mA; 4 to 20 mA

Load resistance with voltage outputs, min.

1 kΩ (0.5 kΩ at 1 to 5 V)

Load, capacitive, with voltage outputs, max.

1 µF

Load resistance with current outputs, max.

750 Ω

Load, inductive, with current outputs, max.

10 mH

Cable length shielded, max.

800 m for current, 200 m for voltage

Resolution with overrange (bit including sign), max.

16 bit

Conversion time (per channel)

0.5 ms

Settling time for resistive load

1.5 ms

Settling time for capacitive load

2.5 ms

Settling time for inductive load

2.5 ms

Output ripple (relative to output range, 0 to 50 kHz), (+/-)

0.02 %

Linearity error (relative to output range), (+/-)

0.15 %

Temperature error (relative to output range), (+/-)

0.002 %/K

Crosstalk between the outputs, max.

-100 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)

0.05 %

Operational error limit, voltage, relative to output range, (+/-)

0.3 %

Basic error limit, voltage, relative to output range, (+/-)

0.2 %

Diagnostics function

Yes

Substitute values connectable

Yes

Wire break diagnostics

Yes; only for output type "current"

Short-circuit diagnostics

Yes; only for output type "voltage"

Potential separation between the channels and backplane bus

Yes

Permissible potential difference between S- and MANA (UCM)

8 V DC

Isolation tested with

707 V DC (type test)

Suitable for safety-related tripping of standard modules

Yes; From FS05

Performance Level according to ISO 13849-1

PL d

Category according to ISO 13849-1

Cat. 3

SIL according to IEC 62061

SIL 2

Ambient temperature, horizontal installation, min.

-30 °C; From FS06

Ambient temperature, horizontal installation, max.

60 °C

Ambient temperature, vertical installation, max.

40 °C

Installation altitude above sea level, max.

5000 m

Width

35 mm

Height

147 mm

Depth

129 mm

Weight, approx.

310 g

Number of analogue outputs

4

Analogue inputs configurable

No

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue outputs

16 Bit

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

HS Code

8538.90
