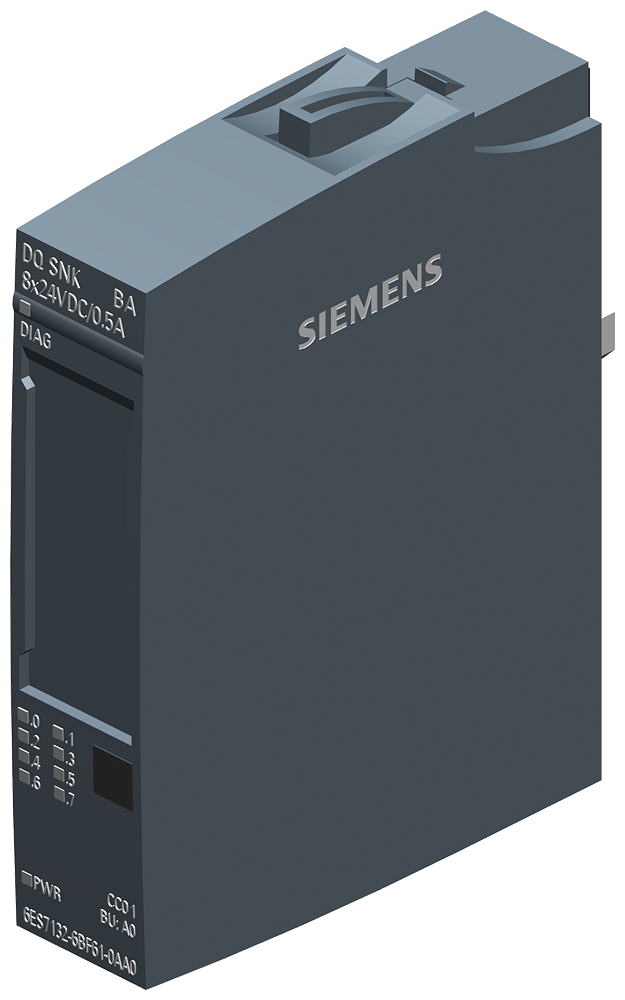

Siemens SIMATIC ET 200SP, Digital output module, DQ 8X 24V DC/0,5A Sink Basic, Sink output (NPN, M-switching)

Siemens 6ES7132-6BF61-0AA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital output module, DQ 8X24VDC/0,5A Sink Basic.

Manufacturer part number (MPN)

6ES7132-6BF61-0AA0

EAN / GTIN

4047623408741

Sales unit

pcs

Product type designation

DQ 8x24VDC/0,5A SNK BA

HW functional status

From FS02

Firmware version

V0.0

Firmware version — FW update possible

No

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC01

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

30 mA

Current consumption, max.

30 mA

Power loss, typ.

1.5 W

Address space per module — Outputs

1 byte

Type of digital output

Sink output (NPN)

Number of digital outputs

8

Current-sinking

Yes

Current-sourcing

No

Digital outputs, parameterizable

Yes

Short-circuit protection

Yes

Short-circuit protection — Response threshold, typ.

1.5 A

Limitation of inductive shutdown voltage to

Typ. 47 V

Controlling a digital input

Yes

Switching capacity of the outputs — with resistive load, max.

0.5 A

Switching capacity of the outputs — on lamp load, max.

5 W

Load resistance range — lower limit

48 Ω

Load resistance range — upper limit

3 400 Ω

Output current — for signal "1" rated value

0.5 A

Output current — for signal "1" permissible range, max.

0.5 A

Output current — for signal "0" residual current, max.

5 µA

Output delay with resistive load — "0" to "1", max.

300 µs

Output delay with resistive load — "1" to "0", max.

600 µs

Parallel switching of two outputs — for uprating

No

Parallel switching of two outputs — for redundant control of a load

Yes

Switching frequency — with resistive load, max.

100 Hz

Switching frequency — with inductive load, max.

0.5 Hz

Switching frequency — on lamp load, max.

10 Hz

Total current of the outputs — Current per channel, max.

0.5 A

Total current of the outputs — Current per module, max.

4 A

Horizontal installation — up to 60 °C, max.

4 A

Vertical installation — up to 50 °C, max.

4 A

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-25 °C

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-25 °C

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

30 g

Supporting protocol for EtherCAT

Yes

Supply voltage DC

19.2–28.8 V

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Digital outputs configurable

Yes

Type of voltage (input voltage)

DC

Output current

0.5 A

Permitted voltage at output

19.2–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Time delay at signal change

0.3–0.6 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

Yes

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
