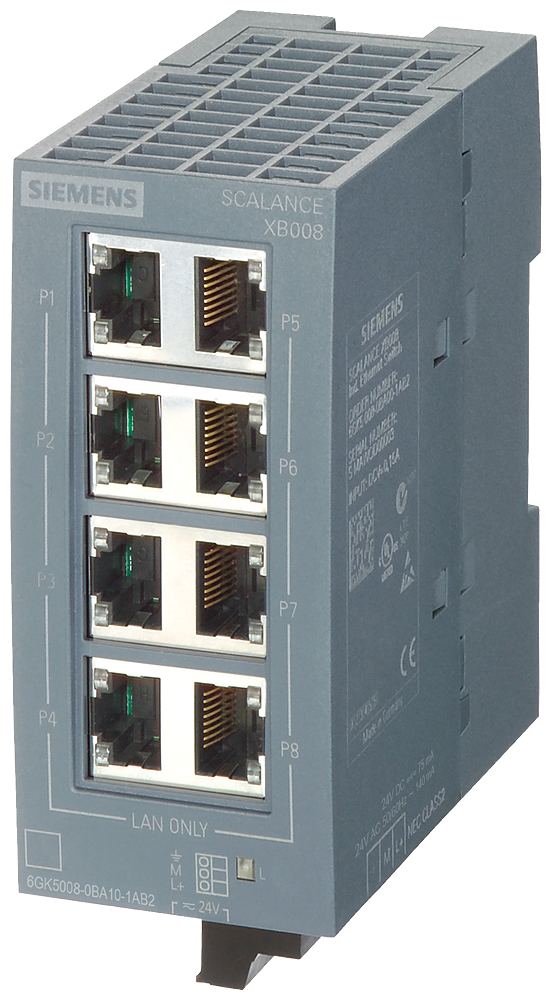

Siemens SCALANCE XB008; 8 x 10/100 Mbit/s RJ45 porter

Siemens 6GK5008-0BA10-1AB2 SCALANCE XB008; 8 x 10/100 Mbit/s RJ45 porter.

Manufacturer part number (MPN)

6GK5008-0BA10-1AB2

EAN / GTIN

4047622598368

Sales unit

pcs

product brand name

SCALANCE

product type designation

XB008

transfer rate

10, 100 Mbit/s

number of electrical connections for network components or terminal equipment

8; RJ45

number of electrical connections for power supply

1

type of electrical connection for power supply

3-pole terminal block

Supply voltage — type of voltage

DC

Supply voltage — rated value

24 V

Power loss, rated value

2.88 W

Supply voltage — voltage range

19.2 ... 28.8 V

consumed current, maximum

0.12 A

fusing at power supply input

Yes

fuse protection type at input for supply voltage

0,6 A / 60 V

ambient conditions during operation

-10 ... +60 °C

ambient conditions during storage

-40 ... +80 °C

relative humidity at 25 °C without condensation during operation, maximum

95 %

protection class IP

IP20

design

Box

Dimensions — width

45 mm

Dimensions — height

100 mm

Dimensions — depth

87 mm

net weight

0.18 kg

35 mm DIN-rail mounting

Yes

wall mounting

Yes

CoS

Yes

PROFINET conformity class

A

Parallel Redundancy Protocol (PRP) operation in the PRP-network

Yes

CE marking

Yes

cULus approval

Yes

KC approval

Yes

Regulatory Compliance Mark (RCM)

Yes

EMC interference emission

EN 61000-6-4 (Class A)

immunity to EMC

EN 61000-6-2

safety from CSA and UL

UL 60950-1, CSA C22.2 No. 60950-1

ATEX

Yes

Mounting method

DIN rail (top hat rail)

Width

45 mm

Height

100 mm

Depth

87 mm

Ethernet

Yes

Number of combination-ports RJ45/Mini GBIC

8

Layer 2

Yes

Layer 3

No

Manageable

No

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

8517.62
