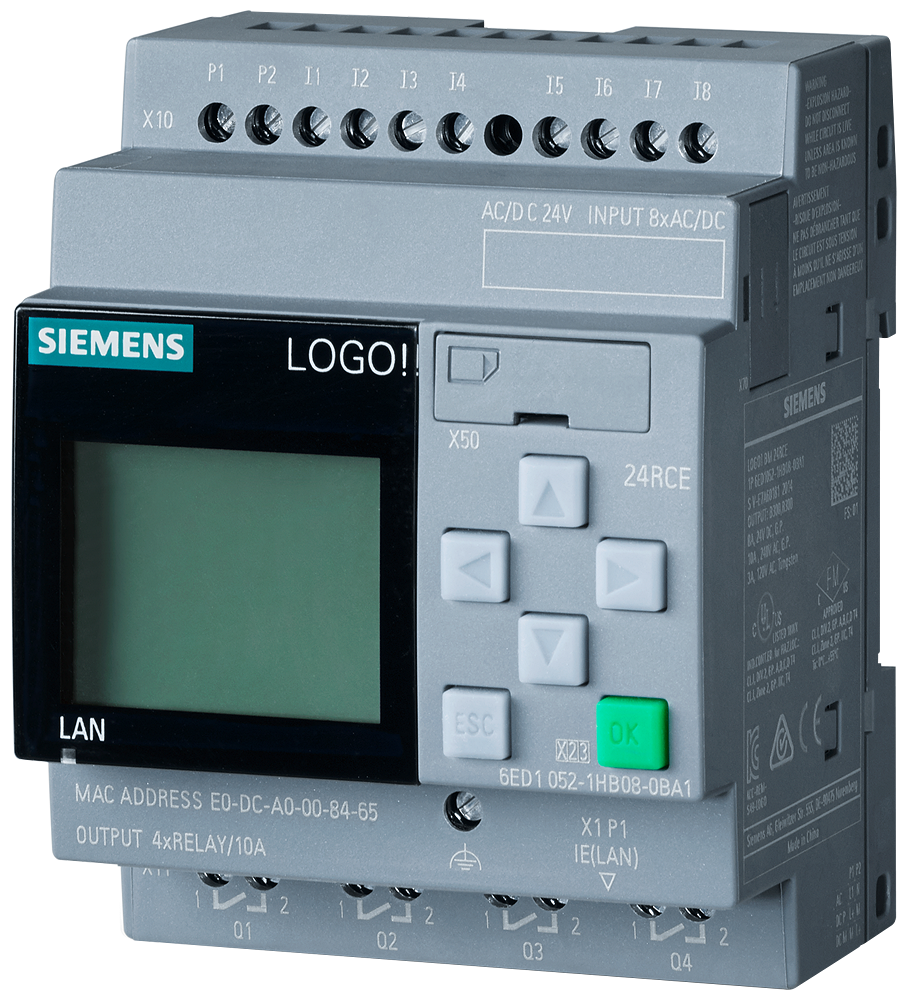

Siemens LOGO! logic module 6ED1052-1HB08-0BA2

Siemens 6ED1052-1HB08-0BA2 — LOGO! logic module. Compact micro-controller for small automation and building-services tasks. 24RCE, 8DI/4DO, 400 Blocks.

Manufacturer part number (MPN)

6ED1052-1HB08-0BA2

EAN / GTIN

4034106034443

Sales unit

pcs

with display

Yes

Mounting

on 35 mm DIN rail, 4 spacing units wide

24 V DC

Yes

Rated value (DC) — permissible range, lower limit (DC)

20.4 V

Rated value (DC) — permissible range, upper limit (DC)

28.8 V

24 V AC

Yes

Line frequency — permissible range, lower limit

47 Hz

Line frequency — permissible range, upper limit

63 Hz

Time switching clocks — Number

400; Max. 400, function-specific

Power reserve

480 h

Number of digital inputs

8

Number of digital outputs

4; Relays

Short-circuit protection

No; external fusing necessary

Switching capacity of contacts — with inductive load, max.

3 A

Switching capacity of contacts — with resistive load, max.

10 A

Limit class B, for use in residential areas

Yes; Radio interference suppression according to EN55011, Limit Value Class B

CE mark

Yes

CSA approval

Yes; covered by UL cert

UL approval

Yes

FM approval

Yes

developed in accordance with IEC 61131

Yes

according to VDE 0631

Yes

Marine approval

Yes

Ambient temperature during operation — min.

-20 °C; No condensation

Ambient temperature during operation — max.

55 °C

Ambient temperature during storage/transportation — min.

-40 °C

Ambient temperature during storage/transportation — max.

70 °C

Dimensions — Width

71.5 mm; 4 modular widths (MW)

Height

90 mm

Dimensions — Depth

60 mm

Supporting protocol for EtherCAT

No

Supply voltage AC 50 Hz

20.4–26.4 V

Supply voltage AC 60 Hz

20.4–26.4 V

Supply voltage DC

20.4–28.8 V

Voltage type (supply voltage)

AC/DC

Switching current

10 A

With relay output

Yes

Number of HW-interfaces industrial Ethernet

1

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Degree of protection (IP)

IP20

Basic device

Yes

Expandable

Yes

Expansion device

No

With time switch clock

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

71.5 mm

Depth

60 mm

Country of origin

China

HS Code

8504.40
