Siemens SIMATIC S7 automation module 6ES7131-6BF01-0BA0

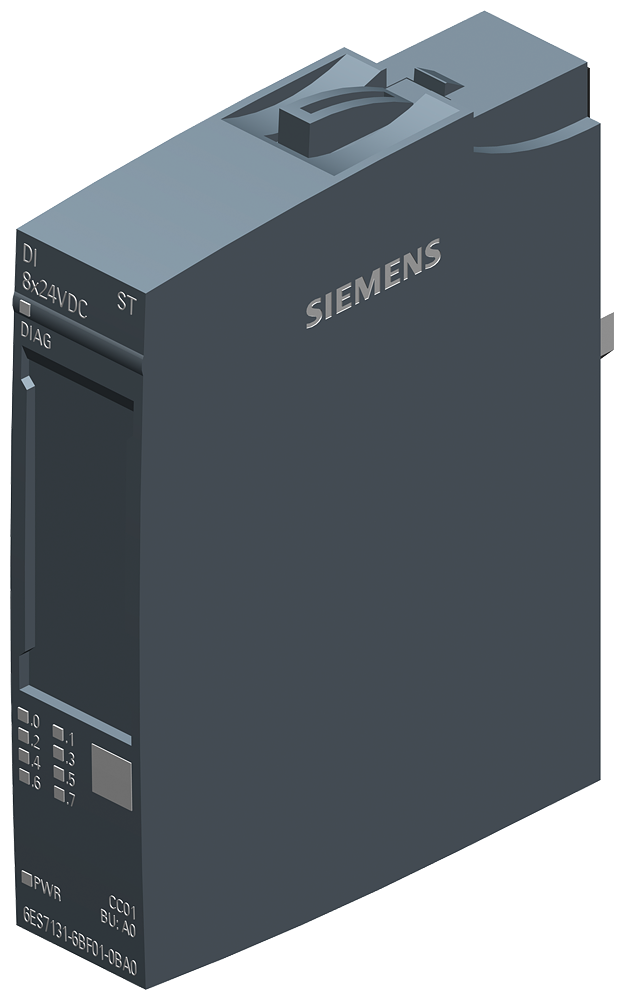

Siemens 6ES7131-6BF01-0BA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. Simatic ET 200SP, Digital input module, DI 8X 24VDC.

Manufacturer part number (MPN)

6ES7131-6BF01-0BA0

EAN / GTIN

4047623408598

Sales unit

pcs

Product type designation

DI 8x24 VDC ST

HW functional status

From FS02

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC01

Suitable for operation on PROFINET R1 IMs

Yes

Engineering with STEP 7 TIA Portal configurable/integrated from version

V14

Operating mode DI

Yes

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

50 mA; All channels supplied from the encoder supply

Number of outputs

8

Output voltage, min.

19.2 V

Output current, max.

700 mA

Power loss, typ.

1 W; 24 V, 8 inputs supplied via encoder supply

Address space per module inputs

1 byte; + 1 byte for QI information

Number of digital inputs

8

Sourcing/sinking input

P-reading

Input characteristic curve in accordance with IEC 61131, type 3

Yes

Input voltage rated value (DC)

24 V

Input voltage for signal "0"

-30 to +5 V

Input voltage for signal "1"

+11 to +30V

Input current for signal "1", typ.

2.5 mA

Cable length shielded, max.

1 000 m

Cable length unshielded, max.

600 m

Connectable 2-wire sensor

Yes

Diagnostics function

Yes

Diagnostic alarm

Yes

Wire break diagnostics

Yes; module-wise

Short-circuit diagnostics

Yes; module-wise

Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation horizontal installation, min.

-30 °C; < 0 °C as of FS02

Ambient temperature during operation horizontal installation, max.

60 °C

Installation altitude above sea level, max.

5 000 m

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

28 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Input current at signal 1

2.5 mA

Type of voltage (input voltage)

DC

Type of digital output

None

Supporting protocol for PROFIBUS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Suitable for safety functions

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90

• EAN 4047623408598
• SAP 1200070526
• Code 81911328
