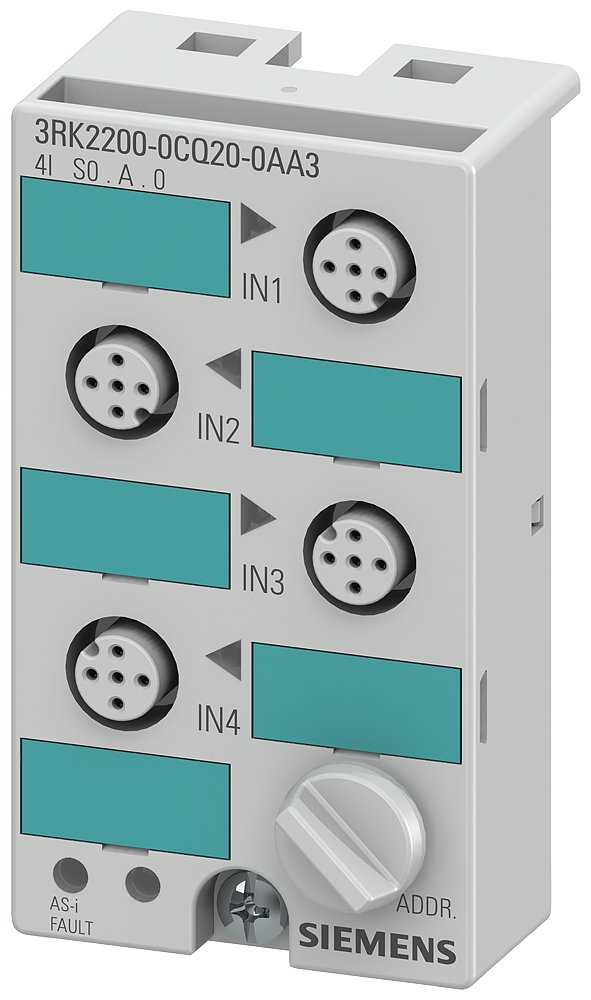

Siemens SIRIUS AS-Interface module 3RK2200-0CQ20-0AA3
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RK2200-0CQ20-0AA3 — SIRIUS AS-Interface module. AS-i field-bus interface module for distributed I/O.
Technical Specifications
- Manufacturer part number (MPN)
- 3RK2200-0CQ20-0AA3
- EAN / GTIN
- 4011209501027
- Sales unit
- pcs
- Voltage type (supply voltage)
- DC
- Number of digital inputs
- 4
- Input current at signal 1
- 6 mA
- Type of voltage (input voltage)
- DC
- Type of digital output
- None
- Type of output voltage
- DC
- Short-circuit protection, outputs available
- No
- Degree of protection (IP)
- IP67
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- No
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 45 mm
- Height
- 80 mm
- Depth
- 30 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209501027
- SAP 1000072371
- Code 8563112
