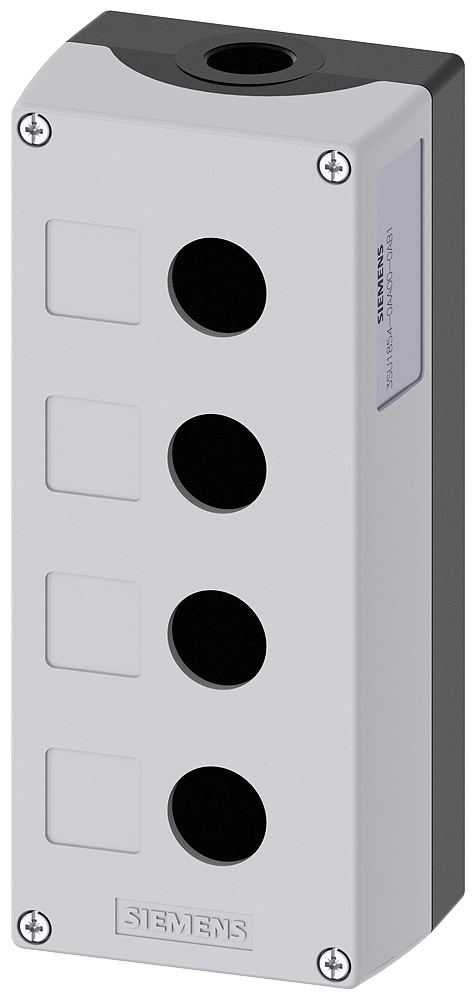

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, enclosure top part gray, 4 control points, without equipment, Recess for labels, floor mounting, 1XM25 each on top and bottom
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1854-0AA00-0AB1 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Box - grey metal - 4 hole Box for 4 buttons/signals.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1854-0AA00-0AB1
- EAN / GTIN
- 4011209970274
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Enclosures
- Product type designation
- 3SU1
- Design of the housing
- with recess for label
- Shape of the enclosure front
- rectangular
- Material of the enclosure
- metal
- Number of command points
- 4
- Product component protective collar
- No
- Color of the enclosure top part
- grey
- Fastening method of the enclosure
- Vertical / horizontal
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance for railway applications according to EN 61373
- Category 1, Class B
- Type of electrical connection on enclosure
- Cable routing above and below, both 1 x M25
- Tightening torque of fixing screws in the enclosure cover
- 1.5 ... 1.7 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method of modules and accessories
- Floor mounting
- Installation/ mounting/ dimensions — height
- 199 mm
- Installation/ mounting/ dimensions — width
- 85 mm
- Installation/ mounting/ dimensions — depth
- 64 mm
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Width
- 85 mm
- Height
- 199 mm
- Depth
- 64 mm
- Diameter openings
- 22.3 mm
- Number of command positions
- 4
- Colour housing cover
- Grey
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP67/IP69K
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209970274
- SAP 1000688517
- Code 8397151
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RW soft starter 3RW3047-1BB14
Siemens
Siemens Alpha 400 Din, Panel board Recessed mounting, Up-Cabinet, Colour Ral 9016, IP31, SK1, H=950 B=550 D=210
8GK1121-4KK22
Siemens
Siemens 3LD, EMERGENCY-STOP switch, 3-P, Iu:100 A, AC-23/400V: 37 kW, plastic IP65, rotary switch, r/g
3LD2766-0TB53
Siemens
Siemens Industrial Monitor, 22" Touch, 5 meter cablelengde, DisplayPort/VGA, 24V DC
6AV7862-2BF00-0AA0
Siemens

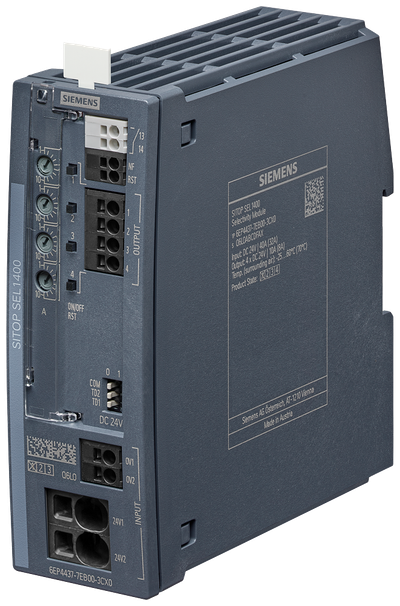

Siemens SITOP DC power supply 6EP4437-7EB00-3CX0
Siemens

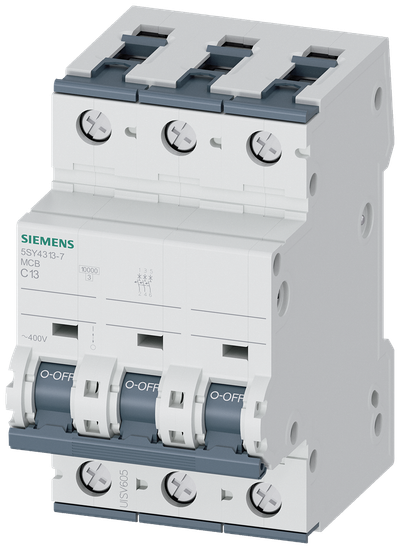

Siemens SENTRON 5SY4313-7 Miniature Circuit Breaker 3-Pole C13A 10KA
Siemens
Siemens SITOP DC power supply 6EP3321-6SB10-0AY0
Siemens

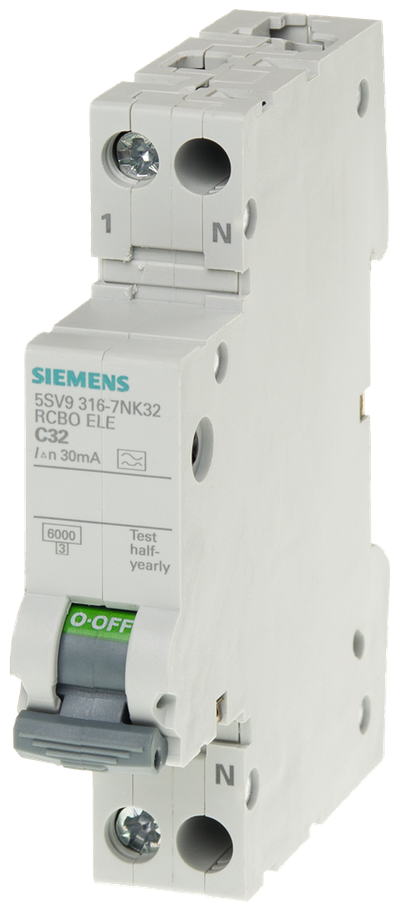

Siemens Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30MA C32, el
