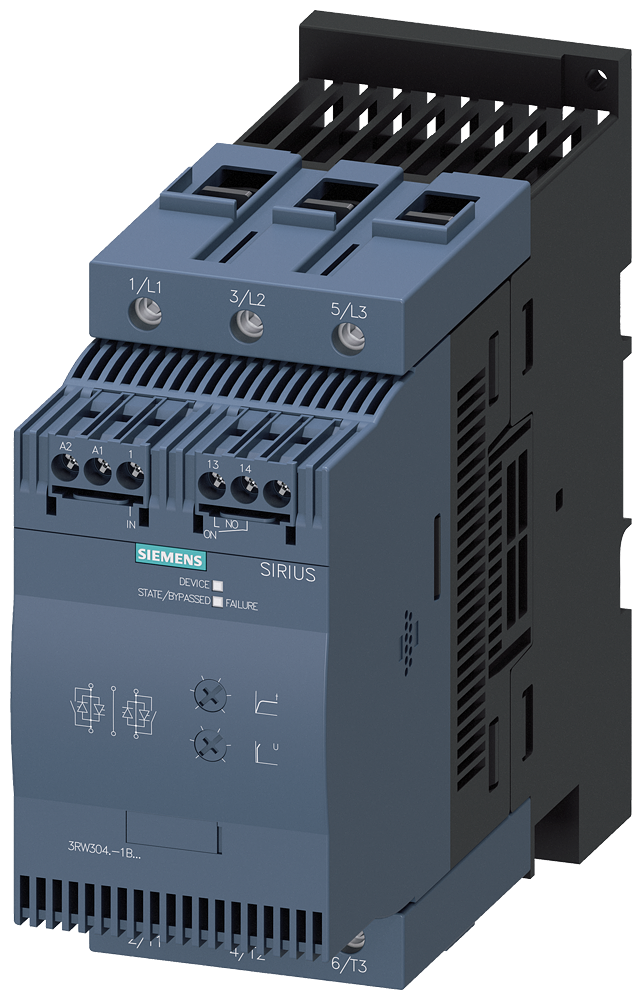

Siemens SIRIUS 3RW soft starter 3RW3047-1BB14

Siemens 3RW3047-1BB14 — SIRIUS 3RW soft starter. Motor soft starter with controlled voltage ramp for reduced-inrush motor start. SOFT STARTER, S3, 106A, 55KW/400V, 40 GR, 200-480V AC, 110-230V AC/DC, SCREW TILK, ONLY RAMPETID OPP.

Manufacturer part number (MPN)

3RW3047-1BB14 EAN / GTIN: 4011209719088 Sales unit: pcs Product brand name: SIRIUS Product designation: Soft starter Integrated bypass contact system: Yes Thyristors: Yes Product component motor brake output: No Insulation voltage rated value: 600 V Degree of pollution: 3, acc. to IEC 60947-4-2 Blocking voltage of the thyristor maximum: 1 600 V Operational current at 40 °C rated value: 106 A Operational current at 50 °C rated value: 98 A Operational current at 60 °C rated value: 90 A Yielded mechanical performance for 3-phase motors at 230 V at standard circuit at 40 °C rated value: 30 kW Yielded mechanical performance for 3-phase motors at 400 V at standard circuit at 40 °C rated value: 55 kW Yielded mechanical performance for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value: 30 hp Operating frequency rated value: 50 ... 60 Hz Operating voltage at standard circuit rated value: 200 ... 480 V minimum load: 10 % Continuous operating current at 40 °C: 115 % Power loss at operational current at 40 °C during operation typical: 21 W Type of voltage of the control supply voltage: AC/DC Control supply voltage 1 at AC at 50 Hz: 110 ... 230 V Control supply voltage 1 at DC: 110 ... 230 V Display version for fault signal: red Size of engine control device: S3 Mechanical data — width: 70 mm Mechanical data — height: 170 mm Mechanical data — depth: 190 mm Fastening method: screw and snap-on mounting Wire length maximum: 300 m Number of poles for main current circuit: 3 Type of electrical connection for main current circuit: screw-type terminals Number of NO contacts for auxiliary contacts: 1 Type of connectable conductor cross-sections for main contacts stranded: 4 ... 70 mm² Installation altitude at height above sea level: 5 000 m Ambient temperature during operation: -25 ... +60 °C Ambient temperature during storage: -40 ... +80 °C Derating temperature: 40 °C Protection class IP on the front according to IEC 60529: IP20 Touch protection on the front according to IEC 60529: finger-safe, for vertical contact from the front Yielded mechanical performance for 3-phase AC motor at 220/230 V at standard circuit at 50 °C rated value: 30 hp Yielded mechanical performance for 3-phase AC motor at 460/480 V at standard circuit at 50 °C rated value: 75 hp Contact rating of auxiliary contacts according to UL: B300 / R300 Function: Single direction With display: No Degree of protection (IP): IP00 Rated operation current Ie at 40 °C Tu: 106 A Rated power three-phase motor, inline, at 230 V: 30 kW Rated power three-phase motor, inline, at 400 V: 55 kW Rated surrounding temperature without derating: 40 °C Voltage type for actuating: AC/DC Internal bypass: Yes Torque control: No Country of origin: Czechia

HS Code

8537.10

• EAN 4011209719088
• SAP 1000066441
• Code 8911646
