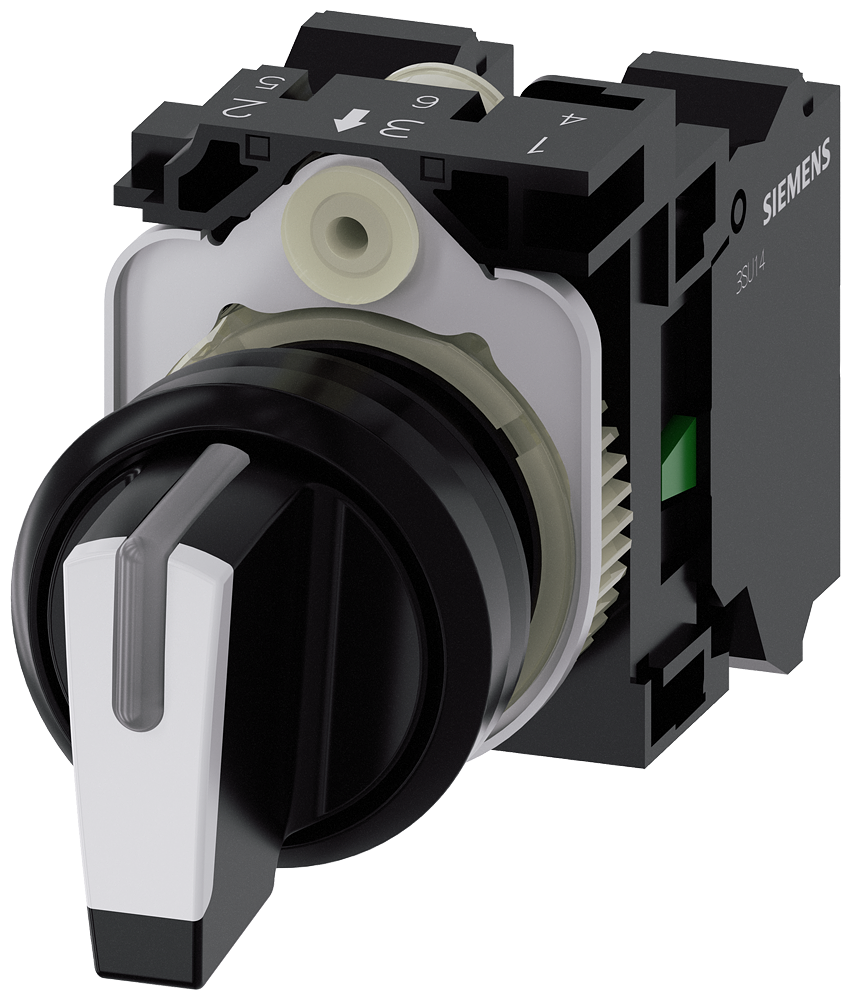

Siemens SIRIUS Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 3 switch positions I-O-II, latching, 10:30H/12H/13:30H, with holder, 1 NO, 1 NO, Spring-type terminal

Siemens 3SU1100-2BL60-3NA0 - SIRIUS ACT 22 mm command and signalling device. Complete illuminable selector switch, round plastic white, short actuator with three positions I-O-II, latching operation at 10:30h/12h/13:30h, with holder and two 1 NO contact modules on spring-loaded terminals. Panel-mount unit in the 22 mm cutout family for control-panel and machinery installations.

Manufacturer part number (MPN)

3SU1100-2BL60-3NA0

EAN / GTIN

4011209957619

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Selector switches

Design of the product

Complete unit

Product type designation

3SU1

Product line

Plastic, black, 22 mm

Manufacturer's article number — of supplied contact module at position 1

3SU1400-1AA10-3BA0

Manufacturer's article number — of supplied contact module at position 2

3SU1400-1AA10-3BA0

Manufacturer's article number — of the supplied holder

3SU1500-0AA10-0AA0

Manufacturer's article number — of the supplied actuator

3SU1002-2BL60-0AA0

Number of command points

1

Design of the actuating element

Selector, short

Principle of operation of the actuating element

latching, 2x45° (10:30 h/12 h/13:30 h)

Product extension optional light source

Yes

Color of the actuating element

white

Material of the actuating element

plastic

Shape of the actuating element

round

Outer diameter of the actuating element

32.3 mm

Number of contact modules

2

Number of switching positions

3

Actuating angle — clockwise

45°

Actuating angle — anticlockwise

45°

Product component front ring

Yes

Design of the front ring

standard

Material of the front ring

plastic

Color of the front ring

black

Material of the holder

Plastic

Number of LED modules

0

Product function positive opening

No

Product component light source

No

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

1 000 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Reference code according to IEC 81346-2

S

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

63 g

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

2

Type of electrical connection

spring-loaded terminals

Type of electrical connection — of modules and accessories

Spring-type terminal

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Product function suitable for safety function

Yes

Test wear-related service life necessary

Yes

Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920

50 %

B10 value with high demand rate according to SN 31920

300 000

Device type according to ISO 13849-1

3

Safety device type according to IEC 61508-2

Type A

T1 value for proof test interval or service life according to IEC 61508

20 a

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

32.3 mm

Shape of the installation opening

round

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

28.8 mm

Installation width

32.3 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

White

Number of switch positions

3

Colour front ring

Black

Type of electric connection

Spring clamp connection

Supply voltage

5–500 V

Width opening

32.3 mm

Height opening

28.8 mm

Degree of protection (IP)

IP67/IP69K

Material front ring

Plastic

Type of control element

Wing knob

Number of contacts as normally open contact

2

Country of origin

Germany

HS Code

8536.50
