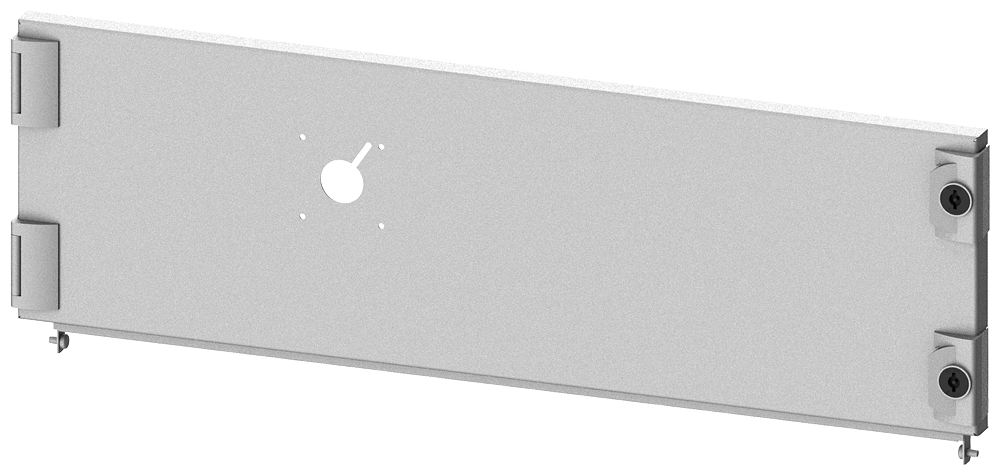

Siemens Compartment door 3VA13 (400 A), 3VA14 (630 A), 3VA23 (400 A), 3VA24 (630 A), fixed-mounted, RCD: with, H: 250 mm W: 800 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
SIVACON S4 Modular DOOR 3VA23_24 HORIZONTAL FAST MOUNTING PLUGGABLE H50X800.
Technical Specifications
- Manufacturer part number (MPN)
- 8PQ2025-8BA15
- EAN / GTIN
- 4001869560229
- Sales unit
- pcs
- Product brand name
- SIVACON S4
- Product designation
- Compartment door
- Design of the product
- 3VA13 (400A), 3VA14 (630A), 3VA23 (400A), 3VA24 (630A)
- Design of the surface
- Powder-coated
- Design of the product EMC version
- No
- Protection class IP
- IP40
- Operating resource protection class
- 1
- Color
- light grey
- Product component — ventilation
- No
- Product component — viewing door
- No
- Product component — door for disconnector lock
- No
- Accessories included
- no
- Mechanical Design — height
- 250 mm
- Mechanical Design — width
- 800 mm
- Mechanical Design — depth
- 25 mm
- Opening direction of the door
- left / right
- Mounting position
- horizontal
- Mechanical Design — Net Weight
- 4.84 kg
- Material
- sheet-steel
- Width
- 800 mm
- Model
- Compartment door
- Height
- 250 mm
- Depth
- 25 mm
- EMC-version
- No
- Degree of protection (IP)
- IP40
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4001869560229
- SAP 1200044840
- Code 81868641
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 5SY5106-6 Miniature Circuit Breaker 1-Pole B6A 10KA
Siemens
Siemens SENTRON 3VA9154-0QB00 — Copper connecting bar, 3VA10 / 3VA11
Siemens
Siemens Momentary-contact foot switch, 1-Pedal, without cover, without latching, Metal enclosure IP65, 1 NO + 1 NC, Cable entry M20 x 1
3SE2902-0AB20
Siemens
AS-Interface module 4x1 input/output 200 mA / 1 A
3RG9002-0DB00
Siemens
Siemens PE Tap for 3RA6 Compact Starter, 63 A, 1-Pole, Screw Connection
3RA6870-4AB
Siemens
Siemens Alpha 400/630 Din, mounting plate Steel for mounting on Vertical montasjerailr(Traverser) 8GK9531-8KK20
Siemens
Siemens Contactor Relay, 4NO, AC 230V, 50/60Hz, Size S00, Spring Terminal Connection
3RH2140-2AP00
Siemens
Siemens SITRANS pressure transmitter 7MF1565-3BE00-1EA1
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8PQ2025-8BA15?
- 8PQ2025-8BA15 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 8PQ2025-8BA15.
- What is the HS code for 8PQ2025-8BA15?
- The customs tariff (HS) code for 8PQ2025-8BA15 is 8538.10.
- Who manufactures 8PQ2025-8BA15?
- 8PQ2025-8BA15 is a Siemens product in the Enclosures range.
- Is a datasheet available for 8PQ2025-8BA15?
- Yes — the 8PQ2025-8BA15 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8PQ2025-8BA15?
- The minimum order quantity is 1.
- Is 8PQ2025-8BA15 available?
- Yes — 8PQ2025-8BA15 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
