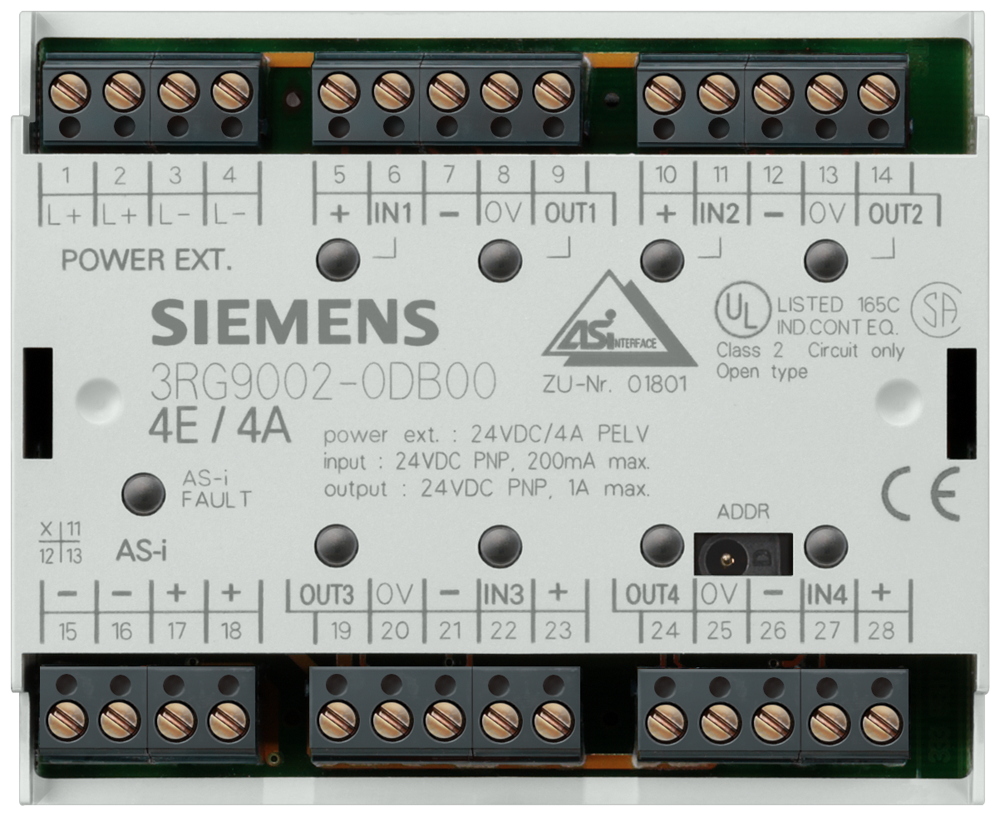

AS-Interface module 4x1 input/output 200 mA / 1 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RG9002-0DB00 AS-Interface module providing digital input and output channels with 200 mA input signal and 1 A output current. DC supply, screw connection, IP20 housing 90 x 75 x 37 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3RG9002-0DB00
- EAN / GTIN
- 4011209217263
- Sales unit
- pcs
- Voltage type (supply voltage)
- DC
- Number of digital inputs
- 4
- Number of digital outputs
- 4
- Input current at signal 1
- 5 mA
- Type of voltage (input voltage)
- DC
- Output current
- 1 A
- Type of output voltage
- DC
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- No
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 90 mm
- Height
- 75 mm
- Depth
- 37 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209217263
- SAP 1000136157
- Code 831864
Product Documentation
