Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S00 3RV2011-1AA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2011-1AA20 — SIRIUS 3RV20 motor protection circuit breaker, frame size S00. Rated 0.11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. 11 to 16 A adjustable, up to 100 kA short-circuit breaking, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. Motor protection circuit breaker 1.1-1.6A spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2011-1AA20
- EAN / GTIN
- 4011209724228
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.55 kW
- Rated permanent current Iu
- 1.6 A
- Number of poles
- 3
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.25 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209724228
- SAP 1000100020
- Code 8981045
Product Documentation
More from Siemens
Siemens

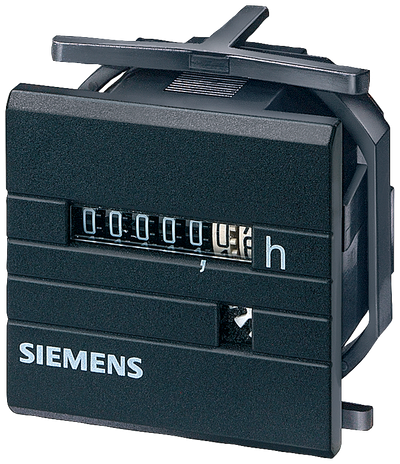

Siemens 7KT5503
Siemens

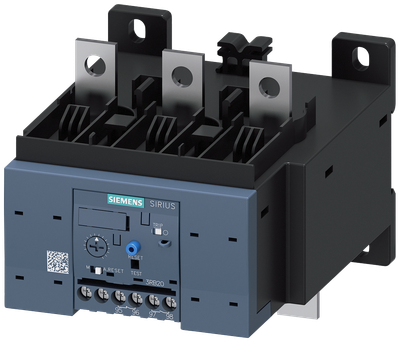

Siemens Electronic Motor protection relay 50-200A KL 3RB2056-2FC2
Siemens

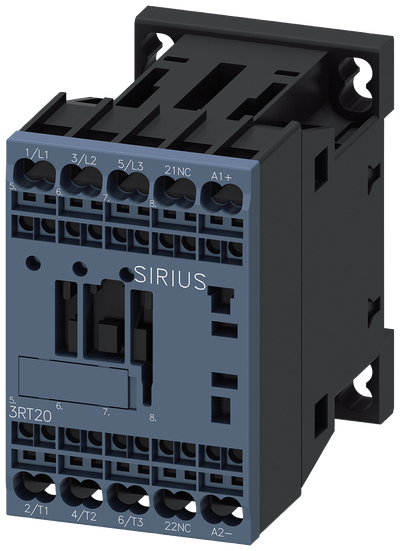

Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2016-2BB42-0CC0
Siemens

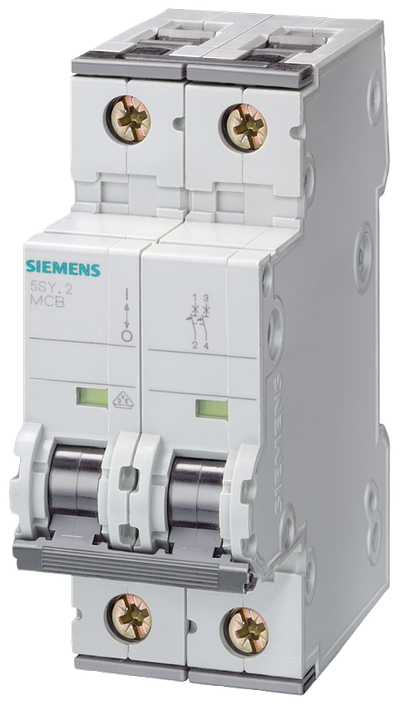

Siemens SENTRON 5SY4263-8FA Miniature Circuit Breaker 2-Pole D63A 10KA
Siemens

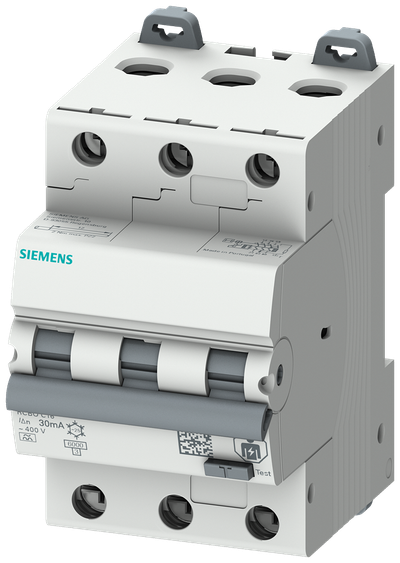

Siemens Residual current circuit breaker with overcurrent, 3P, 20A, Type A 30MA, B-Curve, 6 kA, Un: 400V only, conductor cross-section 35 mm², torque 2Nm
5SU1336-6FP20
Siemens

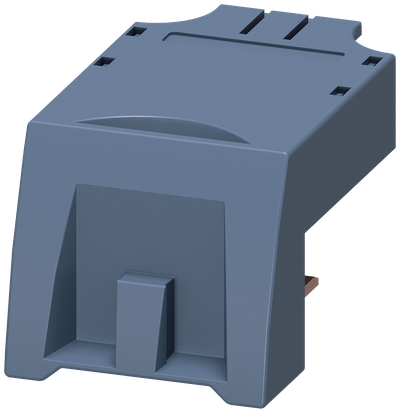

Siemens Kop 3RV2927-5AA00
Siemens

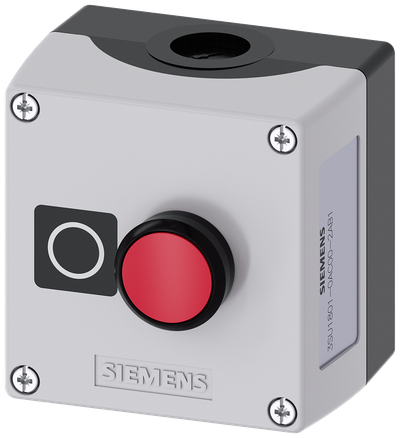

Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Recess for label, A=Pushbutton red, label: O, 1 NC, screw terminal, floor mounting, Label enclosed
3SU1801-0AC00-2AB1
Siemens

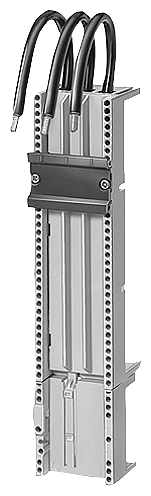

Siemens 8US1261-5FP08
Technical guides
- Motor Protection Circuit Breaker Cross-Reference — Schneider TeSys GV2 / GV3, Siemens SIRIUS 3RV2, Eaton PKZM0 / PKZM4, ABB MS116 / MS132 / MS165 by Setting Range
- Siemens SIRIUS 3RV / 3RT Motor Starter Coordination (IEC 60947-4-1)
- Siemens Low-Voltage Code Decoder — 3RT, 3RV, 3RU, 3VA, 5SL and 3SU Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2011-1AA20?
- 3RV2011-1AA20 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2011-1AA20.
- What is the HS code for 3RV2011-1AA20?
- The customs tariff (HS) code for 3RV2011-1AA20 is 8536.90.
- Who manufactures 3RV2011-1AA20?
- 3RV2011-1AA20 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2011-1AA20?
- Yes — the 3RV2011-1AA20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2011-1AA20?
- The minimum order quantity is 1.
- Is 3RV2011-1AA20 available?
- Yes — 3RV2011-1AA20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
