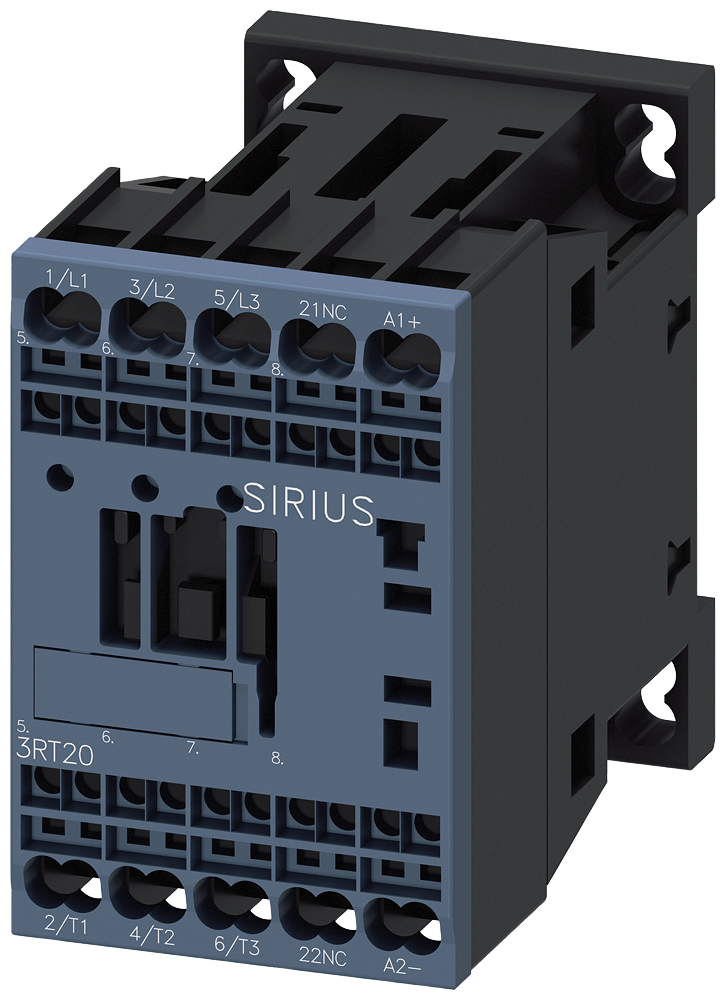

Siemens SIRIUS 3RT20 contactor, frame size S00 3RT2016-2BB42-0CC0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2016-2BB42-0CC0 — SIRIUS 3RT20 contactor, frame size S00. AC-3 rated up to 12 A at 400 V, 3-pole, screw or spring-cage terminals depending on -1A / -1B suffix. Contactor 10A, 1NC, Dc 24V, Com.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2016-2BB42-0CC0
- EAN / GTIN
- 4011209827592
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 70 mm
- Depth
- 73 mm
- Rated operation power at AC-3, 400 V
- 4 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 9 A
- Rated operation current Ie at AC-1, 400 V
- 22 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Rated operation current Ie at AC-4, 400 V
- 8.5 A
- Rated operation power at AC-4, 400 V
- 4 kW
- Rated operation power NEMA
- 5 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209827592
- SAP 1000097190
- Code 8961949
Product Documentation
