Siemens Motor protection circuit breaker rated current 5
Pricing
Request a quote
We reply within 24 hours
Product Description

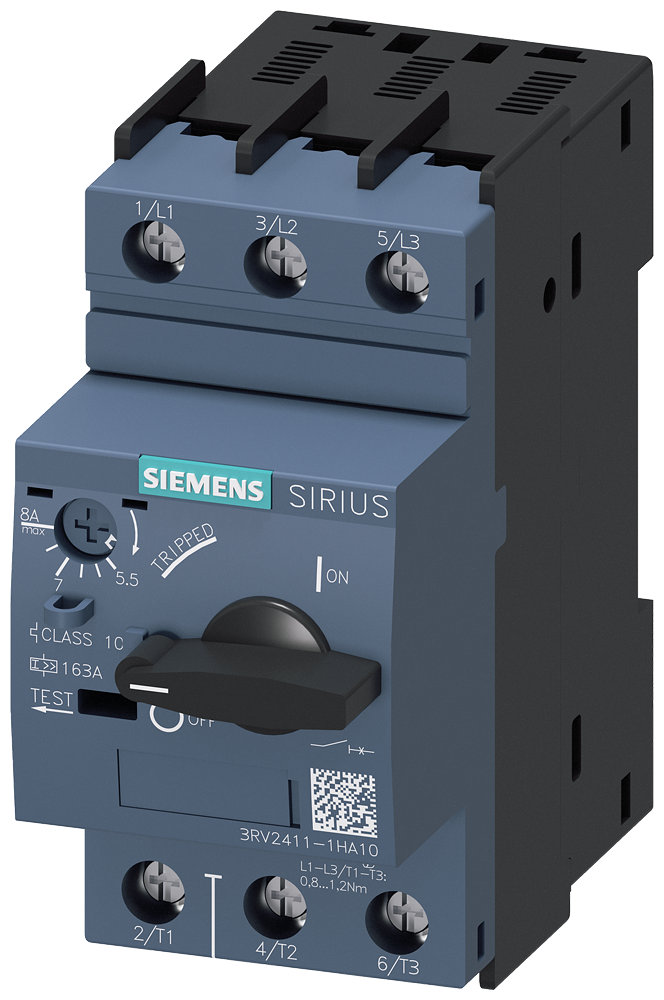

Siemens 3RV2411-1HA10 Motor protection circuit breaker rated current 5.5-8A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-1HA10
- EAN / GTIN
- 4011209713178
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 3 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 8 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 5.5–8 A
- Power loss
- 9.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 1.5 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 163 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209713178
- SAP 1000099952
- Code 8952019
Product Documentation
More from Siemens
Siemens

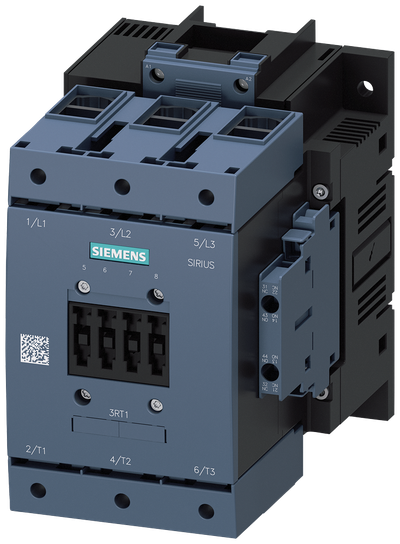

Siemens S6 contactor, 55KW/400V/AC-3 3RT1054-1AF36
Siemens

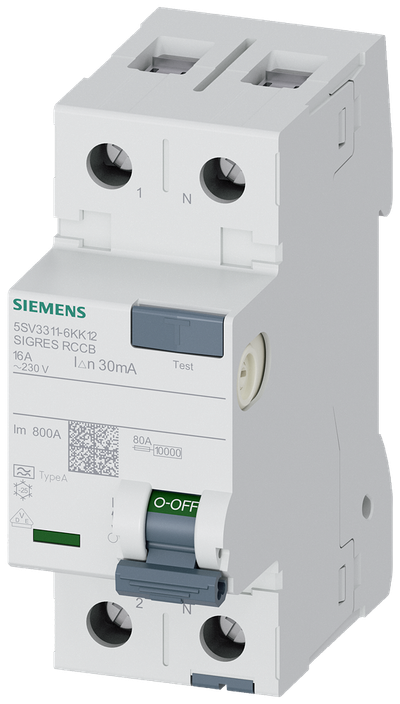

Siemens Residual current circuit breaker A 16/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES
5SV33116KK12
Siemens

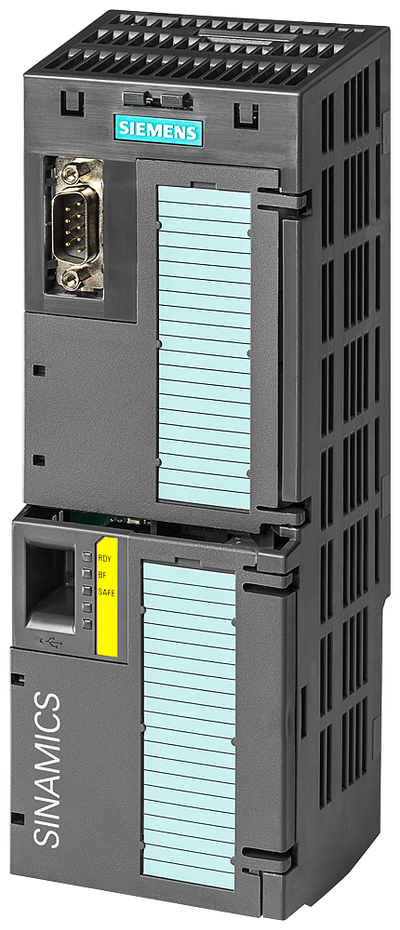

Siemens Sinamics G120 Control Unit CU250S-2 CAN Integrated CanOpen
6SL3246-0BA22-1CA0
Siemens

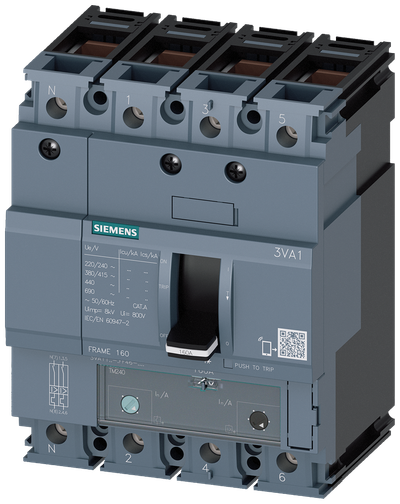

Siemens 3VA11, 25KA, 4-Pole, TM240, IN=50A,IR=35A 3VA1150-3GF46-0AA0
Siemens

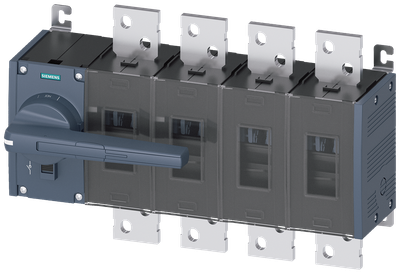

Siemens SENTRON 3KD Switch-Disconnector 3KD5042-0RE10-0, 1000 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens

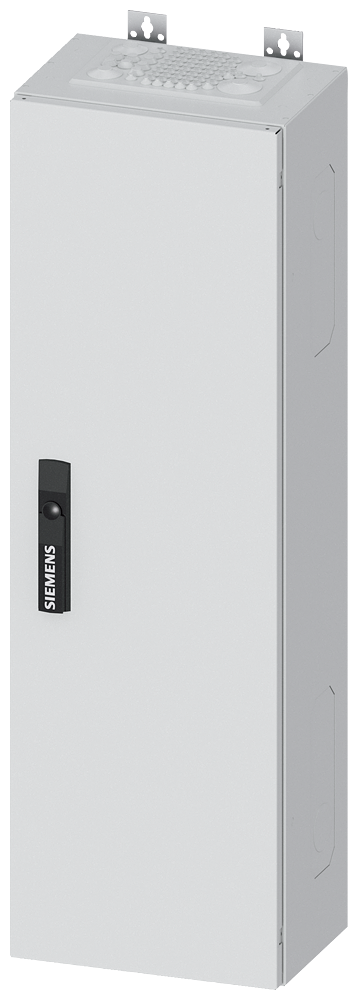

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 950 mm, W: 300 mm, D: 210 mm, RAL 9016
8GK1132-4KA12
Siemens

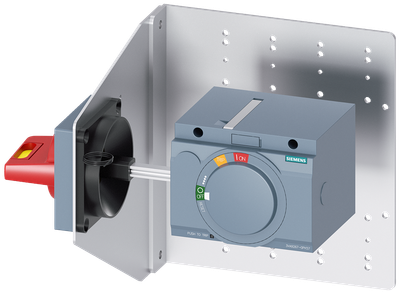

Siemens SENTRON 3VA9267-0PK57 — Side-wall rotary operating mechanism with coupling plate, 3VA20 / 3VA21 / 3VA22
Siemens

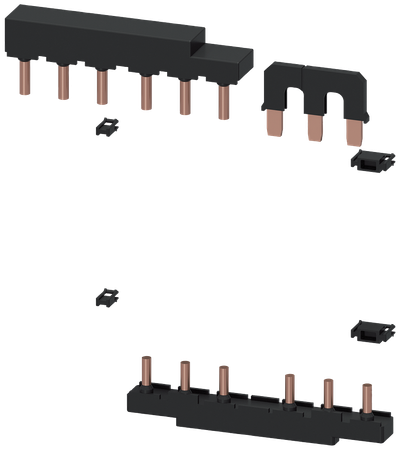

Siemens Wiring Kit for Star-Delta Assembly, Size S2, Spring-Loaded Terminals
