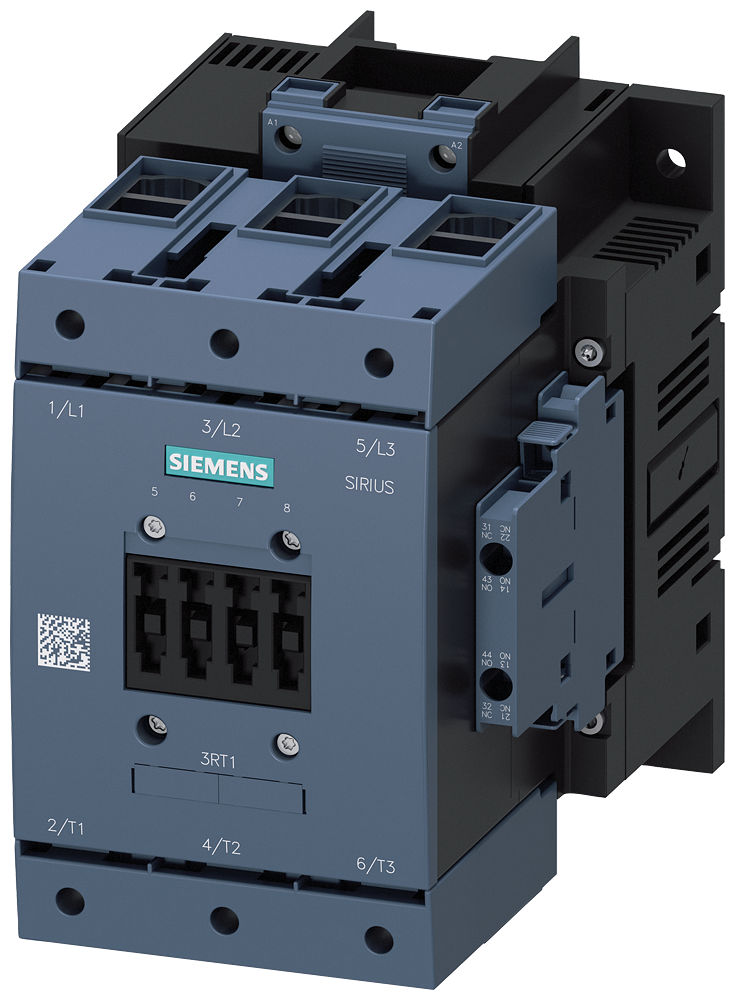

Siemens S6 contactor, 55KW/400V/AC-3 3RT1054-1AF36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1054-1AF36 S6 contactor, 55KW/400V/AC-3.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1054-1AF36
- EAN / GTIN
- 4011209504455
- HS code
- 8536.90
- Sales unit
- pcs
- Power
- 55 kW
- Utilization category
- AC-3
- Width
- 120 mm
- Height
- 172 mm
- Depth
- 170 mm
- Rated operation power at AC-3, 400 V
- 55 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 115 A
- Rated operation current Ie at AC-1, 400 V
- 160 A
- Type of electrical connection of main circuit
- Frame clamp
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 97 A
- Rated operation power at AC-4, 400 V
- 55 kW
- Rated operation power NEMA
- 100 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209504455
- SAP 1000311083
- Code 8334165
Product Documentation
More from Siemens
Siemens
Siemens Residual current circuit breaker A 16/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 SIGRES
5SV33116KK12
Siemens
Siemens Sinamics G120 Control Unit CU250S-2 CAN Integrated CanOpen
6SL3246-0BA22-1CA0
Siemens
Siemens 3VA11, 25KA, 4-Pole, TM240, IN=50A,IR=35A 3VA1150-3GF46-0AA0
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD5042-0RE10-0, 1000 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 950 mm, W: 300 mm, D: 210 mm, RAL 9016
8GK1132-4KA12
Siemens
Siemens SENTRON 3VA9267-0PK57 — Side-wall rotary operating mechanism with coupling plate, 3VA20 / 3VA21 / 3VA22
Siemens
Siemens Wiring Kit for Star-Delta Assembly, Size S2, Spring-Loaded Terminals
3RA2933-2BB2
Siemens
Siemens SENTRON 3VA9257-0VF10 — Mechanical interlock module (Bowden-cable type), 3VA12
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT1054-1AF36?
- 3RT1054-1AF36 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT1054-1AF36.
- What is the HS code for 3RT1054-1AF36?
- The customs tariff (HS) code for 3RT1054-1AF36 is 8536.90.
- Who manufactures 3RT1054-1AF36?
- 3RT1054-1AF36 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT1054-1AF36?
- Yes — the 3RT1054-1AF36 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT1054-1AF36?
- The minimum order quantity is 1.
- Is 3RT1054-1AF36 available?
- Yes — 3RT1054-1AF36 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
