Siemens Motor protection circuit breaker 0 3RV2411-0JA10
Pricing
Request a quote
We reply within 24 hours
Product Description

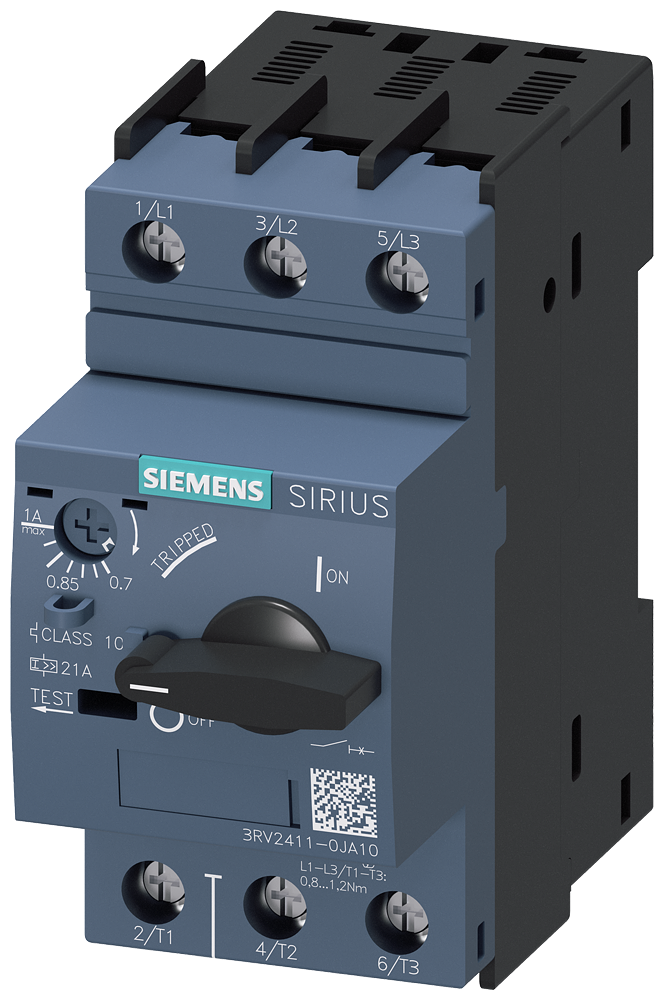

Siemens 3RV2411-0JA10 Motor protection circuit breaker 0.7-1 A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-0JA10
- EAN / GTIN
- 4011209712645
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.3 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 1 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 0.7–1 A
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.2 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 21 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209712645
- SAP 1000315162
- Code 8985172
Product Documentation
More from Siemens
Siemens
Siemens PB ECOFAST HYBRID CABLE GP
6XV1860-2P
Siemens

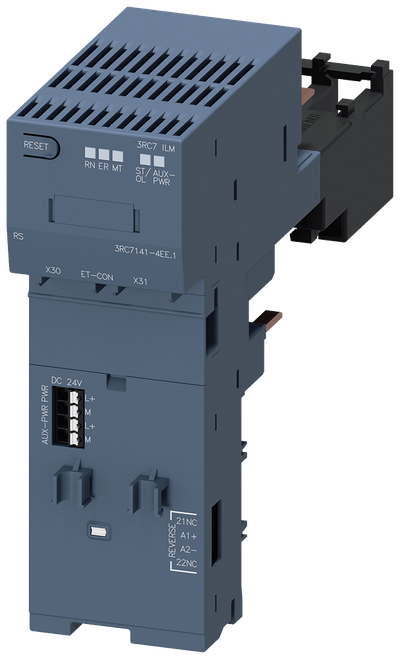

Siemens Inteligent Linkmodul(ILM)for dreieretningt, 3,2-32AMP
3RC71414EE11
Siemens

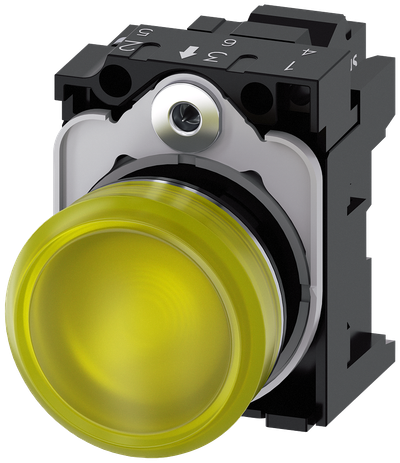

Siemens SIRIUS ACT Indicator Light 22mm Yellow Shiny Metal LED 230V AC 3SU1156-6AA30-3AA0
Siemens

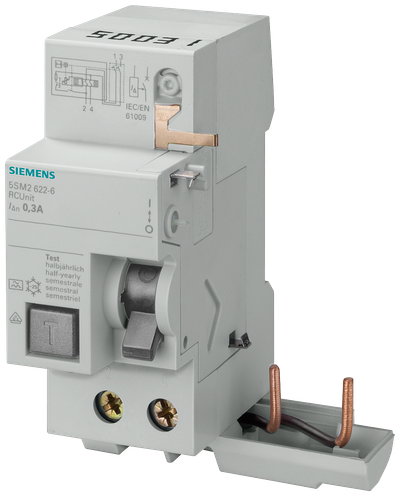

Siemens Residual Current Circuit Breaker Block for MCBs 5SM2425-6
Siemens

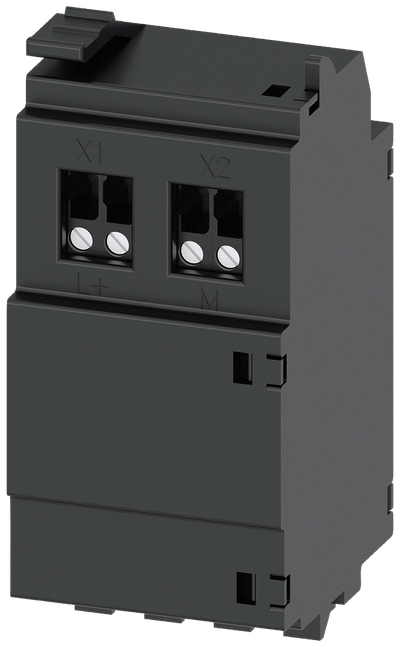

Siemens SENTRON 3VA9387-0TB50 — External 24 V DC power-supply module, 24 V DC, 3VA2
Siemens

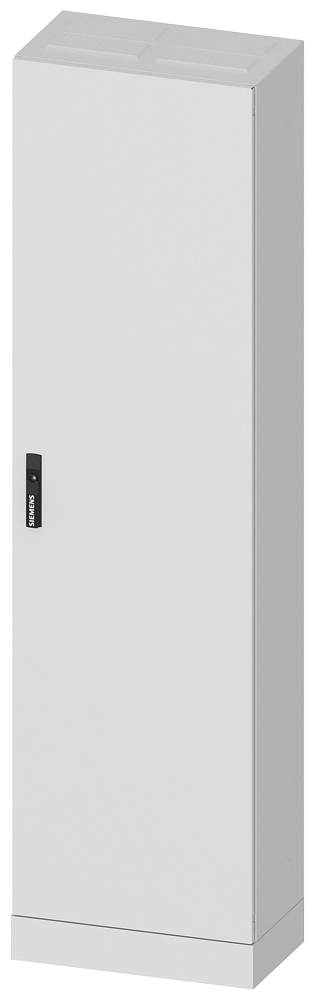

Siemens Alpha 630 Din, Floor Cabinet Including Plinth Colour Ral 7035, IP55, SK2, H=1900 B=550 D=320
8GK1333-8KN24
Siemens

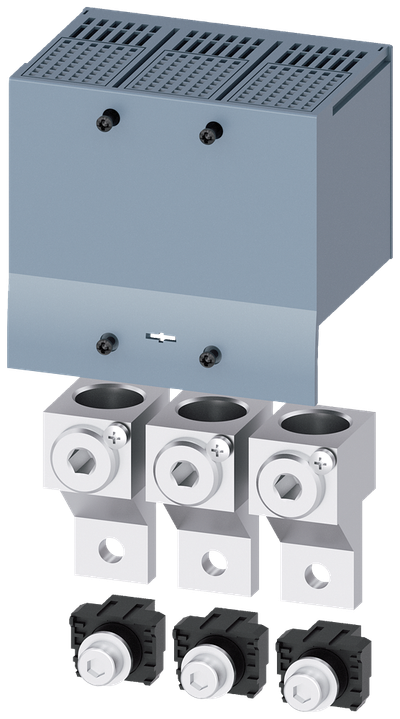

Siemens SENTRON 3VA9263-0JC13 — Cu/Al box terminal, 3-Pole, 50–240 mm², 3VA20 / 3VA21 / 3VA22
Siemens

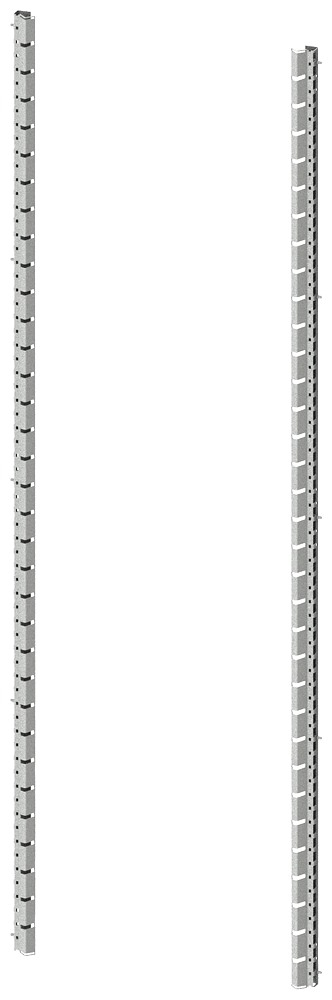

Siemens SIVACON S4 Plug-in rail H: 1600 mm
