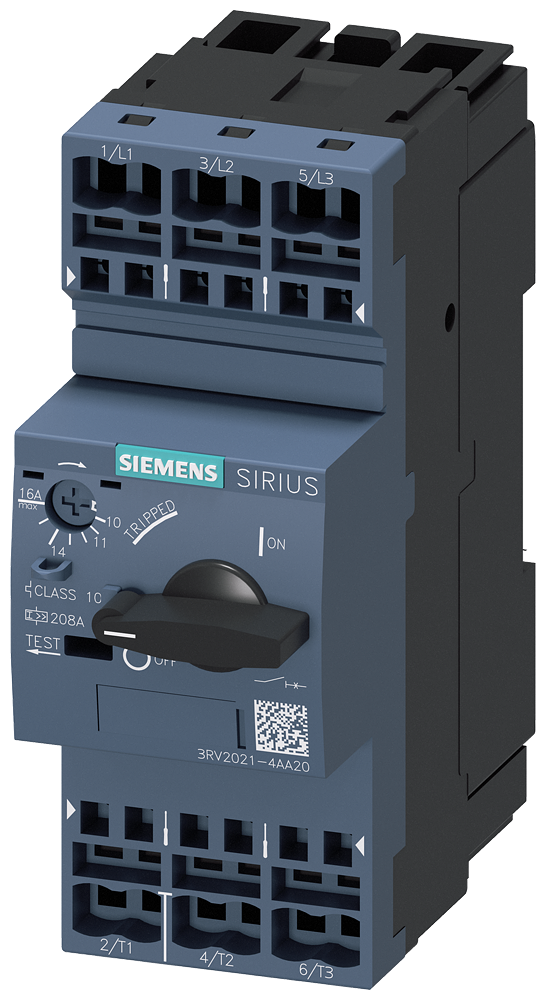

Siemens SIRIUS 3RV20 motor protection circuit breaker, frame size S0 3RV2021-4AA20
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2021-4AA20 — SIRIUS 3RV20 motor protection circuit breaker, frame size S0. Rated up to 32 A adjustable, IEC 60947-4-1 type-2 coordination with paired 3RT2 contactor. Motor protection circuit breaker 11-16A Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2021-4AA20
- EAN / GTIN
- 4011209724426
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 119 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Rated permanent current Iu
- 16 A
- Number of poles
- 3
- Power loss
- 9.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 4 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 55 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209724426
- SAP 1000097860
- Code 8963976
Product Documentation
More from Siemens
Siemens

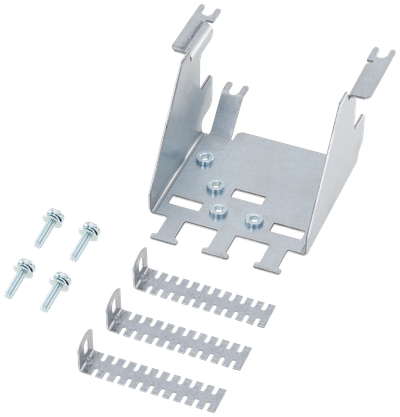

Siemens Sinamics V20 EMC Termineringskit for framesize B
6SL3266-1AB00-0VA0
Siemens

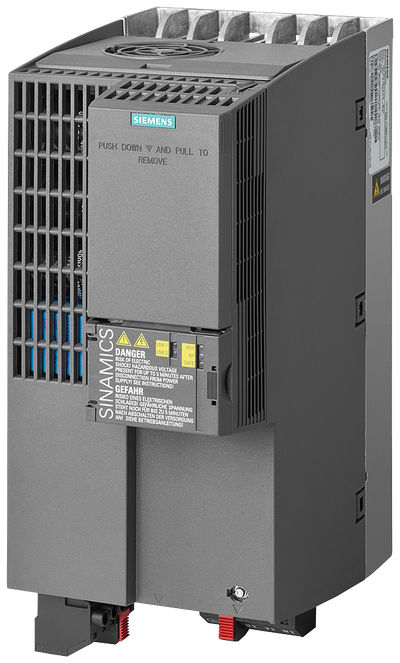

Siemens Sinamics G120C DP 3AC 400V 11kW with integrated filter kl
