Siemens Sinamics G120C DP 3AC 400V 11kW with integrated filter kl
Pricing
Request a quote
We reply within 24 hours
Product Description

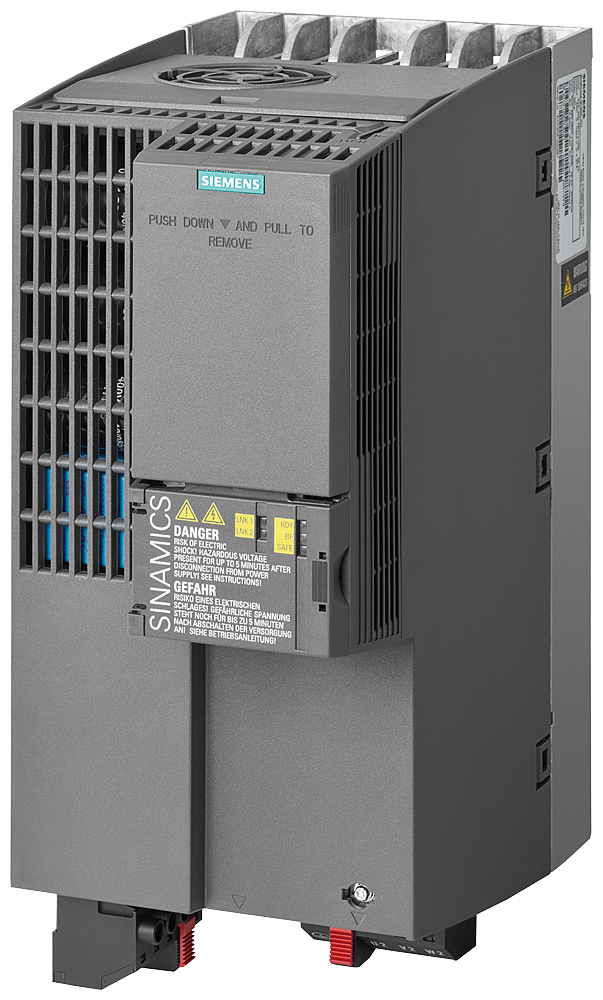

Siemens 6SL3210-1KE22-6AP1 Sinamics G120C DP 3AC 400V 11kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3210-1KE22-6AP1
- EAN / GTIN
- 4042948663387
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 11 kW
- Width
- 140 mm
- Height
- 295 mm
- Depth
- 203 mm
- With control element
- No
- Number of digital inputs
- 6
- Number of digital outputs
- 2
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 6
- Degree of protection (IP)
- IP20
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 7.5 kW
- Max. output at quadratic load at rated output voltage
- 11 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 26 A
- Supporting protocol for BACnet
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948663387
- SAP 1000413384
- Code 8493509
