Siemens Circuit breaker for transformer 5
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2411-1HA20 Circuit breaker for transformer 5.5-8A S00 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-1HA20
- EAN / GTIN
- 4011209767379
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 106 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 3 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 8 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 5.5–8 A
- Power loss
- 9.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Spring clamp connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 1.5 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 163 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209767379
- SAP 1000315191
- Code 8750060
Product Documentation
More from Siemens
Siemens
Siemens Sinamics G120P PM230 3AC 400V 45kW with integrated filter kl 6SL3223-0DE34-5AA0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE50-0AF0
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE12-0UB0
Siemens

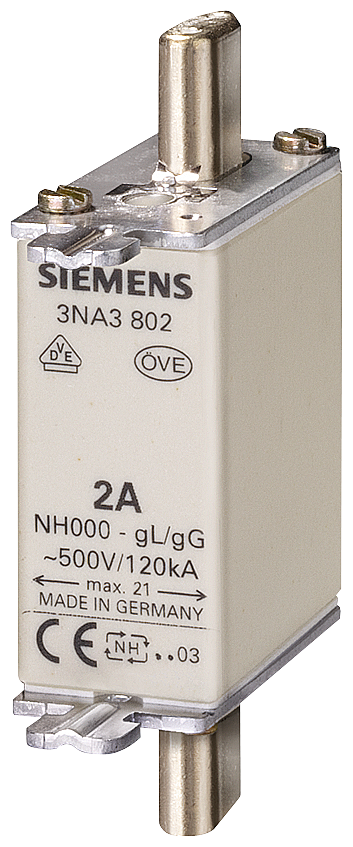

Siemens LV HRC fuse (NH)GL/GG, size 000, 2A, AC500V/DC250V
3NA3802
Siemens
Siemens Load-break switch 63A,size 1, frame terminal for cable,6-Pole,1200VDC
3KD26602ME200
Siemens
Siemens SIRIUS ACT Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 3 switch positions I>O<II, momentary contact type, actuating angle 2X45°, 10:30H/12H/13:30H
3SU1052-2BM60-0AA0
Siemens
Siemens SIRIUS 3RP25 Time relay -Electronic,delay 3RP2511-2AW30
Siemens
Siemens SIRIUS AS-Interface module 3RK1308-0CE00-0CP0
Technical guides
- Motor Protection Circuit Breaker Cross-Reference — Schneider TeSys GV2 / GV3, Siemens SIRIUS 3RV2, Eaton PKZM0 / PKZM4, ABB MS116 / MS132 / MS165 by Setting Range
- Siemens SIRIUS 3RV / 3RT Motor Starter Coordination (IEC 60947-4-1)
- Siemens Low-Voltage Code Decoder — 3RT, 3RV, 3RU, 3VA, 5SL and 3SU Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2411-1HA20?
- 3RV2411-1HA20 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2411-1HA20.
- What is the HS code for 3RV2411-1HA20?
- The customs tariff (HS) code for 3RV2411-1HA20 is 8536.90.
- Who manufactures 3RV2411-1HA20?
- 3RV2411-1HA20 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2411-1HA20?
- Yes — the 3RV2411-1HA20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2411-1HA20?
- The minimum order quantity is 1.
- Is 3RV2411-1HA20 available?
- Yes — 3RV2411-1HA20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
