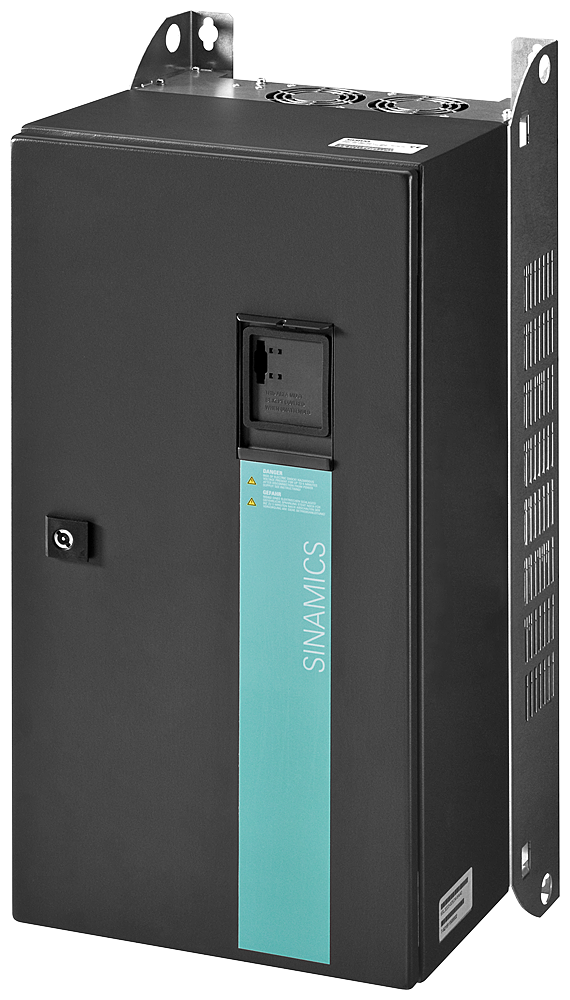

Siemens Sinamics G120P PM230 3AC 400V 45kW with integrated filter kl 6SL3223-0DE34-5AA0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3223-0DE34-5AA0 Sinamics G120P PM230 3AC 400V 45kW with integrated filter kl. A.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3223-0DE34-5AA0
- EAN / GTIN
- 4019169458269
- Sales unit
- pcs
- Voltage
- 400 V
- Power
- 45 kW
- Width
- 320 mm
- Height
- 751 mm
- Depth
- 329 mm
- With control element
- No
- Degree of protection (IP)
- IP55
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 37 kW
- Max. output at quadratic load at rated output voltage
- 45 kW
- Relative symmetric net voltage tolerance
- -10 %
- Relative symmetric net frequency tolerance
- 5 %
- Nominal output current I2N
- 90 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4019169458269
- SAP 1000321377
- Code 8808726
