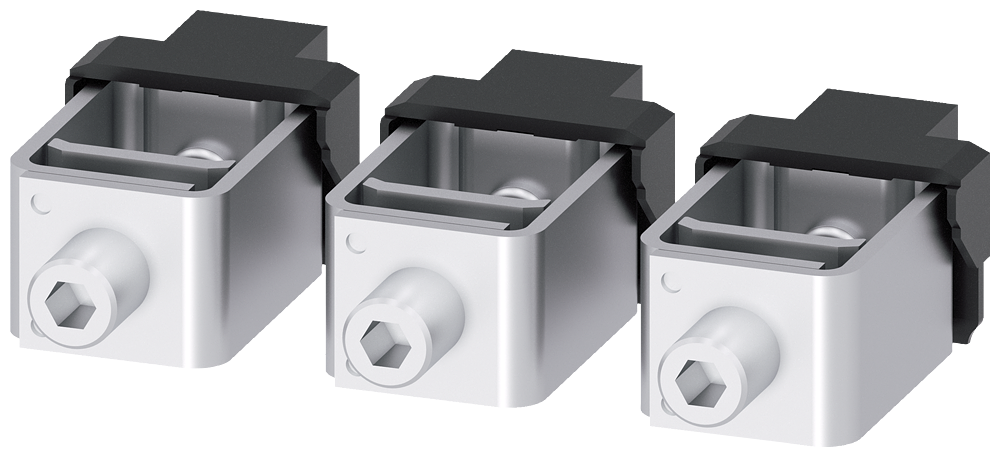

Siemens SENTRON 3VA9263-0JA12 — Copper (Cu) box terminal, 25–185 mm², 3VA20 / 3VA21 / 3VA22
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON copper (Cu) box terminal for the SENTRON 3VA20 / 3VA21 / 3VA22 moulded-case circuit-breaker frame. Conductor cross-section 25–185 mm². Field-mountable accessory of the SENTRON 3VA circuit-breaker system to IEC/EN 60947-2. Siemens order number 3VA9263-0JA12, EAN 4042949007982, Siemens/SAP material 1000661528, catalogue code 8495461.
Technical Specifications
- Manufacturer
- Siemens
- Series
- SENTRON 3VA
- Accessory type
- Copper (Cu) box terminal
- Manufacturer part number (MPN)
- 3VA9263-0JA12
- EAN / GTIN
- 4042949007982
- Siemens / SAP material no.
- 1000661528
- Fits breaker frame
- 3VA20 / 3VA21 / 3VA22
- Conductor cross-section
- 25–185 mm²
- Pack quantity
- 3 pcs
- System standard
- IEC/EN 60947-2 (moulded-case circuit-breaker system)
- HS code
- 8538.90
- Sales unit
- pcs
- Terminal designation
- TS1.4
- Stripped length
- 19 mm (0.75 in)
- Tightening torque (Cu stranded)
- 25–35 mm²: 6 Nm; 50–185 mm²: 12 Nm
- UL conductor range
- 4 AWG – 350 kcmil, 75 °C (UL 486A-486B)
- UL tightening torque
- 4–1 AWG: 70 lb-in; 1/0–350 kcmil: 140 lb-in
- Also referenced as
- 3VA9463-0JA12 (common misprint)
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8538.90
Cross References
- EAN 4042949007982
- SAP 1000661528
- Code 8495461
- Often cited as 3VA9463-0JA12 (misprint)
Product Documentation
More from Siemens
Siemens

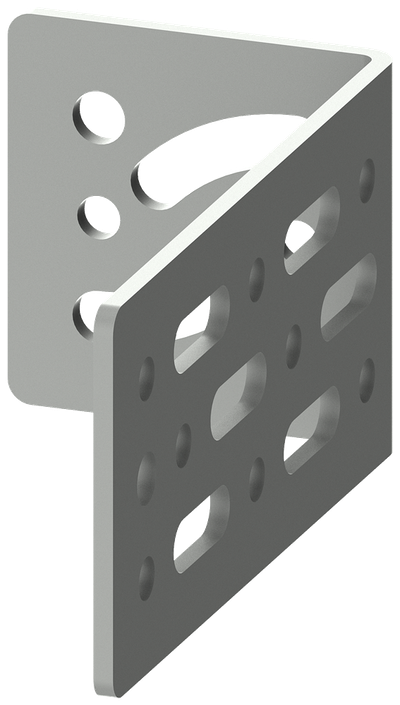

Siemens Mechanical accessorysdeler 8PQ9400-0BA01
Siemens

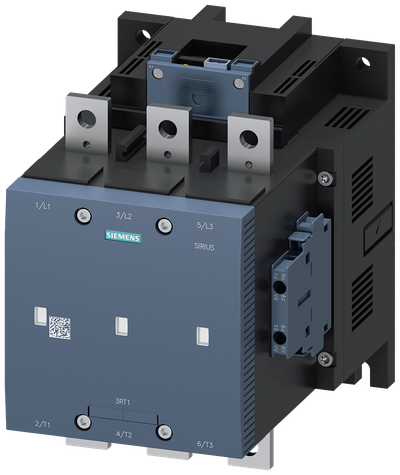

Siemens S12 Vacuum contactor, 250KW/400 3RT1276-6NP36
Siemens

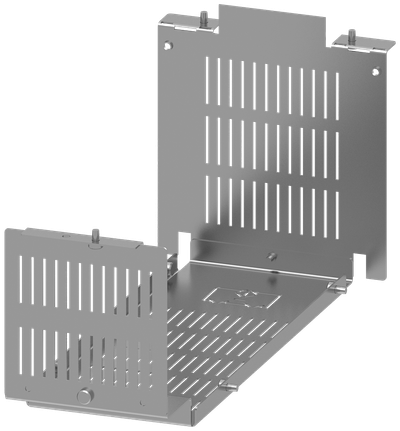

Siemens Formplate 2B for h 8PQ3000-1BA54
Siemens

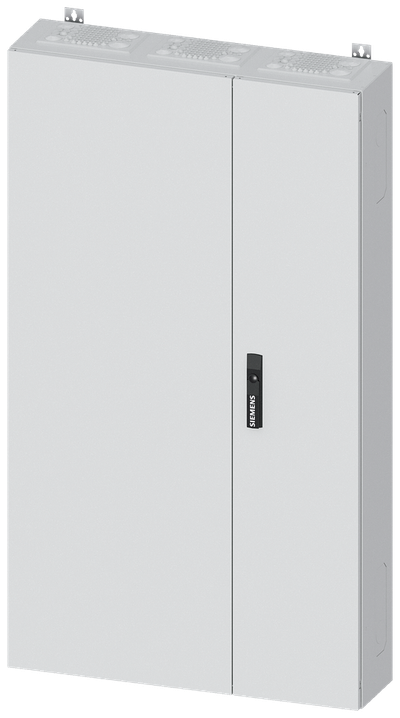

Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 1, H: 1400 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1122-7KA32
Siemens

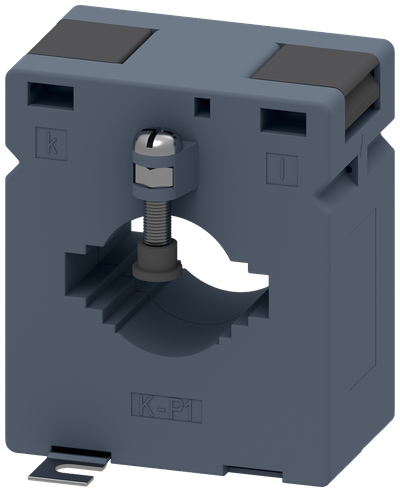

Siemens Current transformer 400/1A, 5VA K1,0 4NC5325-0CE21
Siemens

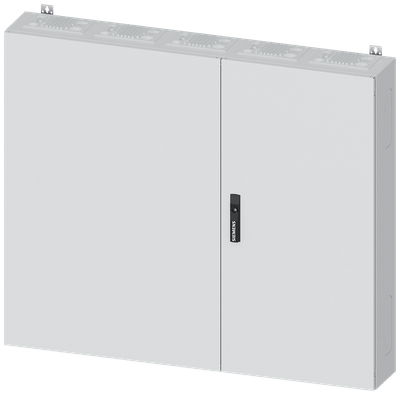

Siemens ALPHA 400, wall-mount cabinet, IP55, safety class 1, H: 1100 mm, W: 1300 mm, D: 210 mm, RAL 9016
8GK1123-5KA52
Siemens

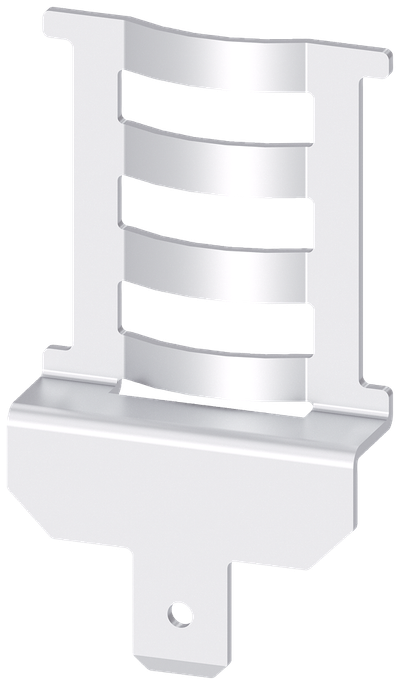

Siemens Connection terminal for NH00 box terminal,for auxiliary contacts 3NP1943-1BG40
Siemens

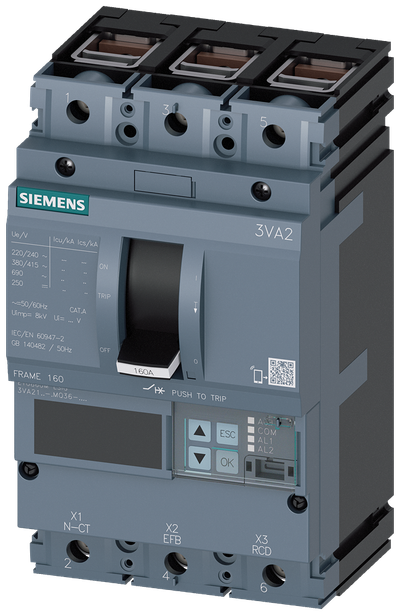

Siemens MCCB_3VA21_3P_55KA_ETU860M_,LSIG,IN=100A,IR=40A-100A,ISD=1,2-15XIN,II=15XIN,IG=0,2-1XIN,,terminal Cu
