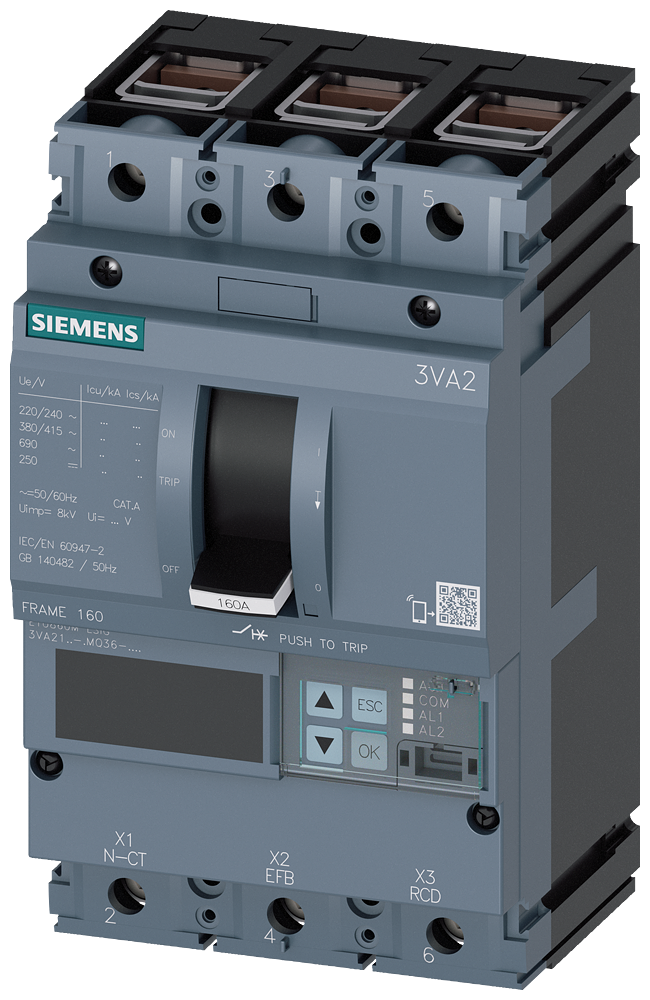

Siemens MCCB_3VA21_3P_55KA_ETU860M_,LSIG,IN=100A,IR=40A-100A,ISD=1,2-15XIN,II=15XIN,IG=0,2-1XIN,,terminal Cu
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2110-5MQ36-0AA0 MCCB_3VA21_3P_55KA_ETU860M_,LSIG,IN=100A,IR=40A-100A,ISD=1,2-15xIN,II=15xIN,IG=0,2-1xIN,,terminal Cu.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2110-5MQ36-0AA0
- EAN / GTIN
- 4042948831274
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 100 A
- Rated permanent current Iu
- 100 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Overload release current setting
- 40–100 A
- Rated voltage
- 690 V
- Power loss
- 10 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range short-term delayed short-circuit release
- 120–1500 A
- Adjustment range undelayed short-circuit release
- 300–1500 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- Yes
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948831274
- SAP 1000706092
- Code 8322363
Product Documentation
More from Siemens
Siemens
Siemens Alpha kit for Alpha 400, Alpha 630 and Alpha AS for 3X3VA10/11, 450X500 mm
8GK4730-2KK22
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 1.40...2.00 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-1BA15-2BB4
Siemens
Siemens 8UD,size 1/size 2,rotary control,grey,TEST-0-1
8UD17712AF01
Siemens
Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE28-0AP0
Siemens
Siemens Thermal Overload Relay, 2,2-3,2 A, Spring Clamp Connection (3RU2116-1DC0)
Siemens
Siemens Current transformer 400/5A 5VA K0,5
4NC52252DE21
Siemens
Siemens Contactor Relay, 3NO+1NC, DC 220V, Size S00, Screw Terminal Connection
3RH2131-1BM40
Siemens

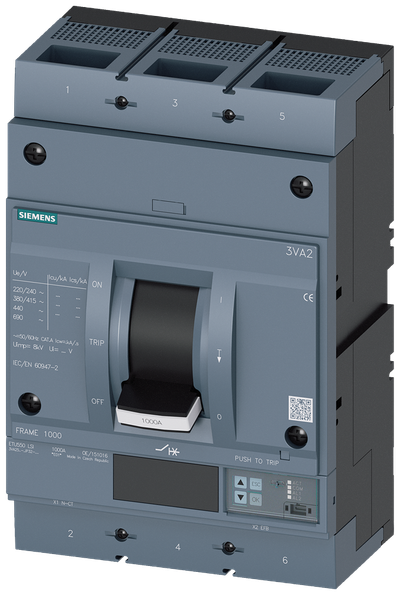

Siemens MCCB_3VA25_3P_85KA_ETU550,LSI PROTECTION, IN=800A, IR=320A-800A, ISD=0,6-10XIN, II=1,5-10XIN, bolt
