Siemens MCCB_3VA23_4P_55KA_ETU320,LI,IN=250A,IR=100A-250A,II=1,5-12XIN,,B
Pricing
Request a quote
We reply within 24 hours
Product Description

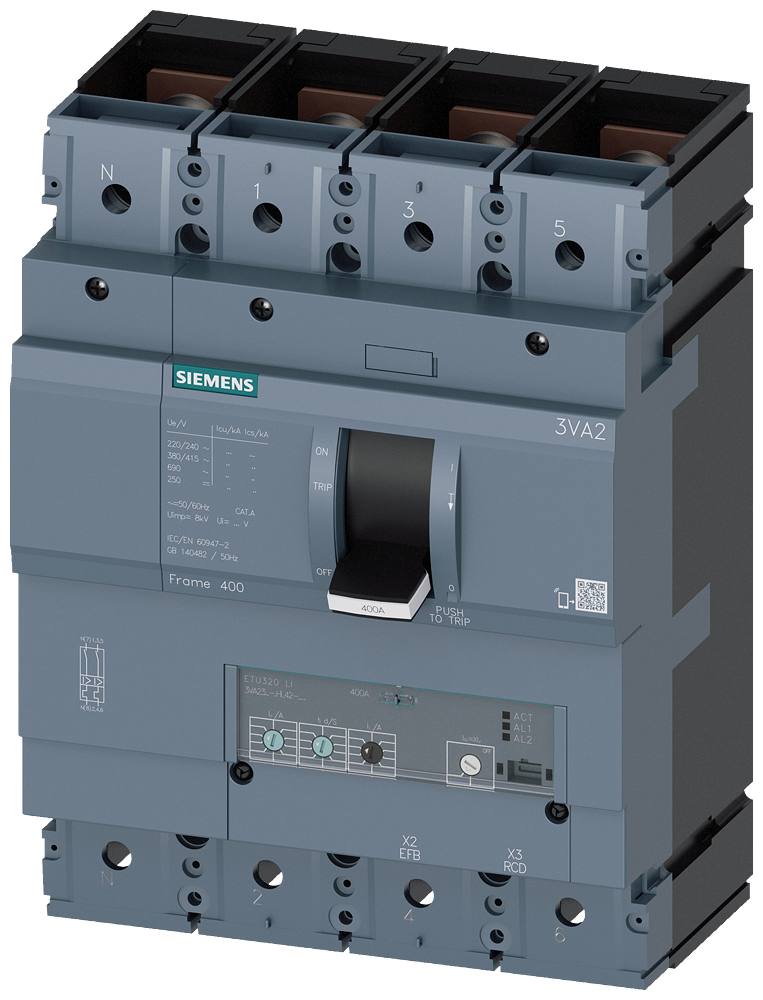

Siemens 3VA2325-5HL42-0AA0 MCCB_3VA23_4P_55KA_ETU320,LI,IN=250A,IR=100A-250A,II=1,5-12xIN,,B.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2325-5HL42-0AA0
- EAN / GTIN
- 4042948834350
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 250 A
- Rated permanent current Iu
- 250 A
- With integrated under voltage release
- No
- Number of poles
- 4
- Overload release current setting
- 100–250 A
- Rated voltage
- 690 V
- Power loss
- 37.5 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range undelayed short-circuit release
- 375–3000 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4042948834350
- SAP 1000705941
- Code 8196300
Product Documentation
