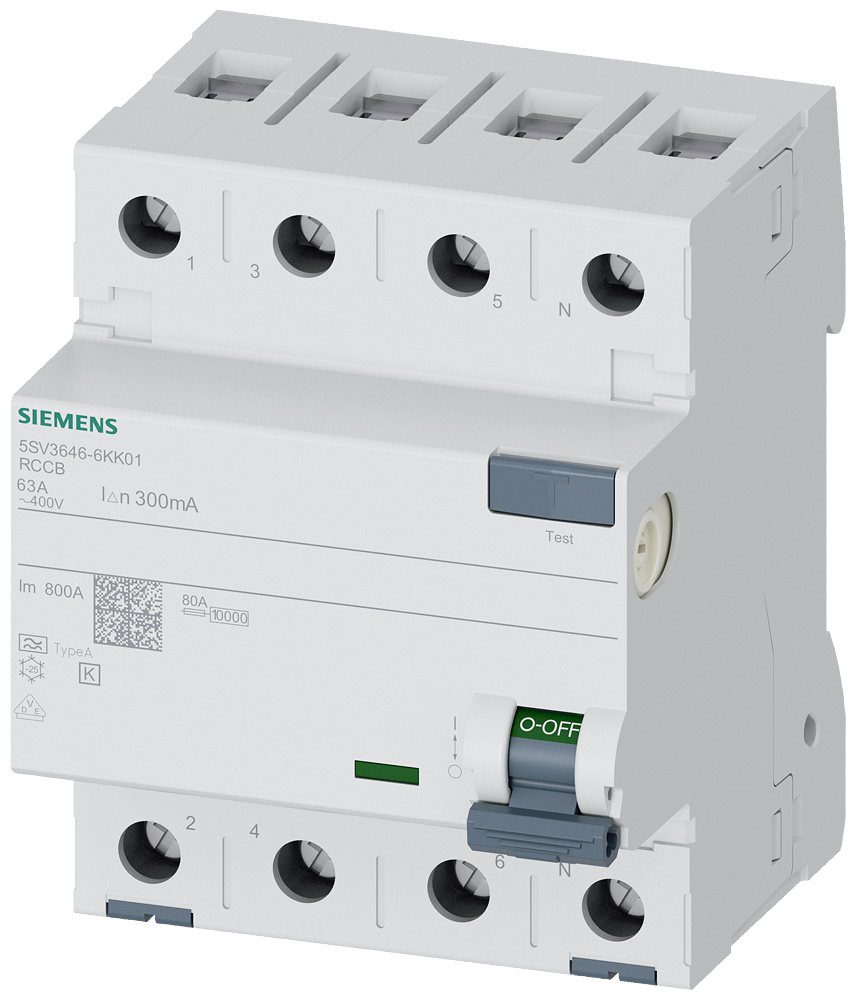

Siemens Residual current circuit breaker A 63/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, Short-Time Delayed K 5SV36466KK01
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV36466KK01 Residual current circuit breaker A 63/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 mm2, short-time delayed K.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV36466KK01
- EAN / GTIN
- 4001869430935
- HS code
- 8536.90
- Sales unit
- pcs
- Torque
- 2.5-3.0 Nm
- Conductor cross-section
- 1-35 mm²
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- Yes
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 0.75–35 mm²
- Connectable conductor cross section multi-wired
- 0.75–35 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–45 °C
- Additional equipment possible
- Yes
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430935
- SAP 1000710956
- Code 8225958
Product Documentation
