Siemens Variable-frequency drive for pump- and fan drive 6SL3220-3YE16-0AF0
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6SL3220-3YE16-0AF0 Variable-frequency drive for pump- and fan drive.
Technical Specifications
- Manufacturer part number (MPN)
- 6SL3220-3YE16-0AF0
- EAN / GTIN
- 4042948686737
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 73 mm
- Height
- 232 mm
- Depth
- 209 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 2
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces serial TTY
- 5
- Number of HW-interfaces other
- 6
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- No
- Number of interfaces PROFINET
- 2
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- No
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 550 Hz
- Max. output at linear load at rated output voltage
- 1.5 kW
- Max. output at quadratic load at rated output voltage
- 2.2 kW
- Relative symmetric net voltage tolerance
- -20 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Nominal output current I2N
- 6.1 A
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4042948686737
- SAP 1200338776
- Code 82335328
Product Documentation
More from Siemens
Siemens

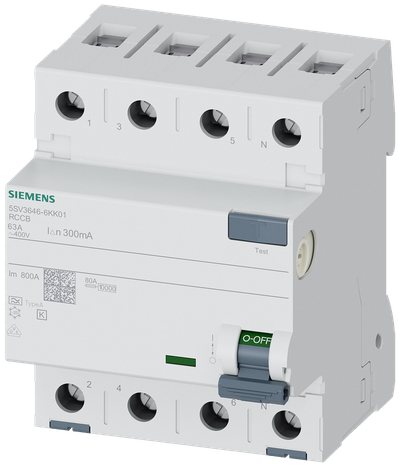

Siemens Residual current circuit breaker A 63/4, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2, Short-Time Delayed K 5SV36466KK01
Siemens
Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole B 6A
5SU1654-6KK06
Siemens

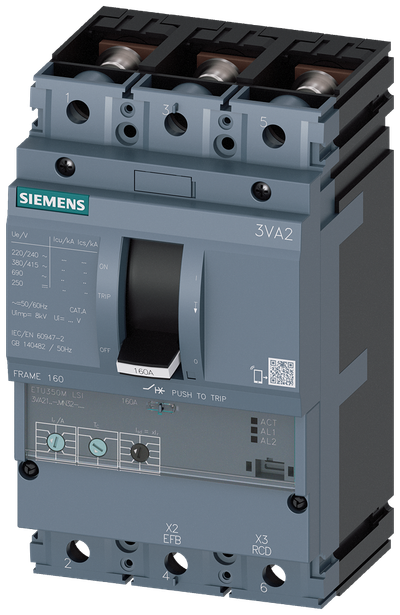

Siemens MCCB_3VA21_3P_55KA_ETU350M,LSI,IN=63A,IR=25,2A-63A,ISD=3-15XIR,II=15XIN,B
3VA2163-5MN32-0AA0
Siemens
Siemens SENTRON 5SY8163-7 Miniature Circuit Breaker 1-Pole C63A 25KA
Siemens

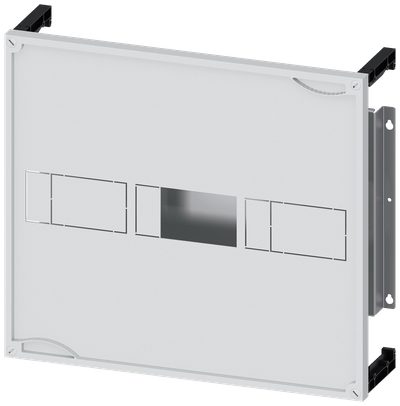

Siemens Alpha kit for Alpha 400, Alpha 630 and Alpha AS for 3X3VA20-22, 450X500 mm
8GK4730-3KK20
Siemens

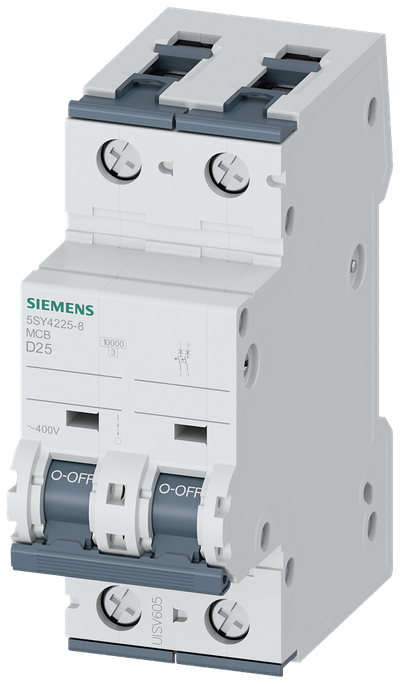

Siemens SENTRON 5SY4225-8 Miniature Circuit Breaker 2-Pole D25A 10KA
Siemens

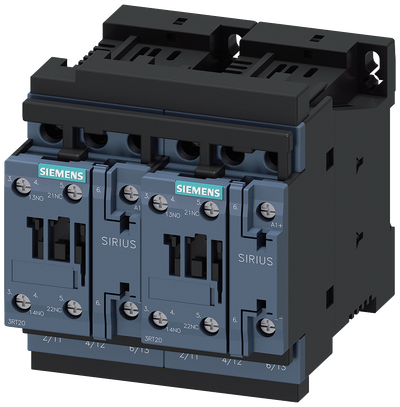

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 12 A, 5.5 kW / 400 V, 3-Pole, 24 V DC, screw terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1
3RA2324-8XB30-1BB4
Siemens

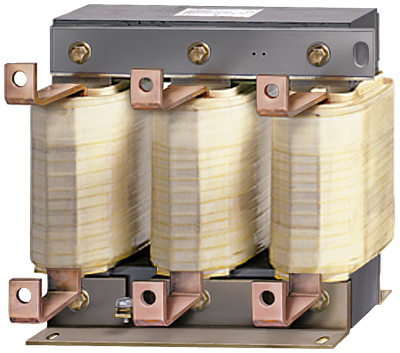

Siemens Micromaster 4 output choke 3AC400V 75A, FSE
