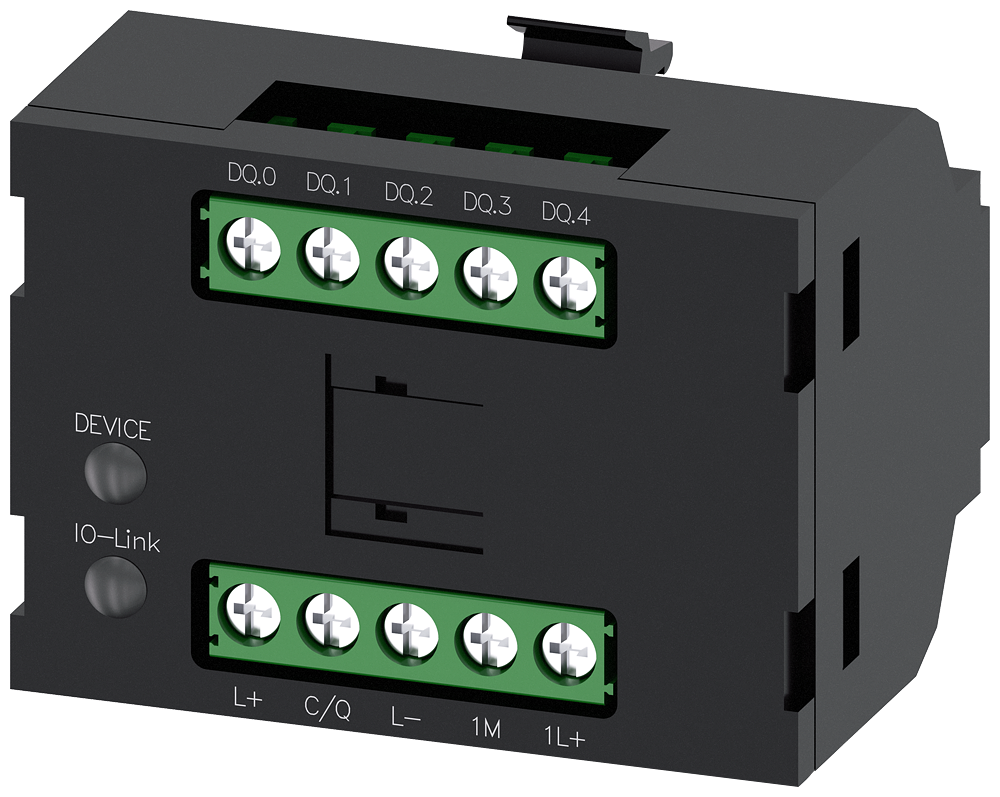

Siemens SIRIUS ACT Electronics module IO-Link for ID key-operated switch, with 5 pre-programmed electronic switches, controller and RFID authentication of the switching function, black, operating voltage 24 V DC, screw terminal, for front plate mounting, for industrial application in control cabinets and machines

Siemens 3SU1400-1GD10-1AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT ID key holder for IO-Link Plastic holder.

Manufacturer part number (MPN)

3SU1400-1GD10-1AA0 EAN / GTIN: 4011209946668 Sales unit: pcs Product brand name: SIRIUS ACT Product designation: Electronic module for ID key-operated switches Product type designation: 3SU1 Product extension optional light source: No Socket design: other Number of LEDs: 4 Insulation voltage rated value: 30 V Degree of pollution: 3 Type of voltage — of the operating voltage: DC Type of voltage — of the input voltage: DC Surge voltage resistance rated value: 0.8 kV Consumed current maximum: 49 mA Protection class IP: IP20, clamping screw tightened Reference code according to IEC 81346-2: P Operating voltage — rated value: 18 ... 30 V Operating voltage — at DC rated value: 24 V Operating voltage 1 at DC rated value: 24 V Protocol is supported IO-Link protocol: Yes IO-Link transfer rate: COM2 (38,4 kBaud) Point-to-point cycle time between master and IO-Link device minimum: 10 ms Type of voltage supply via input/output link master: Yes Data volume — of the address range of the inputs with cyclical transfer total: 2 byte Number of NC contacts for auxiliary contacts: 0 Number of NO contacts for auxiliary contacts: 5 Number of digital inputs: 0 Number of digital inputs — safety-related: 0 Number of digital outputs: 5 Output voltage at digital output at DC rated value: 23.5 V Output current per output: 250 mA Type of electrical connection: screw terminal Type of connectable conductor cross-sections — solid without core end processing: 1x (0.2 ... 2.5 mm²) Type of connectable conductor cross-sections — finely stranded with core end processing: 1x (0.25 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) Type of connectable conductor cross-sections — finely stranded without core end processing: 1x (0.2 ... 2.5 mm²), 2x (0.2 ... 0.75 mm²) Type of connectable conductor cross-sections — for AWG cables: 1x (26 ... 14) Tightening torque with screw-type terminals: 0.4 N·m Product function parameterizable: Yes MTBF — at 70 °C: 138 a MTBF — at full load at 25 °C: 141 a Touch protection against electrical shock: finger-safe Ambient temperature — during operation: -25 ... +70 °C Ambient temperature — during storage: -40 ... +80 °C Fastening method: front plate mounting Fastening method — of modules and accessories: Front plate mounting Installation/ mounting/ dimensions — height: 36 mm Installation/ mounting/ dimensions — width: 50 mm Installation/ mounting/ dimensions — depth: 36.4 mm Required spacing with side-by-side mounting — forwards: 100 mm Required spacing with side-by-side mounting — backwards: 100 mm Required spacing with side-by-side mounting — upwards: 100 mm Required spacing with side-by-side mounting — downwards: 100 mm Required spacing with side-by-side mounting — at the side: 100 mm Product function: IO-Link 24 V DC Country of origin: Netherlands

HS Code

8536.50

• EAN 4011209946668
• SAP 1000697266
• Code 8133218
