Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole C 16A
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU1654-7KK16 Residual current circuit breaker with overcurrent For Tn, Type A, D=70 mm Ifn 300ma,10kA, 1+N-Pole C 16A.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU1654-7KK16
- EAN / GTIN
- 4001869308241
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Rated current
- 16 A
- Breaking capacity
- 10 kA
- Power loss
- 2.8 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 10 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- Yes
- Mounting method
- DIN rail
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869308241
- SAP 1000013968
- Code 8106192
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-2NP30
Siemens
Siemens Industrial Monitor, 15" Touch, 5 meter cablelengde, DisplayPort/VGA, 24V DC
6AV7862-2BD00-0AA0
Siemens
Siemens SIRIUS ACT Potentiometer, compact, 22 mm, round, plastic, black, 47K ohm, with holder, screw terminal
3SU1200-2PT10-1AA0
Siemens
Siemens Residual current circuit breaker with overcurrent+afd, TN, 6KA, 18mm, C16
5SV6316-7KK16
Siemens
Siemens SENTRON 5SY7313-7 Miniature Circuit Breaker 3-Pole C13A 15KA
Siemens

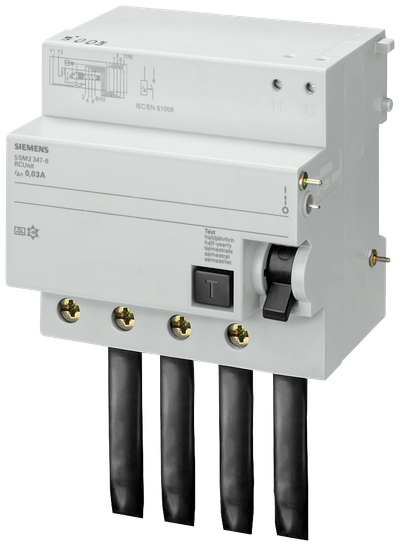

Siemens 5SM2347-6 RC Unit for 5SP4 Miniature Circuit Breaker — 4-Pole, Type A, in 100 A, 30 mA, 400 V AC
Siemens

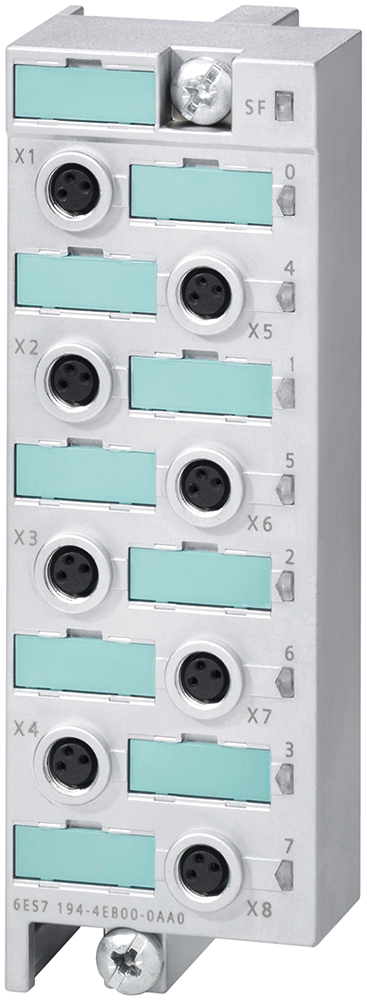

Siemens SIMATIC S7 automation module 6ES7194-4EB00-0AA0
