Siemens SENTRON,measuring instrument 7KT1666
Pricing
Request a quote
We reply within 24 hours
Product Description

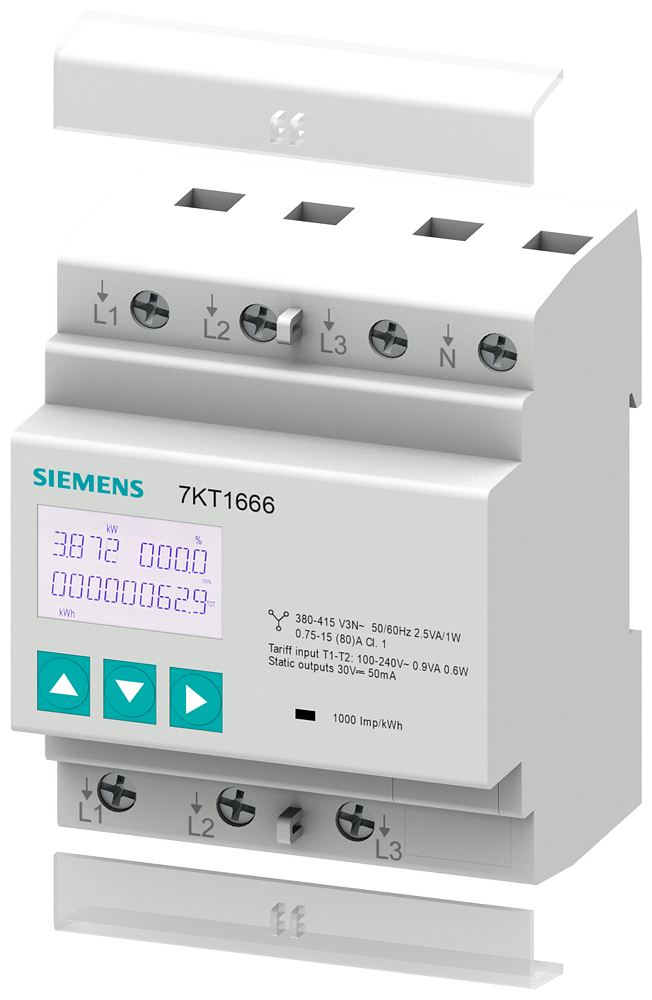

Siemens 7KT1666 SENTRON,measuring instrument7KM PAC1600,LCD,L-L:400V,L-N:230V,80A,standard mounting,3F,Modbus RTU/ASCII+MID.
Technical Specifications
- Manufacturer part number (MPN)
- 7KT1666
- EAN / GTIN
- 4001869563619
- Sales unit
- pcs
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 71.6 mm
- Model
- Direct measurement
- Height
- 90 mm
- Depth
- 63 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Frequency
- 45–66 Hz
- Max. current (Imax)
- 80 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 10
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Accuracy class
- C
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- With lock code
- Yes
- Nominal current (In)
- 80 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 4001869563619
- SAP 1200119904
- Code 81989189
Product Documentation
More from Siemens
Siemens

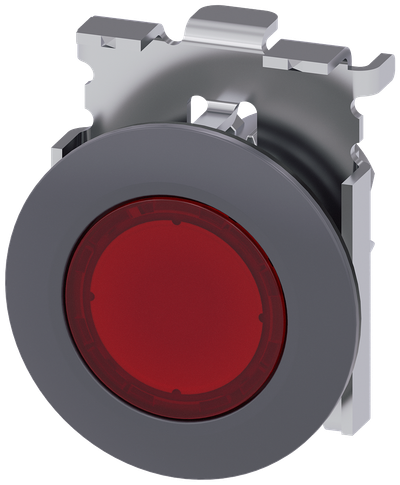

Siemens SIRIUS ACT Indicator lights, 30 mm, round, metal, matte, red, front ring for flush installation
3SU1061-0JD20-0AA0
Siemens

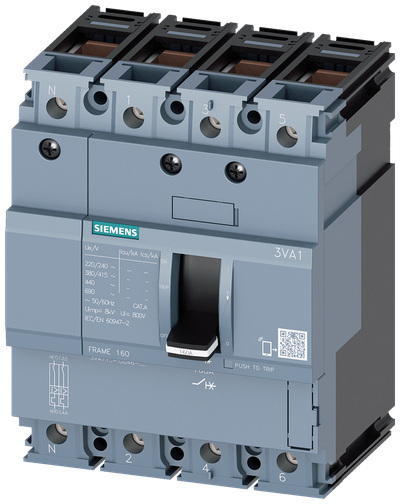

Siemens Circuit breaker 3VA11,55KA,4-Pole,TM210, fixed thermal and instantaneous release, 63A,frame clamp for Cu cable
3VA1163-5GD46-0AA0
Siemens

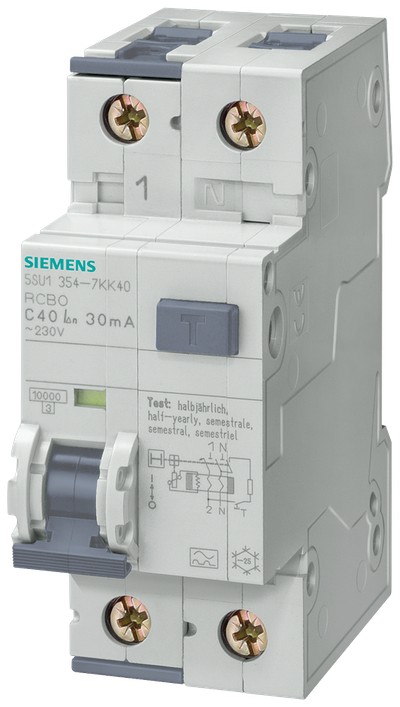

Siemens Residual current circuit breaker with overcurrent for Tn, Type A, D=70 mm Ifn 300MA,10KA, 1+N-Pole C 16A
5SU1654-7KK16
Siemens

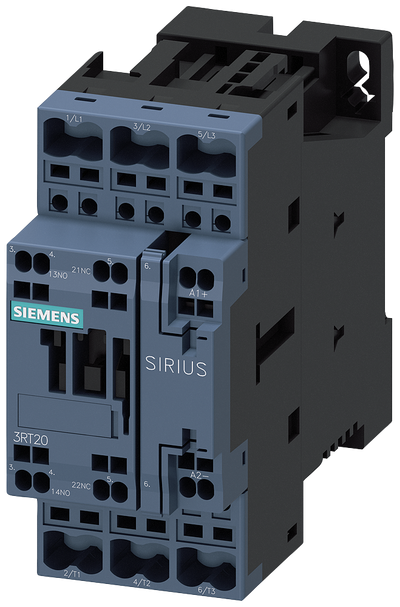

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-2NP30
Siemens

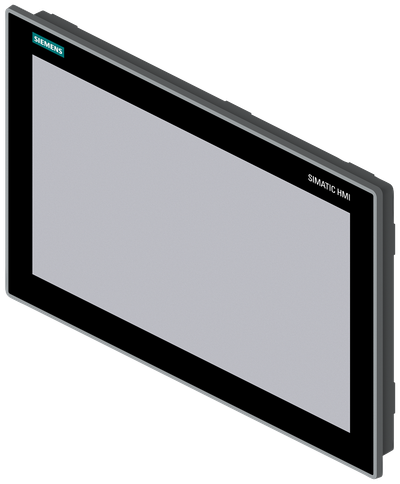

Siemens Industrial Monitor, 15" Touch, 5 meter cablelengde, DisplayPort/VGA, 24V DC
6AV7862-2BD00-0AA0
Siemens
Siemens SIRIUS ACT Potentiometer, compact, 22 mm, round, plastic, black, 47K ohm, with holder, screw terminal
3SU1200-2PT10-1AA0
Siemens

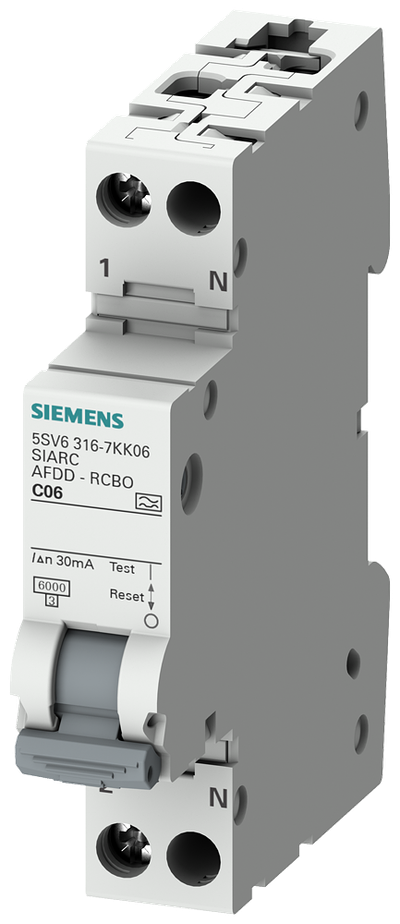

Siemens Residual current circuit breaker with overcurrent+afd, TN, 6KA, 18mm, C16
