Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, Enclosure top part yellow, with protective collar, 1 control point, without equipment, floor mounting, 1XM20 each on top and bottom
Pricing
Request a quote
We reply within 24 hours
Product Description

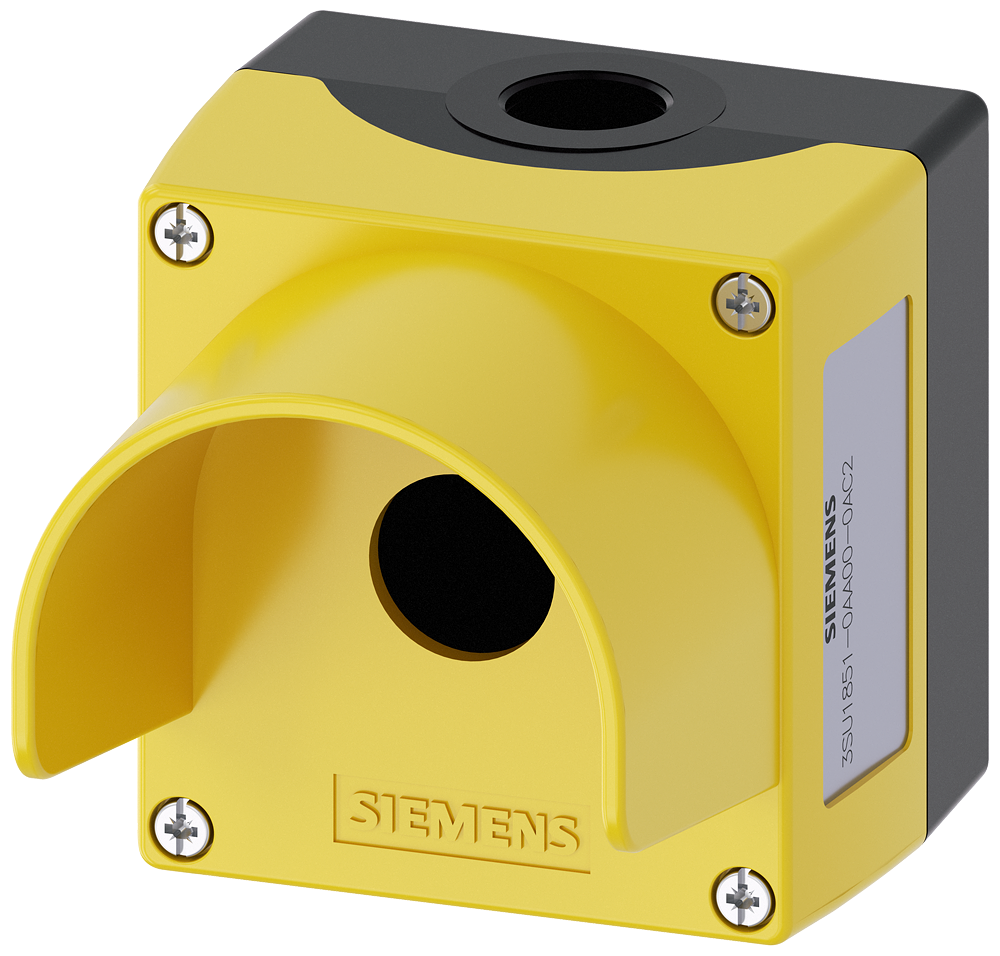

Siemens 3SU1851-0AA00-0AC2 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT Box - yellow metal with jacket Yellow emergency stop box with jacket.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1851-0AA00-0AC2
- EAN / GTIN
- 4011209969216
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Enclosures
- Product type designation
- 3SU1
- Design of the housing
- with protective collar
- Shape of the enclosure front
- Square
- Material of the enclosure
- metal
- Number of command points
- 1
- Product component protective collar
- Yes
- Color of the enclosure top part
- yellow
- Fastening method of the enclosure
- Vertical
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance for railway applications according to EN 61373
- Category 1, Class B
- Type of electrical connection on enclosure
- Cable routing above and below, both 1 x M20
- Tightening torque of fixing screws in the enclosure cover
- 1.5 ... 1.7 N·m
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method of modules and accessories
- Floor mounting
- Installation/ mounting/ dimensions — height
- 89.4 mm
- Installation/ mounting/ dimensions — width
- 85 mm
- Installation/ mounting/ dimensions — depth
- 112.5 mm
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Width
- 85 mm
- Height
- 89.4 mm
- Depth
- 112.5 mm
- Diameter openings
- 22.3 mm
- Number of command positions
- 1
- Colour housing cover
- Yellow
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP67/IP69K
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209969216
- SAP 1000688513
- Code 8297176
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9481-0WD40 — Terminal cover, 4-Pole, 3VA23 / 3VA24
Siemens
Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2041-4RA10
Siemens
Siemens 3LD, Main switch, 3-P, Iu:63 A, AC-23/400V: 22 kW,plastic IP65, 1NC, 1NO, rotary switch, black
3LD2565-1GP51
Siemens
Siemens 7KT5504
Siemens
Siemens 5TT4101-2 Impulse Relay 1 NO Contact, 230 V AC 16 A, 24 V AC Coil
Siemens
Siemens SIMATIC S7 automation module 6ES7534-7QE00-0AB0
Siemens
Siemens SIMATIC ET 200SP, CM 4XIO-LINK ST Communication module IO-Link Master V1.1
6ES7137-6BD00-0BA0
Siemens
Siemens SITR 7NG3211-0NN00
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3SU1851-0AA00-0AC2?
- 3SU1851-0AA00-0AC2 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3SU1851-0AA00-0AC2.
- What is the HS code for 3SU1851-0AA00-0AC2?
- The customs tariff (HS) code for 3SU1851-0AA00-0AC2 is 8538.90.
- Who manufactures 3SU1851-0AA00-0AC2?
- 3SU1851-0AA00-0AC2 is a Siemens product in the Control & Automation range.
- Is a datasheet available for 3SU1851-0AA00-0AC2?
- Yes — the 3SU1851-0AA00-0AC2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3SU1851-0AA00-0AC2?
- The minimum order quantity is 1.
- Is 3SU1851-0AA00-0AC2 available?
- Yes — 3SU1851-0AA00-0AC2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
