Siemens SITOP DC power supply 6EP3336-3SB00-0AX0
Pricing
Request a quote
We reply within 24 hours
Product Description

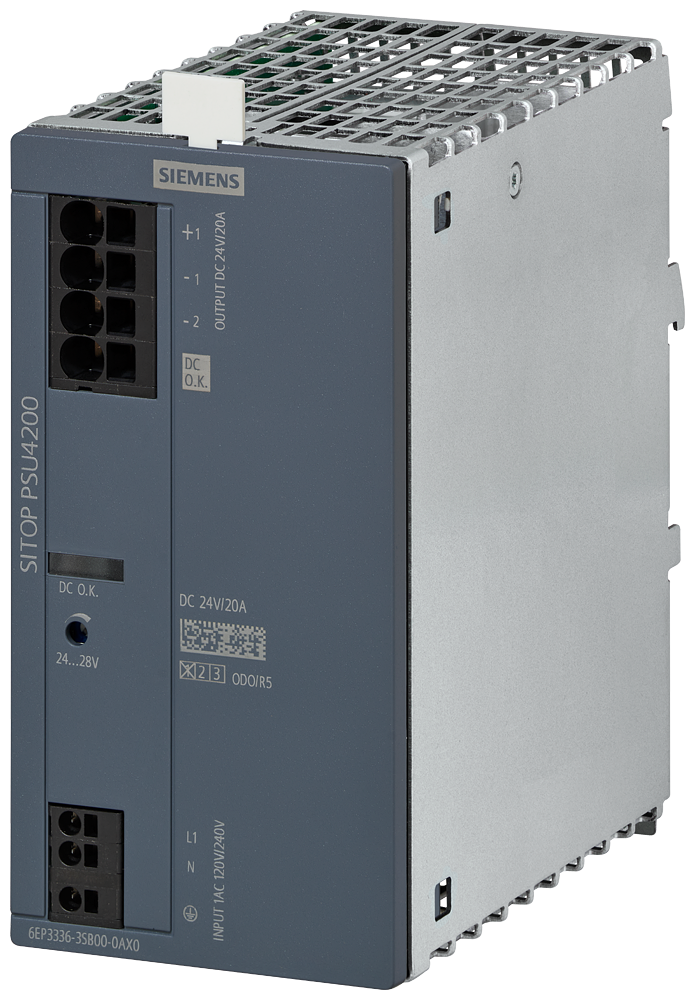

Siemens 6EP3336-3SB00-0AX0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU4200 1AC 5A input: 120 - 240V AC output: 24V DC/20A.
Technical Specifications
- Manufacturer part number (MPN)
- 6EP3336-3SB00-0AX0 EAN / GTIN: 4025515156277 Sales unit: pcs Type of the power supply network: 1-phase AC Supply voltage at AC — minimum rated value: 120 V Supply voltage at AC — maximum rated value: 240 V Wide range input: Yes Buffering time for rated value of the output current in the event of power failure minimum: 15 ms Operating condition of the mains buffering: at Vin = 120/240 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 4.5 A Input current — at rated input voltage 230 V: 2.4 A Current limitation of inrush current at 25 °C maximum: 20 A I2t value maximum: 3 A²·s Fuse protection type: 6.3 A Fuse protection type in the feeder: Recommended miniature circuit breaker: from 10 A characteristic C to from 16 A characteristic C Voltage curve at output: Controlled, isolated DC voltage Output voltage at DC rated value: 24 V Output voltage adjustable: Yes; via potentiometer Adjustable output voltage: 24 ... 28 V Relative overall tolerance of the voltage: 3 % Residual ripple — maximum: 150 mV Display version for normal operation: Green LED for 24 V OK Type of signal at output: Signal contact (signal load capacity: 10 mA) for DC OK Behavior of the output voltage when switching on: No overshoot of Vout (soft start) Output current — rated value: 20 A Output current — rated range: 0 ... 20 A; +60 ... +70 °C: Derating 3%/K Supplied active power typical: 480 W Bridging of equipment: Yes Efficiency in percent: 93 % Power loss [W] — at rated output voltage for rated value of the output current typical: 37 W Design of the overvoltage protection: < 32 V Property of the output short-circuit proof: Yes Design of short-circuit protection: Shutdown and periodic restart attempts Enduring short circuit current RMS value — typical: 6 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Operating resource protection class: Class I Leakage current — maximum: 0.7 mA Protection class IP: IP20 Standard — for emitted interference: EN 55032 Class A Standard — for interference immunity: EN 61000-6-2 MTBF at 40 °C: 1 065 000 h Ambient temperature — during operation: -25 ... +70 °C; with natural convection Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection: push-in terminals Connection method — at input: L, N PE: push-in for 0.5 ... 4 mm² Connection method — at output: +, -: push-in for 0.5 ... 6 mm² Width × height × depth of the enclosure: 70 × 135 × 125 mm Installation width × mounting height: 70 mm × 225 mm Fastening method: Snaps onto DIN rail EN 60715 35x7.5/15 Mechanical data — net weight: 0.93 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 20 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 20 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 240 V Rated supply voltage AC 60 Hz: 120 V Output voltage stabilized: Yes Power output: 480 W Stabilized: Yes Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 70 mm Built-in height: 225 mm Direct mounting possible: No Width: 70 mm Height: 135 mm Depth: 125 mm Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Austria
Standards & Compliance
- HS Code
- 8530.90
Cross References
- EAN 4025515156277
- SAP 1200746843
- Code 83882761
Product Documentation
More from Siemens

Siemens
Siemens SENTRON 5SY5225-7 Miniature Circuit Breaker 2-Pole C25A 10KA

Siemens
Siemens Alpha 400 Din, Panel board Recessed mounting, Up-Cabinet, Colour Ral 9016, IP31, SK1, H=1400 B=800 D=210
8GK1121-7KK32

Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material metal, Enclosure top part yellow, with protective collar, 1 control point metal, A=EMERGENCY STOP mushroom pushbutton red, 40 mm, rotate-to-unlatch, 1 NC, screw terminal, floor mounting, 1XM20 each on top and bottom
3SU1851-0NA00-2AC2

Siemens
Siemens SITOP DC power supply 6EP3337-8SB00-0AY0

Siemens
Siemens SIMATIC S7 automation module 6ES7431-0HH00-0AB0

Siemens
Siemens MCCB_3VA21_3P_55KA_ETU320,LI,IN=160A,IR=64A-160A,II=1,5-10XIN,B
3VA2116-5HL320-0AA0

Siemens
Siemens Plug-In Kommunikasjons Module PAC RS485 for PAC 3200 - PAC 4200
7KM9300-0AM000-0AA0

Siemens
Siemens SIRIUS ACT Mushroom pushbutton, 22 mm, round, plastic, black, 40 mm, momentary contact type
3SU1000-1BD10-0AA0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6EP3336-3SB00-0AX0?
- 6EP3336-3SB00-0AX0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 6EP3336-3SB00-0AX0.
- What is the HS code for 6EP3336-3SB00-0AX0?
- The customs tariff (HS) code for 6EP3336-3SB00-0AX0 is 8530.90.
- Who manufactures 6EP3336-3SB00-0AX0?
- 6EP3336-3SB00-0AX0 is a Siemens product in the Control & Automation range.
- Is a datasheet available for 6EP3336-3SB00-0AX0?
- Yes — the 6EP3336-3SB00-0AX0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6EP3336-3SB00-0AX0?
- The minimum order quantity is 1.
- Is 6EP3336-3SB00-0AX0 available?
- Yes — 6EP3336-3SB00-0AX0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
