Siemens SITOP DC power supply 6EP3337-8SB00-0AY0

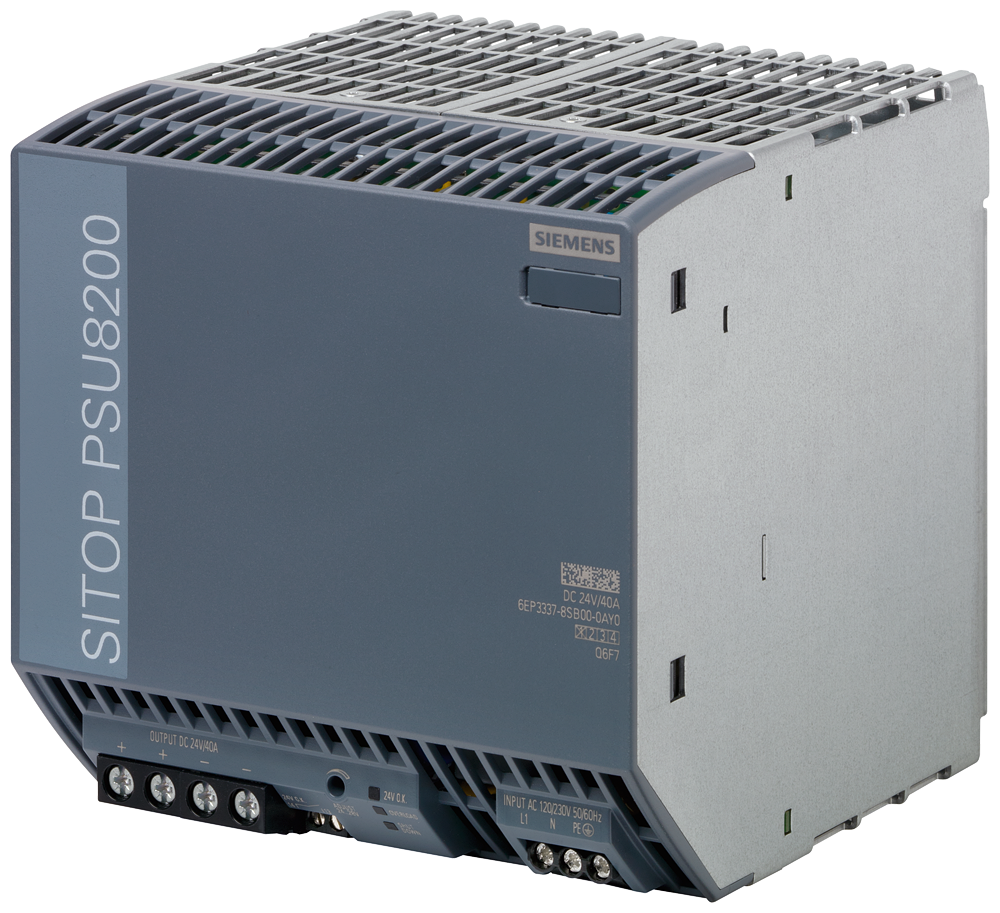

Siemens 6EP3337-8SB00-0AY0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU8200 1AC 40A input: 120/230V output: 24V DC/40A.

Manufacturer part number (MPN)

6EP3337-8SB00-0AY0 EAN / GTIN: 4025515154747 Sales unit: pcs Type of the power supply network: 1-phase and 2-phase AC Supply voltage: 120 V/230 V Input voltage 1 at AC: 85 ... 132 V Input voltage 2 at AC: 170 ... 264 V Buffering time for rated value of the output current in the event of power failure minimum: 25 ms Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 15 A Input current — at rated input voltage 230 V: 9 A Current limitation of inrush current at 25 °C maximum: 50 A I2t value maximum: 8 A²·s Voltage curve at output: Controlled, isolated DC voltage Output voltage at DC rated value: 24 V Output voltage adjustable: Yes; via potentiometer Adjustable output voltage: 24 ... 28 V; max. 960 W Relative overall tolerance of the voltage: 3 % Residual ripple — maximum: 100 mV Display version for normal operation: Green LED for 24 V OK; LED yellow for overload; LED red for short-circuit or latching shutdown Type of signal at output: Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" Output current — rated value: 40 A Output current — rated range: 0 ... 40 A; +60 ... +70 °C: Derating 3%/K Supplied active power typical: 960 W Short-term overload current — at short-circuit during operation typical: 120 A Efficiency in percent: 92 % Power loss [W] — at rated output voltage for rated value of the output current typical: 82 W Design of the overvoltage protection: < 32 V Property of the output short-circuit proof: Yes Design of short-circuit protection: Alternatively, constant current characteristic approx. 41 A or latching shutdown Enduring short circuit current RMS value — typical: 41 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Operating resource protection class: Class I Leakage current — maximum: 0.1 mA Protection class IP: IP20 Standard — for emitted interference: EN 55022 Class B Standard — for interference immunity: EN 61000-6-2 MTBF at 40 °C: 838 156 h Shipbuilding approval: Yes Ambient temperature — during operation: -25 ... +70 °C; with natural convection Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection: screw terminal Connection method — at input: L, N PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded Connection method — at output: +, -: 2 screw terminals each for 0.5 ... 10 mm² Width × height × depth of the enclosure: 145 × 145 × 150 mm Installation width × mounting height: 150 mm × 225 mm Fastening method: Snaps onto DIN rail EN 60715 35x15 Mechanical data — net weight: 3.1 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 40 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 40 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 230 V Rated supply voltage AC 60 Hz: 120 V Output voltage stabilized: Yes Power output: 960 W Stabilized: Yes Type of electric connection: Screw connection Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 150 mm Built-in height: 225 mm Direct mounting possible: No Width: 145 mm Height: 145 mm Depth: 150 mm Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Austria

HS Code

8530.90

• EAN 4025515154747
• SAP 1200020767
• Code 81398387
