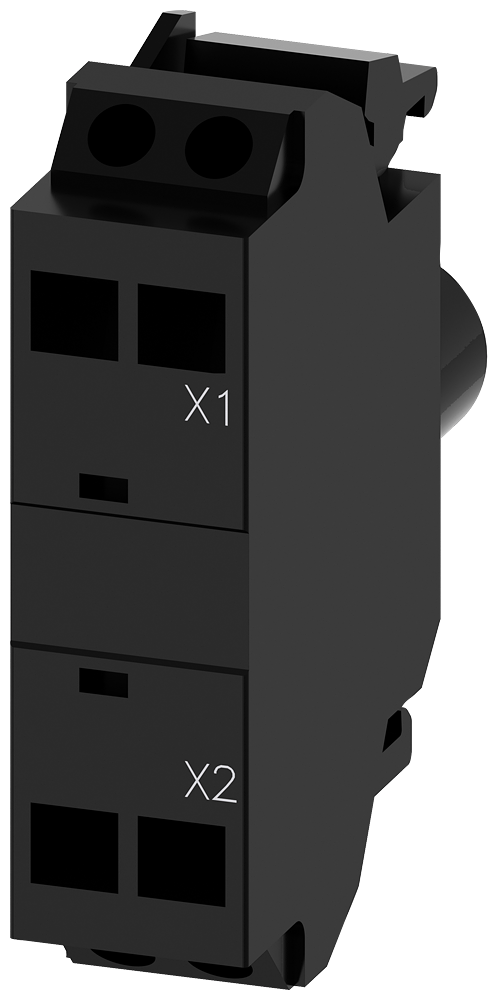

Siemens SIRIUS ACT LED module with integrated LED 24 V AC/DC, green, Spring-loaded terminal, for front plate mounting

Siemens 3SU1401-1BB40-3AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT,Green,24V AC/DC LED module,with quick-connect terminals.

Manufacturer part number (MPN)

3SU1401-1BB40-3AA0

EAN / GTIN

4011209942998

Sales unit

pcs

Package quantity

5 pcs

Product brand name

SIRIUS ACT

Product designation

LED module

Product type designation

3SU1

Product component — diode

Yes

Product component — lamp transformer

No

Product component — light source

Yes

Product component — series resistor

No

Insulation voltage rated value

320 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Type of voltage of the operating voltage — for actuation

AC/DC

Surge voltage resistance rated value

4 kV

Consumed current maximum

25 mA

Protection class IP — of the enclosure

IP40

Protection class IP — of the terminal

IP20

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Shock resistance — for railway applications according to EN 61373

Category 1, Class B

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Vibration resistance — for railway applications according to EN 61373

Category 1, Class B

Operating period typical

100 000 h

Reference code according to IEC 81346-2

P

At AC — at 50 Hz rated value

24 V

At AC — at 60 Hz rated value

24 V

At AC — at DC rated value

24 V

Relative positive tolerance of the operating voltage

25 %

Relative negative tolerance of the operating voltage

30 %

Inrush current maximum

2 A

Type of electrical connection

spring-loaded terminals

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Connectable conductor cross-section finely stranded with core end processing

0.25 ... 0.75 mm²

Type of light source

LED

Color of the light source

green

Light intensity

900 ... 1 400 mcd

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Fastening method — of modules and accessories

Front plate mounting

Installation/ mounting/ dimensions — height

36 mm

Installation/ mounting/ dimensions — width

9.8 mm

Installation/ mounting/ dimensions — depth

29.4 mm

Lamp holder

None

Colour light source

Green

Lamp type

LED

Connection type auxiliary circuit

Spring clamp connection

Voltage type for actuating

AC/DC

Country of origin

Germany

HS Code

8531.80
