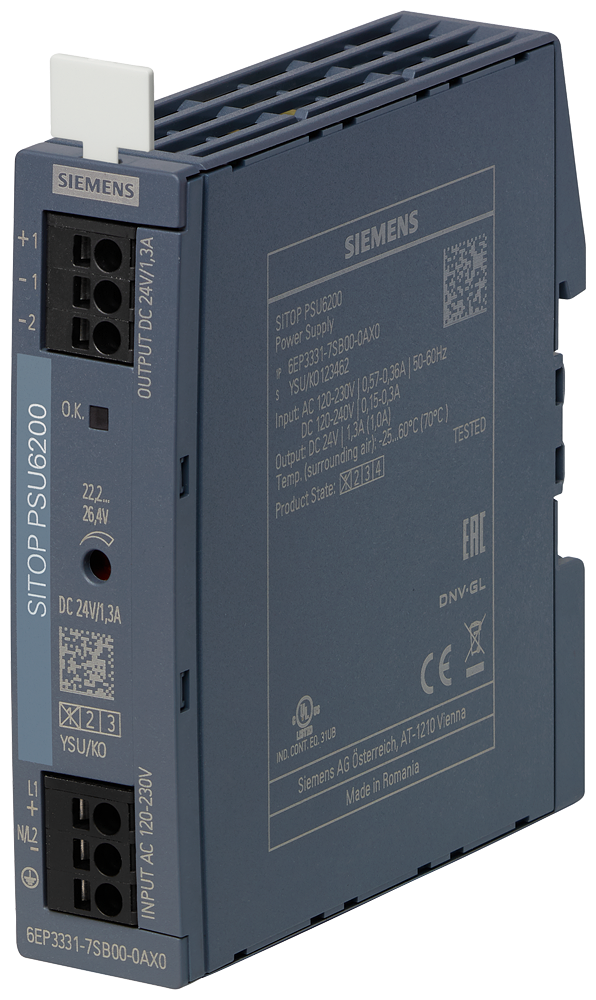

Siemens SITOP DC power supply 6EP3331-7SB00-0AX0

Siemens 6EP3331-7SB00-0AX0 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU6200 1AC 1.3A input: 120 - 230V output: 24V DC/1.3A.

Manufacturer part number (MPN)

6EP3331-7SB00-0AX0 EAN / GTIN: 4025515155126 Sales unit: pcs Type of the power supply network: 1-phase AC or DC Supply voltage at AC — minimum rated value: 120 V Supply voltage at AC — maximum rated value: 240 V Supply voltage at AC — initial value: 85 V Supply voltage at AC — full-scale value: 264 V Supply voltage at DC: 120 ... 240 V Input voltage at DC: 110 ... 275 V Overvoltage overload capability: 300 V AC for 30 s Buffering time for rated value of the output current in the event of power failure minimum: 150 ms Operating condition of the mains buffering: at Vin = 240 V Line frequency: 50/60 Hz Input current — at rated input voltage 120 V: 0.6 A Input current — at rated input voltage 240 V: 0.3 A Current limitation of inrush current at 25 °C maximum: 32 A Fuse protection type: 3.15 A Fuse protection type in the feeder: Circuit breaker from 4 A characteristic C/6 A characteristic B to 16 A characteristic C or circuit breaker 3RV2011-1EA10 (setting 4 A) or 3RV2711-1ED10 (UL 489) Number of outputs: 1 Output voltage at DC rated value: 24 V Output voltage — at output 1 at DC rated value: 24 V Adjustable output voltage: 22.2 ... 26.4 V; max. 31.2 W Relative overall tolerance of the voltage: 3 % Relative control precision of the output voltage — on slow fluctuation of input voltage: 0.1 % Relative control precision of the output voltage — on slow fluctuation of ohm loading: 0.1 % Residual ripple — maximum: 30 mV Voltage peak — maximum: 30 mV Voltage peak — typical: 20 mV Display version for normal operation: Green LED for 24 V OK Behavior of the output voltage when switching on: Overshoot of Vout approx. 3 % Response delay maximum: 1 s Voltage increase time of the output voltage — typical: 50 ms Output current — rated value: 1.3 A Output current — rated range: 0 ... 1.3 A; +60 ... +70 °C: Derating 2.5%/K Supplied active power typical: 31.2 W Short-term overload current — on short-circuiting during the start-up typical: 1.3 A Short-term overload current — at short-circuit during operation typical: 1.3 A Efficiency in percent: 86.3 % Power loss [W] — at rated output voltage for rated value of the output current typical: 5 W Power loss [W] — during no-load operation maximum: 0.8 W Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical: 2 % Setting time — load step 10 to 90% typical: 0.5 ms Setting time — load step 90 to 10% typical: 0.5 ms Setting time — maximum: 1 ms Design of the overvoltage protection: < 32 V Design of short-circuit protection — typical: 1.6 A Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Leakage current — maximum: 3.5 mA Protection class IP: IP20 Ambient temperature — during operation: -25 ... +70 °C; with natural convection Ambient temperature — during transport: -40 ... +85 °C Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection — at input: L1/+, L2/N/- PE: push-in for 0.5 ... 2.5 mm² single-core/finely stranded Type of electrical connection — at output: +1, -1, -2: push-in for 0.5 ... 2.5 mm² Width × height × depth of the enclosure: 25 × 100 × 88 mm Installation width × mounting height: 25 mm × 200 mm Required spacing — top: 50 mm Required spacing — bottom: 50 mm Mechanical data — net weight: 0.2 kg Other information: Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) Voltage type (supply voltage): AC/DC 1st secondary output voltage: 24 V Max. output current 1: 1.3 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 1.3 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 240 V Rated supply voltage AC 60 Hz: 120 V Rated supply voltage DC: 120–240 V Output voltage stabilized: Yes Power output: 31.2 W Stabilized: Yes Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 25 mm Built-in height: 200 mm Direct mounting possible: No Width: 25 mm Height: 100 mm Depth: 88 mm Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Austria

HS Code

8530.90

• EAN 4025515155126
• SAP 1200271101
• Code 82243073
