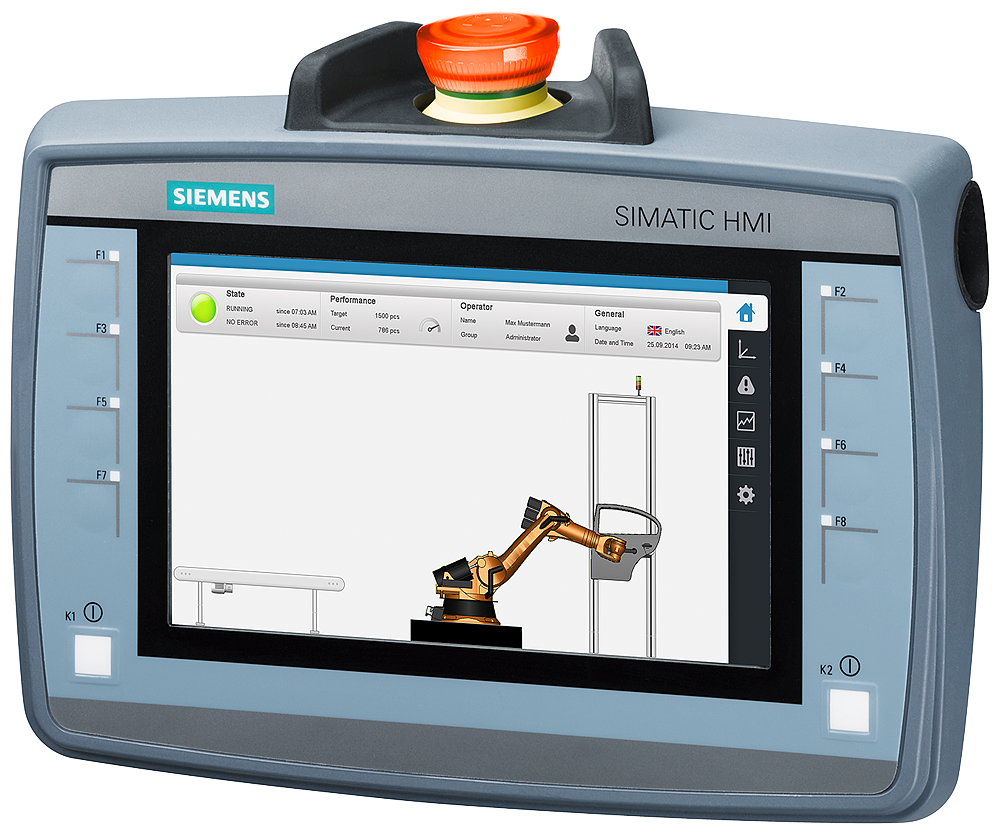

Siemens KTP700F Mobile Panel 7", Profinet and Profisafe interface, with emergency stop

Siemens 6AV2125-2GB23-0AX0 KTP700F Mobile Panel 7", Profinet and Profisafe interface, with emergency stop.

Manufacturer part number (MPN)

6AV2125-2GB23-0AX0

EAN / GTIN

4047623404729

Sales unit

pcs

Product type designation

KTP700F Mobile

Screen diagonal

7 in

Number of colors

16 777 216

Resolution (pixels) — Horizontal image resolution

800 pixel

Resolution (pixels) — Vertical image resolution

480 pixel

Backlighting — MTBF backlighting (at 25 °C)

50 000 h

Backlighting — Backlight dimmable

Yes; 0-100 %

Function keys — Number of function keys

8

Function keys — Number of function keys with LEDs

8

DP direct LEDs (LEDs as S7 output I/O) — F1...Fx

8

Direct keys (keys as S7 input I/O) — F1...Fx

8

Direct keys (keys as S7 input I/O) — Direct keys (touch buttons as S7 input I/O)

32

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

350 mA

Starting current inrush I²t

0.135 A²·s

Active power input, typ.

8.5 W

Memory available for user data

12 Mbyte

Number of industrial Ethernet interfaces

1

Number of PROFINET interfaces

1

Number of RS 485 interfaces

0

Number of RS 422 interfaces

0

Number of RS 232 interfaces

0

Number of USB interfaces

1; USB 2.0

Number of wireless interfaces

0

Number of SD card slots

1

Highest safety class achievable in safety mode — SIL acc. to IEC 61508

SIL 3

Free fall — Fall height, max.

1.2 m

Ambient temperature during operation — min.

0 °C

Ambient temperature during operation — max.

45 °C

Ambient temperature during storage/transportation — min.

-20 °C

Ambient temperature during storage/transportation — max.

60 °C

Relative humidity — Operation, max.

90 %

Online languages — Number of online/runtime languages

32

Help system — Number of characters per info text

500

Multiproject — Number of projects (internal)

0

Multiproject — Number of projects (external)

0

Message system — Number of alarm classes

32

Bit messages — Number of bit messages

4 000

Analog messages — Number of analog messages

200

Analog messages — Number of characters per message

80

Analog messages — Number of process values per message

8

Message buffer — Number of entries

1 024

Recipe management — Number of recipes

300

Recipe management — Size of internal recipe memory

2 Mbyte

Variables — Number of variables per device

2 048

Variables — Number of variables per screen

400

Images — Number of configurable images

500

Image objects — Number of objects per image

400

Complex image objects — Number of complex objects per screen

20

Lists — Number of text lists per project

500

Lists — Number of entries per text strip

500

Lists — Number of graphics lists per project

500

Lists — Number of entries per graphics strip

500

Archiving — Number of archives per device

50

Archiving — Number of entries per archive

20 000

Security — Number of user groups

50

Security — Number of user rights

32

Security — Number of users

50

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces industrial Ethernet

1

Number of interfaces PROFINET

1

Number of HW-interfaces USB

1

Type of display

TFT

Number of colours of the display

16777216

Number of pixels, horizontal

800

Number of pixels, vertical

480

Usable project memory/user memory

12000 kByte

Number of function buttons, programmable

8

Number of buttons with LED

8

Number of password levels

50

Number of online languages

32

Degree of protection (IP)

IP65

Max. fall height according to IEC 60068-2-32

1.2 m

Width

248.4 mm

Height

195 mm

Depth

89 mm

Weight

1.3 kg

Country of origin

Germany

HS Code

8537.10

• EAN 4047623404729
• SAP 1000722422
• Code 8279432
