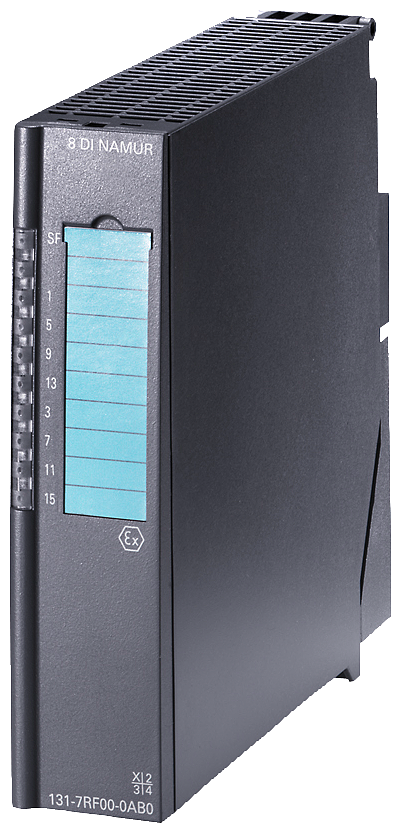

Siemens SIMATIC, electronic module, for ET200ISP, 8 DI NAMUR, Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb

Siemens 6ES7131-7RF00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform.

Manufacturer part number (MPN)

6ES7131-7RF00-0AB0

EAN / GTIN

4019169131568

Sales unit

pcs

Product type designation

8DI NAMUR

HW functional status

12

Firmware version

V1.1.1

Rack mounting

No

Front mounting

Yes

Rail mounting

Yes

Wall mounting/direct mounting

No

Type of supply voltage

DC

Permissible range, lower limit (DC)

20.4 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, typ.

80 mA

From load voltage (power bus), max.

90 mA

Power loss, typ.

1.1 W

Fieldbus connection via separate transceiver

Yes

Number of digital inputs

8

Counter — Number, max.

2; normal and periodic count function

Counter — Counting frequency, max.

5 kHz; with a cable length of 20 m: 5 kHz; with a cable length of 100 m: 1 kHz; with a cable length of 200 m: 500 Hz

Input voltage — Type of input voltage

DC

Input current — for signal "0", max. (permissible quiescent current)

1.2 mA

Input current — for signal "1", min.

2.1 mA

Input delay (for rated value of input voltage) — Delay time for signal change, min.

2.8 ms

Input delay (for rated value of input voltage) — Delay time for signal change, max.

3.5 ms

For standard inputs — at "0" to "1", min.

2.8 ms

For standard inputs — at "0" to "1", max.

3.5 ms

For standard inputs — at "1" to "0", min.

2.8 ms

For standard inputs — at "1" to "0", max.

3.5 ms

Cable length — shielded, max.

500 m

Number of connectable encoders, max.

8

Number of PROFINET interfaces

0

Number of RS 485 interfaces

0

Diagnoses — Wire break

Yes; I load < 0.2 mA with NAMUR encoders/encoders and NAMUR changeover contact/encoders to DIN 19234

Diagnoses — Short-circuit

Yes; R load < 150 ohms with NAMUR sensor/sensor and NAMUR changeover contact/sensor to DIN 19234

Frequency measurement

Yes; (Gate time) 50 ms; 200 ms; 1 s

Frequency measurement — Number of frequency meters

2

Module for Ex(i) protection

Yes; for more Co/Lo combinations, see certificate IECEx KEM 05.0010

Maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max.

9.6 V

Maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max.

16 mA

Maximum values for connecting terminals for gas group IIC — Po (power output), max.

38 mW

Maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max.

3.6 µF

Maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max.

110 mH

Between different circuits

60 V DC/30 V AC

IP degree of protection

IP30

CE mark

CE 0344

UKCA mark

DEKRA 21UKEX0084 Importer UK: Siemens plc Manchester M20 2UR

CULus

LISTED E334384

FM approval

CLASSIFIED 3025852

INMETRO certificate

UL-BR 12.0068

Use in hazardous areas — ATEX marking

II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb I M2 Ex ib [ia] I Mb

Use in hazardous areas — ATEX certificate

KEMA 04 ATEX 1248

Use in hazardous areas — IECEx

IECEx KEM 05.0010

Use in hazardous areas — CCC Ex

2020322310002637

Use in hazardous areas — EAC Ex

PB Ex ib [ia] I Mb 1Ex ib [ia Ga] IIC T4 Gb [Ex ia Da] IIIC

Use in hazardous areas — FM marking

Class I, Zone 1 AEx ib [ia] IIC T4 Ex ib IIC T4 NI, Class I, DIV.2, GP. A,B,C,D T4 AIS, Class I, DIV.1, GP. A,B,C,D T4 DIP Class II, III, GP. E,F,G

Use in hazardous areas — Explosion protection category for gas

ATEX gas explosion protection, Zone 1

Use in hazardous areas — Explosion protection category for dust

ATEX dust explosion protection, Zone 21 always install in corresponding enclosure

Design of electrical connection

Screw/spring-type terminal

Dimensions — Width

30 mm

Dimensions — Height

129 mm

Dimensions — Depth

136.5 mm

Weight, approx.

255 g

Voltage type (supply voltage)

DC

Type of voltage (input voltage)

DC

Type of digital output

None

Degree of protection (IP)

IP30

Type of electric connection

Screw-/spring clamp connection

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 2D

Width

30 mm

Height

129 mm

Depth

136.5 mm

Country of origin

Germany

HS Code

8538.90
