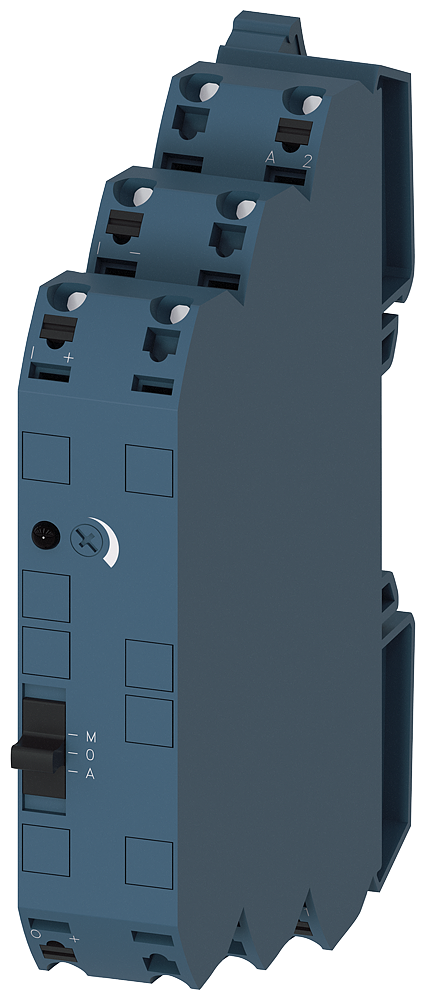

Siemens 3RS7025-2FE00 Signal Converter Man/Auto 24V AC/DC 3-Way Isolated
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RS7025-2FE00 is a 3-way isolated signal converter with manual/automatic mode selection and 24 V AC/DC supply. Inputs accept 0-10 V and 0/4-20 mA; outputs deliver 0-10 V and 0/4-20 mA into 500 ohm loads. Single-channel built-in device, 17.5 mm width, DIN-rail mounted with spring-clamp connections and rated IP20. Country of origin Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 3RS7025-2FE00
- EAN / GTIN
- 4047621001326
- Sales unit
- pcs
- Voltage
- 24 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 0 V ... 10 V
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Number of channels
- 1
- SIL according to IEC 61508
- None
- Height
- 93 mm
- Width
- 17.5 mm
- Depth
- 75 mm
- Power consumption
- 0.5 W
- Load
- 500 Ohm
- Load influence
- 0 %
- Temperature drift
- 0.015 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Spring clamp connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4047621001326
- SAP 1000790548
- Code 81402325
Product Documentation
