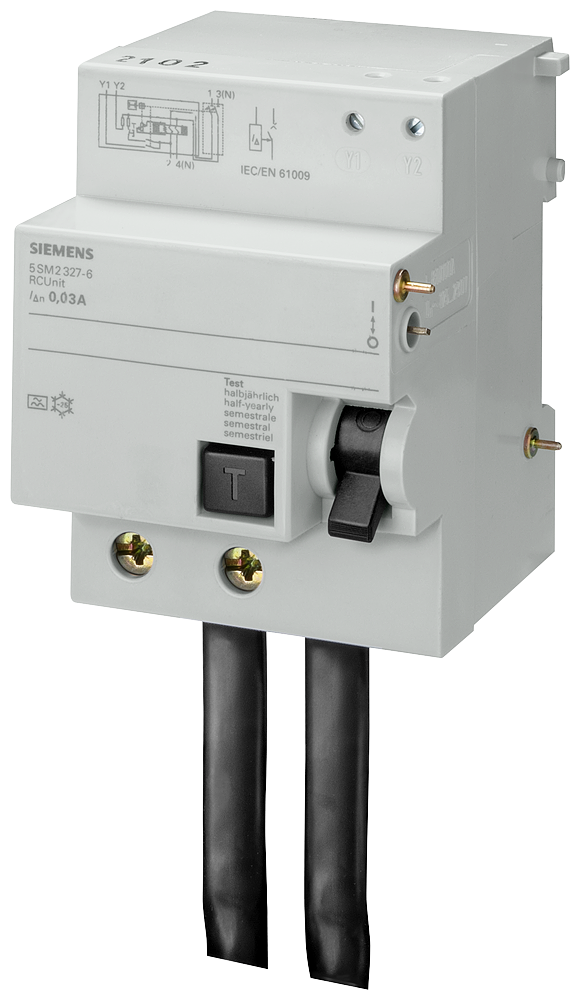

Siemens 5SM2327-6 RC Unit for 5SP4 Miniature Circuit Breaker — 2-Pole, Type A, in 100 A, 30 mA, 230 V AC

The Siemens 5SM2327-6 is a SENTRON 5SM2 RC unit — a residual current (RCD) block that clips directly onto a Siemens 5SP4 miniature circuit breaker. The assembled pair works as a combined residual-current and overcurrent protective device to DIN EN 61009-1, so one device gives both protection against electric shock and earth-fault fire and the line protection of the MCB behind it. This version is Type A: it detects sinusoidal AC residual currents and pulsating DC residual currents, which is the type required for circuits feeding electronic loads. It is 2-pole, rated 100 A at 230 V AC, with a rated residual current of 30 mA. It suits 5SP4 miniature circuit breakers rated 80/100 A. Device depth is 70 mm. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

5SM2327-6

EAN / GTIN

4001869144092

Sales unit

pcs

Voltage

230 V

Nominal voltage

230 V

Nominal current

100 A

Rated fault current adjustable

No

Rated fault current

30 mA

Delay adjustable

No

Number of poles

2

Leakage current type

A

Surge current capacity

4000 kA

Frequency

50 Hz

Rated insulation voltage Ui

460 V

Rated impulse withstand voltage Uimp

1 kV

Connectable conductor cross section solid-core

6–50 mm²

Connectable conductor cross section multi-wired

6–50 mm²

Anti-nuisance tripping version

Yes

With interlocking device

No

Degree of protection (IP)

IP20

Pollution degree

2

Ambient temperature during operating

-25–45 °C

Country of origin

Czechia

Product family

SENTRON 5SM2 RC unit (add-on residual current device)

Residual current type

Type A (sinusoidal AC and pulsating DC)

Rated residual current (IΔn)

30 mA

Tripping characteristic

Instantaneous

Suitable for

Siemens 5SP4 miniature circuit breakers, 80/100 A

Device depth

70 mm

Standard

DIN EN 61009-1 (combined with MCB)

HS Code

8536.20
