Siemens Motor protection circuit breaker 0 3RV2411-0HA10
Pricing
Request a quote
We reply within 24 hours
Product Description

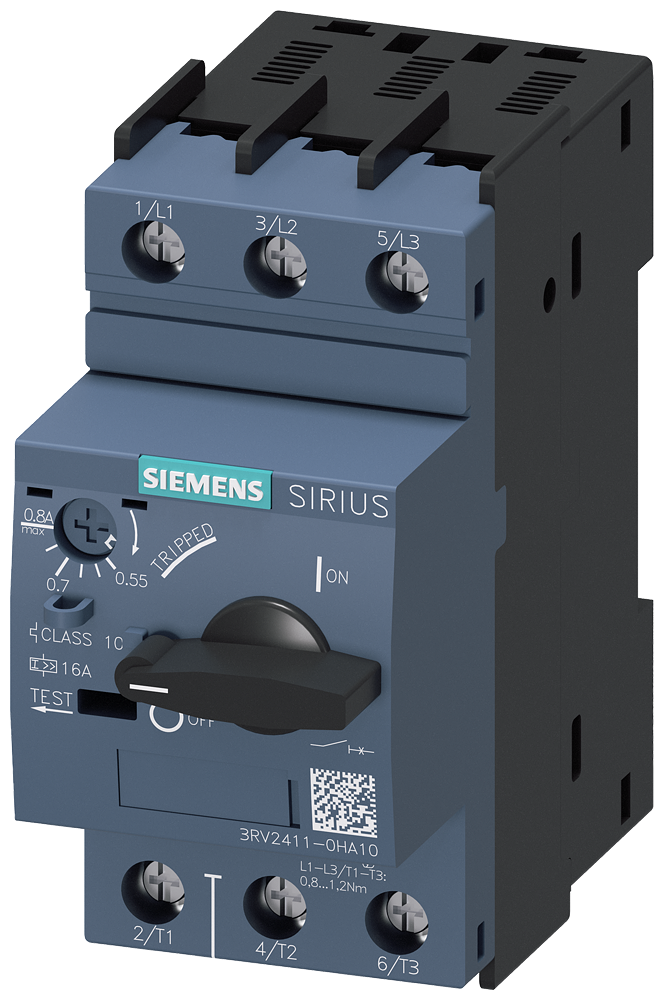

Siemens 3RV2411-0HA10 Motor protection circuit breaker 0.55-0.8A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2411-0HA10
- EAN / GTIN
- 4011209712638
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 97 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 0.2 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 0.8 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 0.55–0.8 A
- Power loss
- 7.25 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 0.1 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 100 kA
- Adjustment range undelayed short-circuit release
- 16 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209712638
- SAP 1000097918
- Code 8895723
Product Documentation
More from Siemens
Siemens

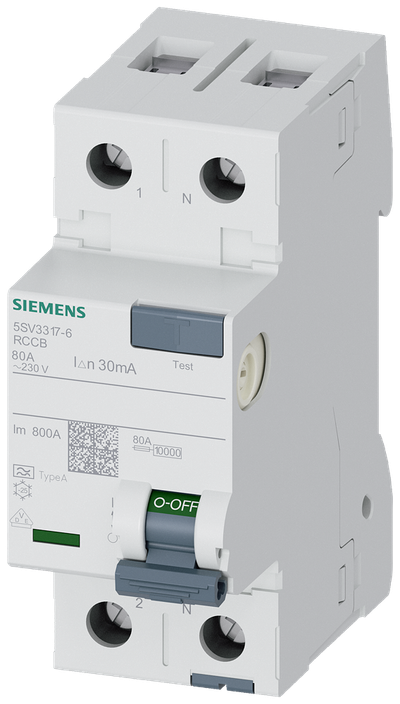

Siemens Residual current circuit breaker, 2-Pole, type A, In: 80 A, 30 mA, Un AC: 230 V
5SV3317-6
Siemens
Siemens Plug-in rail H: 1800 mm
8PQ3000-0BA83
Siemens

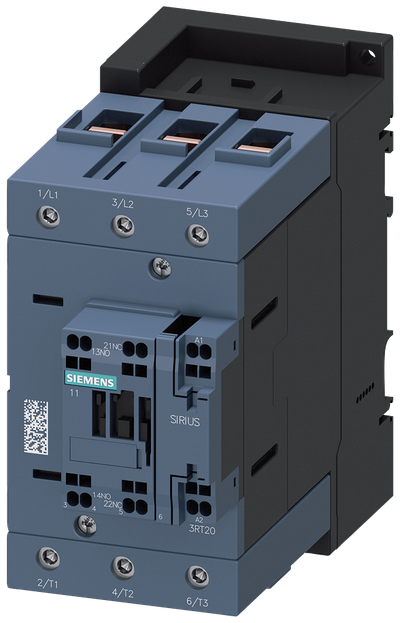

Siemens Contactor, AC-3 45 kW/400 V, AC 110 V, 50 Hz, 3-Pole, SIZE S3
3RT2046-3AF00
Siemens

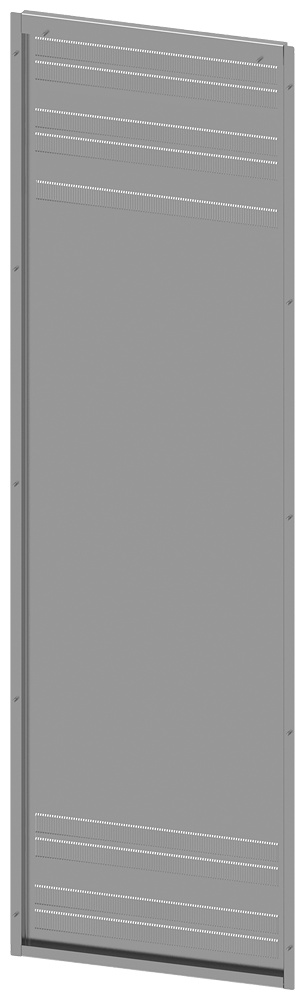

Siemens Rear panel IP40, W: 600 mm
8PQ2420-6BA02
Siemens

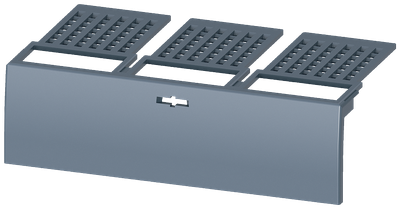

Siemens SENTRON 3VA9163-0KB03 — Base terminal cover, 3-Pole, 3VA20 / 3VA21 / 3VA22
