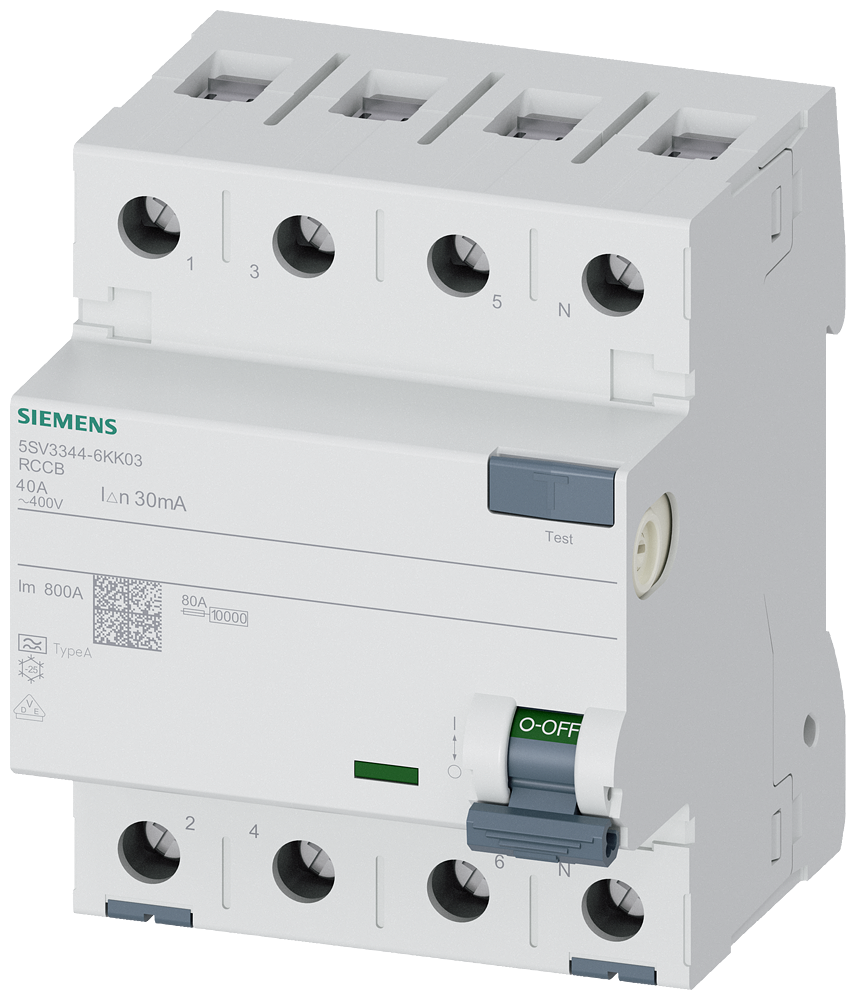

Siemens Residual current circuit breaker, 4-Pole, type A, In: 40 A, 30 mA, Un AC: 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV33446KK03 Residual current circuit breaker, 4-pole, type A, In: 40 A, 30 mA, Un AC: 400 V.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV33446KK03
- EAN / GTIN
- 4001869430546
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 400 V
- Rated current
- 40 A
- Number of poles
- 4P
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Rated fault current
- 30 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869430546
- SAP 1000792106
- Code 81406975
Product Documentation
