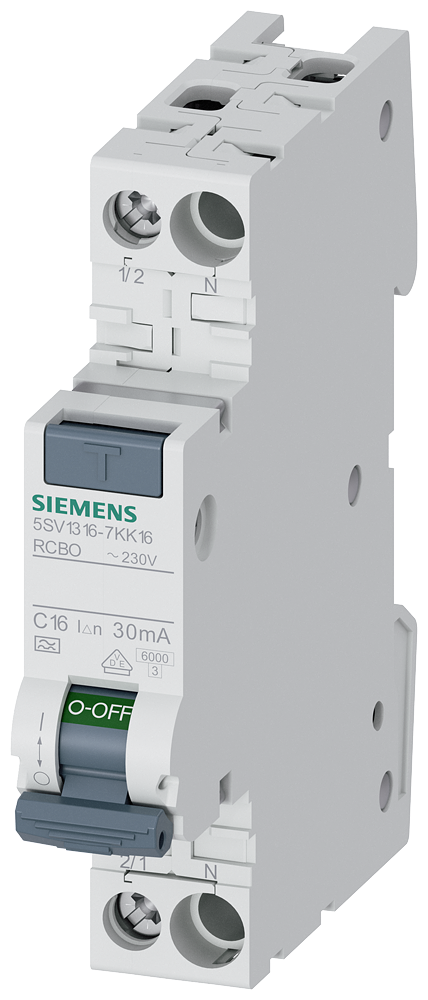

Siemens Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30 mA C16
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV1316-7KK16 Residual current circuit breaker with overcurrent TN 6 kA,18mm, 30 mA C16.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV1316-7KK16
- EAN / GTIN
- 4001869557892
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Breaking capacity
- 6 kA
- Power loss
- 3.4 W
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 250 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 16 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 1 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–45 °C
- Width in number of modular spacings
- 1
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 0.75–16 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- Yes
- Mounting method
- DIN rail
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869557892
- SAP 1200178028
- Code 82214179
