Siemens SENTRON 5SY7450-7 Miniature Circuit Breaker 4-Pole C50A 15KA
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens SENTRON 5SY7 miniature circuit breaker, ordering number 5SY7450-7. 4-Pole DIN-rail MCB with C tripping characteristic (5–10 × In), rated current 50 A, rated voltage 400 V AC, rated short-circuit breaking capacity 15 kA to IEC/EN 60898-1. Thermal-magnetic overcurrent and short-circuit protection for final and sub-distribution circuits. Terminal capacity 0.75–35 mm², tightening torque 2.5–3 Nm, mounting depth 70 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SY7450-7
- Series
- Siemens SENTRON 5SY7
- Type
- Miniature circuit breaker (MCB), DIN rail (35 mm)
- Number of poles
- 4-Pole
- Rated current (In)
- 50 A
- Tripping characteristic
- C (5–10 × In)
- Rated voltage (Ue)
- 400 V AC
- Rated short-circuit breaking capacity (Icn)
- 15 kA
- Standards
- IEC/EN 60898-1, IEC/EN 60947-2
- Terminal capacity
- 0.75–35 mm²
- Terminal tightening torque
- 2.5–3 Nm
- Mounting depth
- 70 mm
- EAN / GTIN
- 4001869191546
- HS code
- 8536.20
- Sales unit
- pcs
- Package quantity
- 3 pcs
Standards & Compliance
- Standard
- Siemens SENTRON 5SY7
- HS Code
- 8536.20
Cross References
- EAN 4001869191546
- SAP 1000016945
- Code 8141133
Product Documentation
More from Siemens
Siemens
Siemens Alpha 400 Din, Quick Mounting Set for Installation mount 8GK4001-4KK22
Siemens
Siemens ALPHA 630 DIN, lasker for sammenconnection of traverser, depth = 250/320mm (1 SET = 4 pcs)
8GK9910-0KK32
Siemens
Siemens 7LF5301-7
Siemens
Siemens Residual current circuit breaker F 80/2, torque 2,5-3,0 Nm, conductor cross-section 1-35 MM2 5SV36173
Siemens
Siemens Contactor Relay, 6NO+2NC, AC 230V, 50/60Hz, Size S00, Spring Terminal Connection
3RH2262-2AP00
Siemens
Siemens SITRANS pressure transmitter 7MF1567-3CD00-1AA1
Siemens
Siemens Alpha 630 Din, Floor Cabinet Including Plinth Colour Ral 7035, IP55, SK1, H=1900 B=1300 D=250
8GK1323-8KN53
Siemens

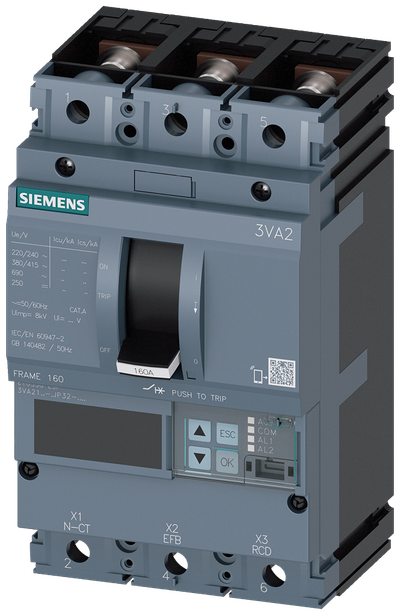

Siemens MCCB_3VA21_3P_55KA_ETU550,LSI,IN=160A,IR=64A-160A,ISD=0,6-10XIN,II=1,5-10XIN,B
